SHANTUI 7 T Ton Forklift With Chinese Engine

SHANTUI 7 T Ton Forklift With Chinese Engine thumbnail-1
SHANTUI 7 T Ton Forklift With Chinese Engine photo-1
US$ 18500.00 - 19000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Contact Supplier Request Quote Chat Now
Shandong Volin Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHANTUI
Model Number SF70
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 7000kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1220mm
Fork Width 150mm
Overall Dimensions 4840x1995x2500mm
Certification ISO9001/ISO14001/CE
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Advantages

Shantui 7.0Ton diesel forklift (SF70)equipment with China  engine Chaochai 6102BG, hydraulic transmission,double oil pump,hydraulic assisted steering,front double tires.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.





Engine
Model
       CHAOCHAI 6102BG

Rated Output
                     81/2500
Kw/rpm
Rated Torque
                    353/1700
N·m/rpm
No.of cylinder
                            6

Bore×stroke
                   102×118
mm
Displacement
                           5.795
L


Dimensions
Lifting Height
                        3000
mm
LxWxH(With/Without Fork)
4840(3620)x1995x2500
mm
Turning radius
3250
mm
Mast tilt angle(F/R)
6/12
Degree


Performance
Travel speed(full load/no load)
20/25
Km/h
Lift speed (with /without) load
400/500
mm/sec
Max.gradeability
20
%
Self weight
9400
Kg


Wheel&tires
Front
8.25-15-14PR

Rear
8.25-15-14PR

Wheelbase
2250
mm
Min.ground clearance(mast)
200
mm
Detailed Images

China CHAOCHAI Engine.

China engine. high performance to price ratio. Easy to maintain

Automatic Transmission.

Equipment with powershift transmission,two gear forward,1 rear,Easy operating.

Conventient Maintenance.

The engine hood canbe self locked,when you maintenance the forklift,just open it.

Double Oil Pump.

To keep the hydraulic system working at the best condition,using a double oil pump.

Good quality Hydraulic Valve.

Choose the best Hydraulic Valv supplier in China.

LED Displaly Instrument.

Easy reading LED instrument,you can get the information of oil temperature,fuel level,working hours.

Working Performance
Packing & Delivery
Shipping
By Container,3 sets per 40 feet high container,if mast over height,canbe shipment by Ro-Ro Ship.
Packing
Nude Packing,Four tires fixed
No. of packets
Forklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement
18CBM
Weight
9400KGS
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Related Products

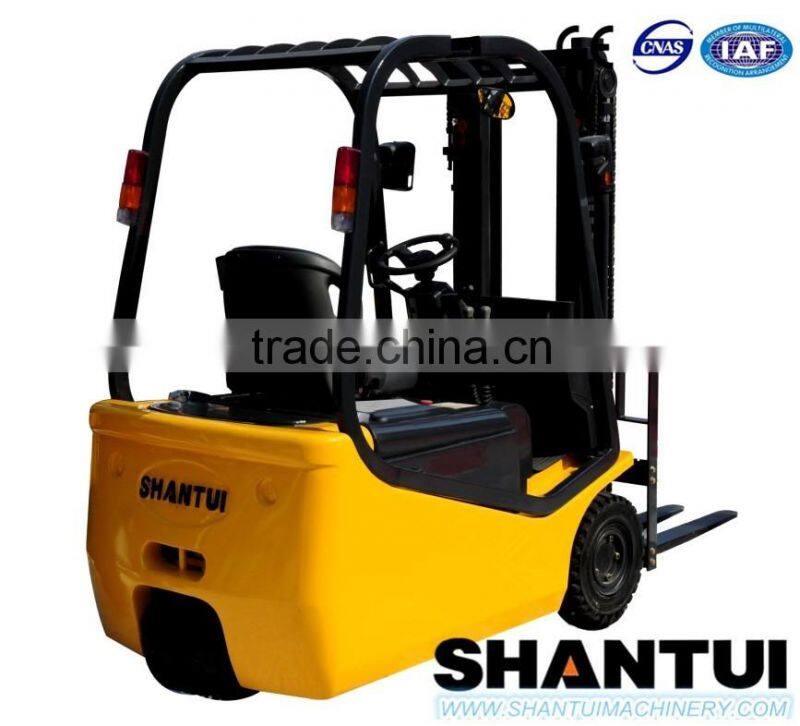

3 wheel electric forklift
