Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift

Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift thumbnail-1
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift thumbnail-2
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift thumbnail-3
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift thumbnail-4
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift photo-1
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift photo-2
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift photo-3
Material Handling Equipment 3Ton Diesel Forklift With ISUZU C240 Engine CPCD30 Forklift photo-4
US$ 1 - 14,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SHANTUI
Contact Supplier Request Quote Chat Now
Shandong Volin Heavy Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name SHANTUI
Model Number SF30
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 3000kg
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1070mm
Fork Width 125mm
Overall Dimensions 3762x1226x2140mm
Certification ISO9001/ISO14001/CE
After-sales Service Provided Engineers available to service machinery overseas


Product Advantages

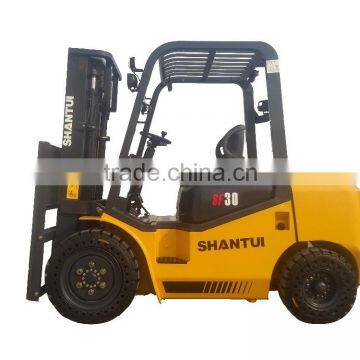

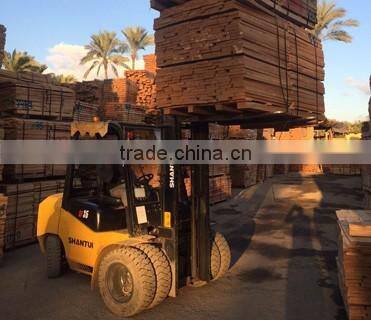

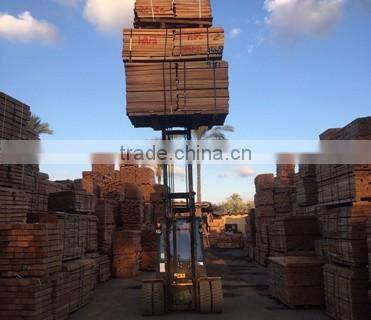

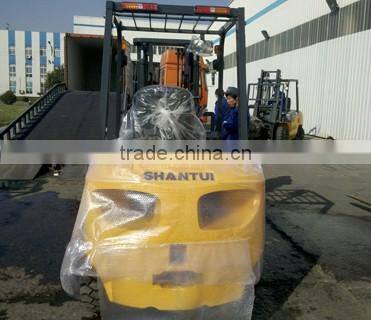

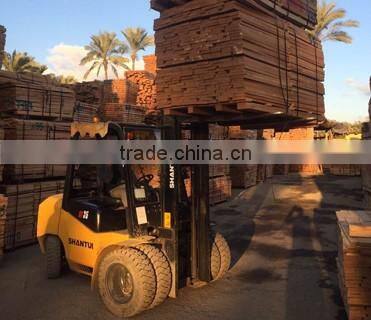

Shantui 3.0Ton diesel forklift (SF30)equipment with Original Japanese ISUZU C240 or 4JG2 engine, hydraulic transmission,USA EATON hydraulic assisted steering valve,SHIMADZU oil pump,full suspension chassis.It is widely used to handing all kinds of goods,such as pallet,steel,brick etc.Shantui has cooperated with KOMATSU more than 30 years,all the product was made under KOMATSU standard.





Engine
Model
ISUZU C240

Rated Output
34.5/2500
Kw/rpm
Rated Torque
139/1800
N·m/rpm
No.of cylinder
4

Bore×stroke
86×102
mm
Displacement
2.369
L


Dimensions
Lifting Height
3000
mm
LxWxH(With Fork)
3762x1226x2140
mm
Turning radius
2400
mm
Mast tilt angle(F/R)
6/12
Degree


Performance
Travel speed(full load/no load)
19/20
Km/h
Lift speed (with load)
460
mm/sec
Max.gradeability
20
%
Self weight
4350
Kg


Wheel&tires
Front
28×9-15-14PR

Rear
6.50-10-10PR

Wheelbase
1700
mm
Min.ground clearance(mast)
110
mm

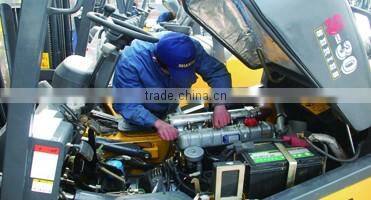

Original ISUZU C240 Engine.

Europe stage Ⅲ A Emission Standards Low Noize,Low pollution,Made in Japan.34.5KW/2200RPM

Automatic Transmission.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Key off.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Metal pedal.

Two-side designed, metal material, stable and durable.

Engine Hood.

Easy to open, convenient for mainterance.

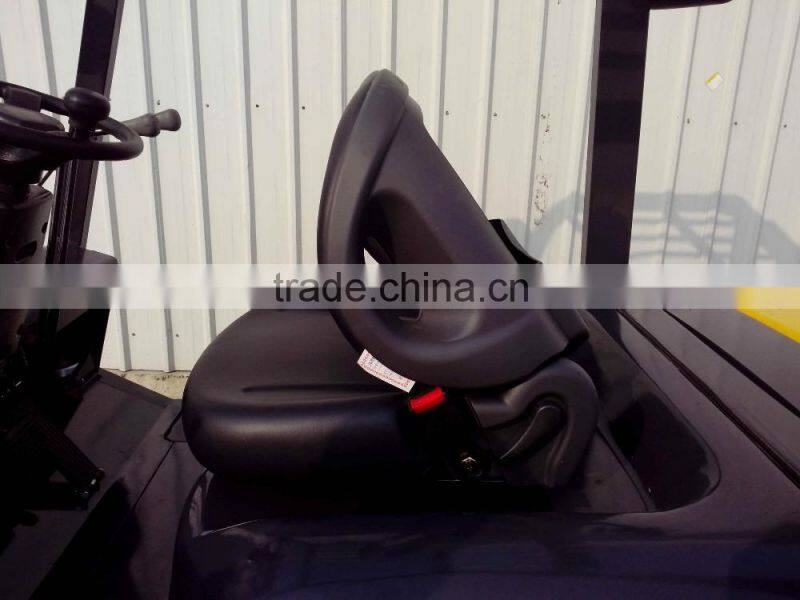

Luxury seat with belt.

Suspension seat with safe belt. Safety, comfortable, and adjustable

Pre-air cleaner.

Better protect the machine from bad air condition. Sand, dust are not problems.

Inside layout.

Tidy inside layout, the wiring harness layout is in good order, convenience for recognize and maintain.

Battery.

Side designed battery. Easy to maintain.



Shipping

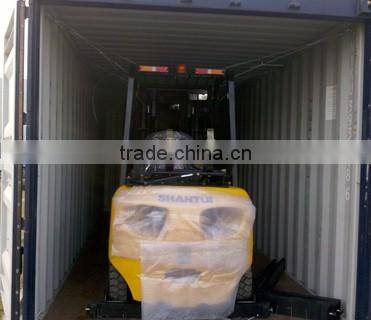

By Container,2 sets per 20 feet container,5 sets per 40 feet container.

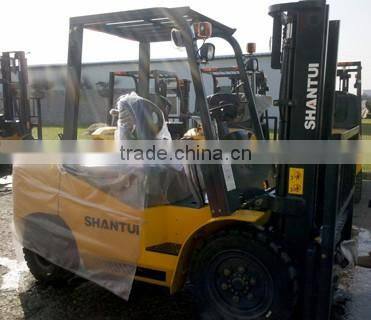

Packing
Nude Packing,Four tires fixed
No. of packets
Forklift    1  set            Fork     2   pcs.                Tool box   1 Set
Measurement
9.7CBM
Weight
4350KGS


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
