Specifications

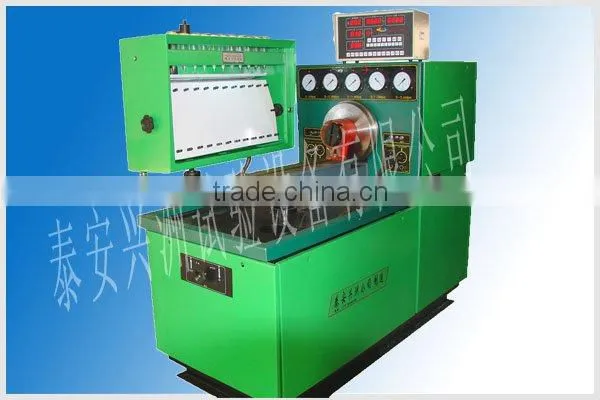

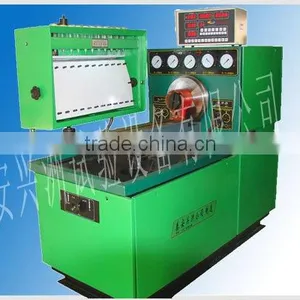

12PSB-C Diesel fuel injection pump test bench is in a high quality and a reasonable price.Output power(KW): 7.5/11/15/18.5/22ectGPS600 diesel fuel injection pump test bench
FUNCTIONS
1 Testing 12-cylinder fuel injection pump.
2 Measuring each cylinder delivery at any speed.
3 Checking each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Checking the mechanical governor.
6 Checking the pneumatic governor.
7 Checking the vacuum capacity of governor.
8 Checking the pressure compensators(LDA).
9 Measuring the internal pressure of distributor pump body.
10 Testing the electromagnetic valve of distributor pump.
11 Checking transfer pump.
PARAMETERS
1 Output power(KW): 7.5/11/15/18.5/22Optional
2 Power supply:3-Phase)380V/50Hz (or on request)
3 Height of spindle centers:125mm
4 Graduated cylinder: 45CC or 150CC
5 Volume of fuel tank:60L
6 DC.Supply:12/24V
7 Feeding fuel pressure: Low:0-0.4Mpa High:0-4Mpa
8 Range of speed:+/-4000RPM
