Specifications
1.This is for testing Bosch, Delphi, Denso common rail injectors2. Injector driving signal - Adjustable frequency

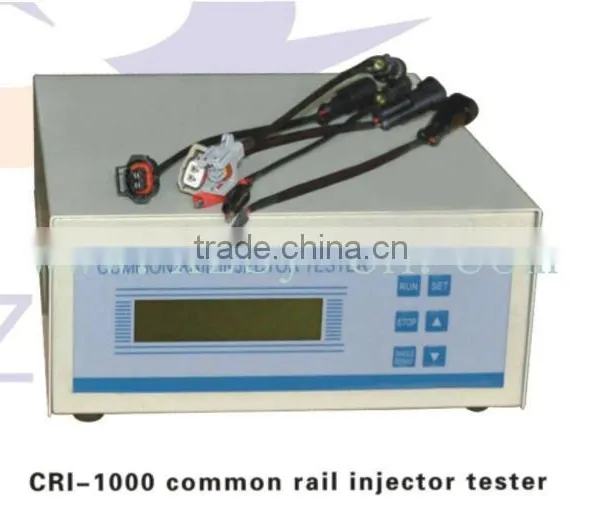

CRS-1000 Common rail injector tester,
This is for testing Bosch, Delphi, Denso common rail injectors. Including all standard accessories
Common rail injector tester, for testing Bosch, Delphi, Denso common rail injector
The repair tester for Common Rail Injector simulates the outputs of an Engine Control Unit (ECU), by providing fuel injection control signals, of which the parameters may be set by a user, to drive the solenoid of a common rail injector.
The CR injector is fed by a high pressure fuel source, which may be a mechanical manual pump or an electrical motor driven pump or a pneumatic driven pressure booster. Such a test device will fulfill the tasks of checking nozzle spray pattern, injector back leakage and solenoid condition.
Design Features
1. Modulated driving signal to ensure the safety of the solenoids of the injectors
2. Injector driving signal - Adjustable frequency and pulse width
3. Short circuit protection for solenoid driving signals
4. Rich accessories, ready to test Bosch, Denso and Delphi injectors
