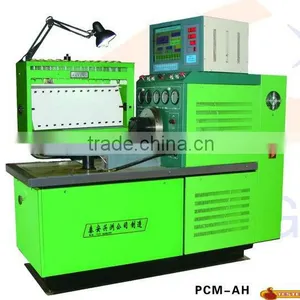

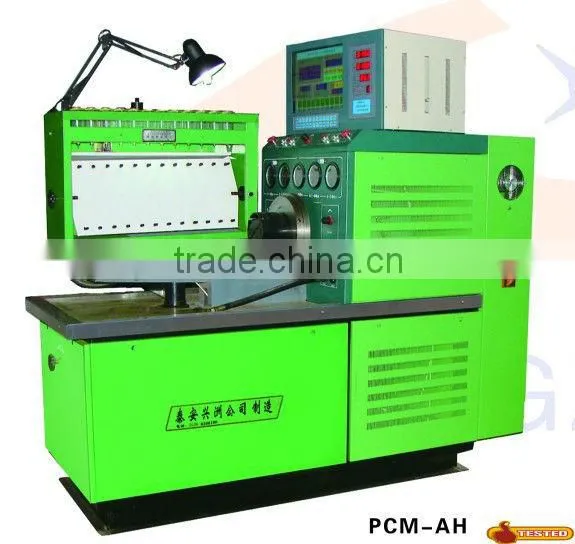

Help CenterFuel Injection Pump Test Bench------PCM-AH
Related Products
-
Fuel Injection Pump Test Bench-----PCM-E With LCDUS$ 2,900 - 4,000MOQ: 1 Set -
Traditional Fue Injection Pump Test Bench---GPS-916 With Digital ControllerUS$ 3,200 - 4,100MOQ: 1 Set
-
Fuel Injection Pump Test Bank-----PCM-E With LCDUS$ 2,900 - 4,000MOQ: 1 Set
-
Traditional Fue Injection Pump Test Bank---GPS-916 With Digital ControllerUS$ 3,200 - 4,100MOQ: 1 Set
-
Fuel Injection Pump Test Bank(digital Controller)12PSB-CUS$ 2,800 - 3,900MOQ: 1 Set
Specifications
1.output power:7.5kw,11kw,15kw,22kw.2.industrial computer
3.testing 12 cylinder pump.
4.Windows XP system
Diesel Fuel Injection Pump Test Bench(Displayed by LCD& digital)
FUNCTIONS
1 12-cylinder diesel fuel injection pump can be tested
2 Measure each cylinder delivery at any speed.
3 Check each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Check the mechanical governor.
6 Check the pneumatic governor.
7 Check the vacuum capacity of governor.
8 Check the pressure compensators (LDA).
9 Measure the internal pressure of distributor pump body.
10 Test the electromagnetic valve of distributor pump.
11 Check the transfer pump.
12. Can measure the reflux delivery of distributor pump.
13 Can check the advance angle of advance device.(OPTIONAL)
Features:
1.It has the temperature control function with the heating and cooling setting.
2.Two filters for cleaning the test fuel.
3.It adopts advanced frequency changing technology,stable performance,adjust the pump speed in a large range,low noise,save power energy.
4.LCD shows the pump speed,times and temperature..
5.With the 12V,24V DC electric source, for VE pump using DC power.
6.RPM setting, can set the pump speed freely.
7.With the high-pressure and low-pressure fuel system, can provide enough fuel and stable fuel supply,but also can test the pump sealing.
8.It has the positive and negative air pump, can provide the stable and adjusting air source.
9.VE pump chamber gauge and fuel return measuring.
10.Industrial computer operation.,windows XP operating system.
11.It adopts the more material for the steel board, longer service life.
Technical Parameters:
Output power |
7.5kw,11kw.15kw.8.5kw,22kw |
Power supply |
3-phase 380V/50HZ,3 phase-220V/50HZ |
Interaxe height |
125mm |
graduates |
45CC,150CC |
Tank volume |
60L |
DC supply |
12/24V |
Feeding fuel pressure |
Low 0--0.4Mpa, High 0--4Mpa |
Range of speed |
+/-4000RPM |
Control temperature |
40+/-2°C |
Filter accuracy |
5u |
Air pressure |
-50+300Kpa |
Size: |
2.4*1.2*2m |
Weight |
1200kg |
Display |
15” or 17” |
Package |
Wooden case |
