fuel injection pump test bank-----PCM-E with LCD

packing in wooden case
fittings for delivery

Specifications

1.Testing12-cylinder fuel pump
2.Output power 7.5kw/11kw/15kw/18.5kw/22kw
3.displayed by LCD and digital
4.CE certificate

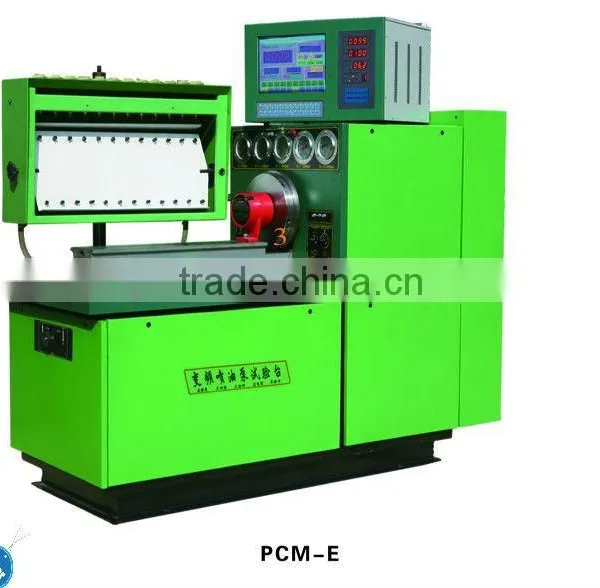

PCM-E Diesel fuel injection pump test bank (ce certificate)



Functions:
1 Testing 12-cylinder fuel injection pump.
2 Measuring each cylinder delivery at any speed.
3 Checking each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Checking the mechanical governor.
6 Checking the pneumatic governor.
7 Checking the vacuum capacity of governor.
8 Checking the pressure compensators(LDA).
9 Measuring the internal pressure of distributor pump body.
10 Testing the electromagnetic valve of distributor pump.
11 Checking transfer pump.
12 Measuring the reflux delivery of distributor pump body.







Features:

1, It adopts advanced frequency changing technology,stable performance,adjust the pump speed in a large range,low noise,save power energy.



2. LCD shows the pump speed,times and temperature..



3. With the 12V,24V DC electric source, for VE pump using DC power.



4. RPM setting, can set the pump speed freely.



5. With the high-pressure and low-pressure fuel system, can provide enough fuel and stable fuel supply,but also can test the pump sealing.



6. It has the positive and negative air pump, can provide the stable and adjusting air source.



7. VE pump chamber gauge and fuel return measuring.



8. Industrial computer operation.,windows XP operating system.







Technical Parameters:





Output power	7.5kw,11kw.15kw.8.5kw,22kw
Power supply	3-phase 380V/50HZ,3 phase-220V/50HZ
Interaxe height	125mm
graduates	45CC,150CC
Tank volume	60L
DC supply	12/24V
Feeding fuel pressure	Low 0--0.4Mpa, High 0--4Mpa
Range of speed	+/-4000RPM
Filter accuracy	5u
Air pressure	-50+300Kpa
Size:	2.3*1*1.9m
Weight	1000kg
Display	15” or 17”
Package	Wooden case
