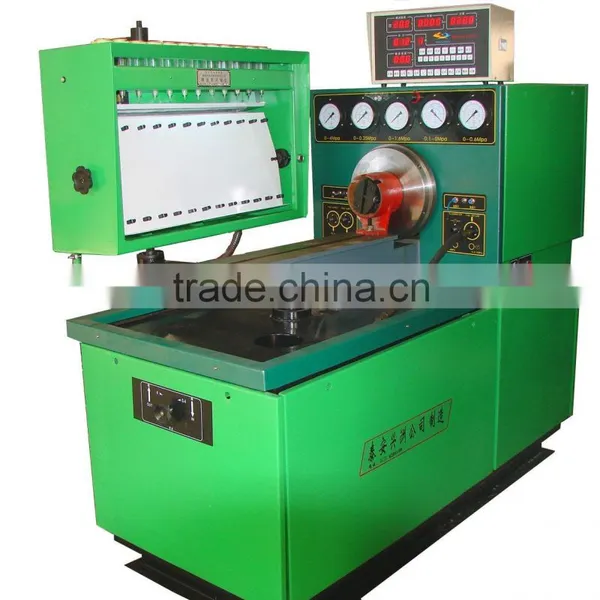

12PSB-C diesel fuel injection pump test bench

packing in wooden case

Specifications

12PSB-C diesel fuel injection pump test bench
easy to operate

12PSB-C diesel fuel injection pump test bench



FUNCTION

1 Testing 12-cylinder fuel injection pump.
2 Measuring each cylinder delivery at any speed.
3 Checking each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Checking the mechanical governor.
6 Checking the pneumatic governor.
7 Checking the vacuum capacity of governor.
8 Checking the pressure compensators(LDA).
9 Measuring the internal pressure of distributor pump body.
10 Testing the electromagnetic valve of distributor pump.
11 Checking transfer pump.
12 Measuring the reflux delivery of distributor pump body.(Optional)
13 Checking the advance angle of advance device. (Optional)
PARAMETERS:
1 Output power(KW): 7.5/11/15/18.5/22(Optional)
2 Power supply:(3-Phase)380V/50Hz (or on request)
3 Height of spindle centers:125mm
4 Graduated cylinder: 45CC or 150CC
5 Volume of fuel tank:60L
6 DC.Supply:12/24V
7 Feeding fuel pressure: Low:0-0.4Mpa  High:0-4Mpa
8 Range of speed:+/-4000RPM
9 Air pressure:-50 +300Kpa
