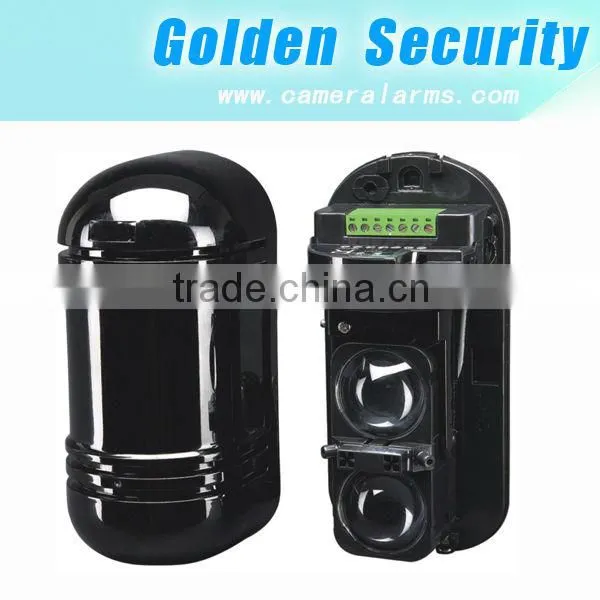

High-tech Black Color Out door Photoelectric Twn-Beam (2 beams ) Detectors distance 20/30/40/60/80/100m

Specifications

outdoor photoelectric beam detector
1.Easy to install
2.High quality
3.active IR detector

High-tech Black Color Out door Photoelectric Twn-Beam (2 beams ) Detectors distance 20/30/40/60/80/100m

Main features

• Indoor, Outdoor Use
• Tri- beam- Pulsed Infrared, Sealed Optics
• Variable Beam Interruption Time
• -25 degrees Fahrenheit to 55 degrees Fahrenheit Operation
• DC 13.8V to 24V
• Includes Wall/Pole Mounting Hardware

• Specifications


  4-beam
  1.Easy to install
  2.active IR detector
  3.infrared barrier beam




  unique   infrared beam four beam Detector



  >>>>Main features

  1. Wired and bus system compatible, holographic spot real-time report
  2. Use the spherical high precision optical lens.
  3. Adopts DSP chip, patented multi-dimensional mistake-corrective code, true detection alarm technology
  4. The digital ambiguous artificial intelligent recognition: four band frequency and use the artificial intelligent ambiguous judgment reduce the false alarm rate to zero.
  5. Intelligent power emission. Adjustment the emission power of the beams automatically, it prolong the tubes longevity and reduce the power consumption.
  6. Green environment protection: with the controllable function display, after test, closes the display; it can save power a lot.
  7.two sets of independence precession mini adjustment inner build optical aiming lens.
  8. Special removing receiver, the large power emitter.
  9. Full function of self diagnose, environment self adjustment





  Technical Parameter:







  Model                        ABT-20   ABT-30    ABT-40    ABT-60  ABT-80   ABT-100

  alertness distance:  20m          30m         40m          60m       80m        100m



  Beam:                    2beams IR detector



  light source:             Digital pulse infrared



  Induction rate:         35-700ms



  Alarm output - conventional: NC & NO  contact the capacity of AV / DC 30V/0.5A



  Alarm output - Bus: MA Bus  type constant current carrier



  Working Voltage:  DC 13.8-24V; AC 11-18V



  Current:                      60mA           60mA       60mA       60mA



  Long-life mode:           30mA           30mA       30mA       30mA



  Temperature:  -25 - 55 centigrade



  The use of humidity:  5% -95% (RH)



  visibility: ≥ 5m



  Tamper output : NC   contact the capacity of AV / DC 24V/0.5A



  Adjust the level of the angle:  180 ° (± 90 °)



  Adjust the vertical angle: ± 10 °



  Case Material:  German PC

•
•
