Specifications
outdoor photoelectric beam detector1.Easy to install
2.High quality
3.Out door beam detector

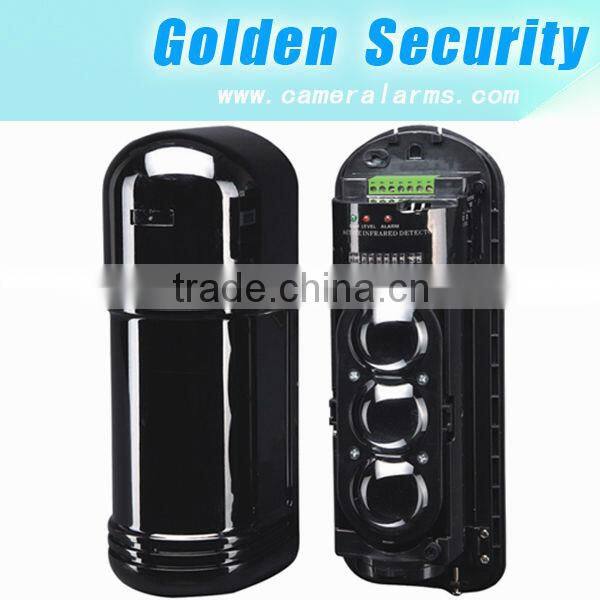

New &Popular out door Photoelectric Tri-Beam (3 beams ) Detectors with true detection alarm technology
Main features
- Indoor, Outdoor Use
- Tri- beam- Pulsed Infrared, Sealed Optics
- Variable Beam Interruption Time
- -25 degrees Fahrenheit to 55 degrees Fahrenheit Operation
- DC 13.8V to 24V
- Includes Wall/Pole Mounting Hardware
-
Specifications
4-beam
1.Easy to install
2.active IR detector
3.infrared barrier beamunique infrared beam four beam Detector
>>>>Main features
1. Wired and bus system compatible, holographic spot real-time report
2. Use the spherical high precision optical lens.
3. Adopts DSP chip, patented multi-dimensional mistake-corrective code, true detection alarm technology
4. The digital ambiguous artificial intelligent recognition: four band frequency and use the artificial intelligent ambiguous judgment reduce the false alarm rate to zero.
5. Intelligent power emission. Adjustment the emission power of the beams automatically, it prolong the tubes longevity and reduce the power consumption.
6. Green environment protection: with the controllable function display, after test, closes the display; it can save power a lot.
7.two sets of independence precession mini adjustment inner build optical aiming lens.
8. Special removing receiver, the large power emitter.
9. Full function of self diagnose, environment self adjustmentTechnical Parameter:
Model ABE-50 ABE-100 ABE-150 ABE-200 ABE-250
alertness distance: 50m 100m 150m 200m 250m
Beam: 3 beams IR detector
light source: Digital pulse infrared
Induction rate: 35-700ms
Alarm output - conventional: NC & NO contact the capacity of AV / DC 30V/0.5A
Alarm output - Bus: MA Bus type constant current carrier
Working Voltage: DC 13.8-24V; AC 11-18V
Current: 60mA 60mA 60mA 60mA
Long-life mode: 30mA 30mA 30mA 30mA
Temperature: -25 - 55 centigrade
The use of humidity: 5% -95% (RH)
visibility: ≥ 5m
Tamper output : NC contact the capacity of AV / DC 24V/0.5A
Adjust the level of the angle: 180 ° (± 90 °)
Adjust the vertical angle: ± 10 °
Case Material: German PC
