PCM-AH high quality bossch diesel fuel injection pump test bench
- 1200 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal
- PCM-AH high pressure common rail injector/pump test bench
- GPS916 bosch model diesel fuel injection pump test bench stand bank Quality Choice
- 2016 top quality factory supply bossch model electirc diesel injection pump test bench
- 2016 factory supply high quality diesel injection pump test bench
- PCM-AH factory supply bosch diesel fuel injection pump test bench stand bank Quality Choice
- diesel fuel injection pump test bench/stand/bank-high quality test bench
Product Details
Place of Origin: | Shandong, China | Brand Name: | XINGZHOU | Model Number: | PCM-AH |
Power: | Electronic | Usage: | Auto Testing Machine |
Packaging Details
WOODEN CASE WITH FITTINGS
Product Description

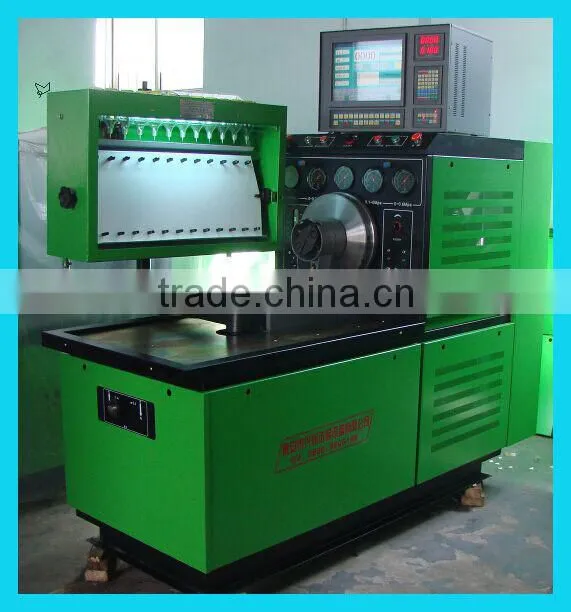

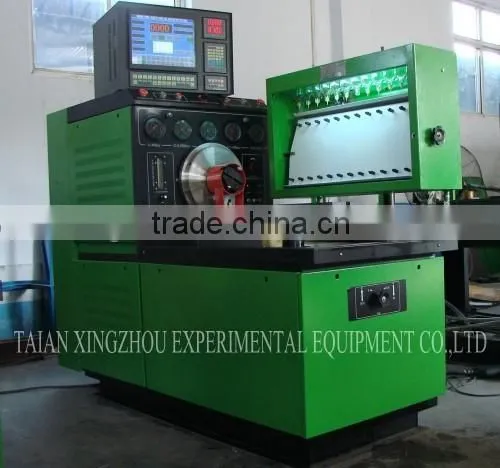

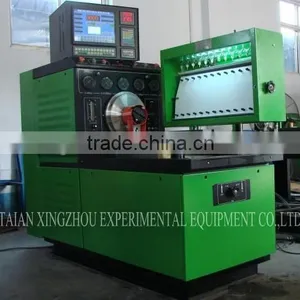

High Quality Bosch Diesel Injection Pump Test Bench PCM-AH
>>>>Specifications:
PCM-AH diesel injection pump test bench is similar to Bosch bench model 619. High quality and good working performence, is the good assist for you to test pumps.
>>>>Funtions:
1 12-cylinder diesel fuel injection pump can be tested
2 Measure each cylinder delivery at any speed.
3 Check each cylinder injection timing with static.
4 Checking the sealing injection pump body.
5 Check the mechanical governor.
6 Check the pneumatic governor.
7 Check the vacuum capacity of governor.
8 Check the pressure compensators (LDA).
9 Measure the internal pressure of distributor pump body.
10 Test the electromagnetic valve of distributor pump.
11 Check the transfer pump.
12. air pressure test of DC12/24V
13. force cooling function
14. heating function
>>>>Technical Parameters:
Voltage Supply | 3 phase 380v or 220v. or single phase |
Power Supply | 7.5kw,11kw,15kw,18.5kw or 22kw |
Interaxe Height | 125mm |
Graduates | 45/150cc |
Tank Volume | 60L |
DC Supply | 12/24v |
Feeding Fuel Pressure | Low 0~0.4MPA,High 0~4MPA |
Pump Speed | +/-4000RPM |
Temperuature Control | 40±2 degree |
Filter Accuracy | 5u |
Air Pressure | -50~300Kpa |
Cooling Function | Yes |
Test Cylinder | 12 |
Operation Languages | English/Russian/Chinese(Optional) |
Size | 2.2*1.1*1.8m |
Weight | 870kg |
>>>>Product Show:
>>>>Our Advantages:
1.About 15 year production experience, mature technological design and developing ensure us to offer customers high quality products of CE,ISO certificate
2.Factory manufacturer, save much middle deal cost, can offer you good service with competitive price.
3.Products has exported to many countries over the sea, enough business experience for customer on details such as payment and transportation!!!
so welcome to your inquiry!!!
Company Profile
Located at the foot of World famous Mountain Tai, Tai'an Xingzhou Experimental Equipment Co., Ltd. is one of the main manufacturers of testing equipment and calibration equipment.
Our products include EM and HT Series Diesel Fuel Injection Pump Test Bench, Common Rail Injector Test Bench, EDC Electronic Tester, Diesel Electronic Monomer Pump Test Bench, Nozzle Tester, and Tools for Pumps. They can meet the demands of different clients. Our company was established in 2002, developing fast and integrating the research, design and innovation. We have tremendous technical strength, advanced crafts, completed checking equipment, and perfect quality system, and we have established a good working relationship with some universities from at home and abroad.
Our products are sold all over China and exported to America, Europe, Russia, Brazil Argentina, Singapore, Mongolia, Austria and the Middle Asia.
