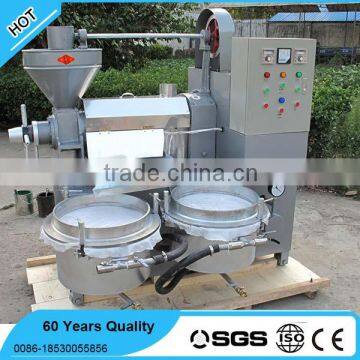

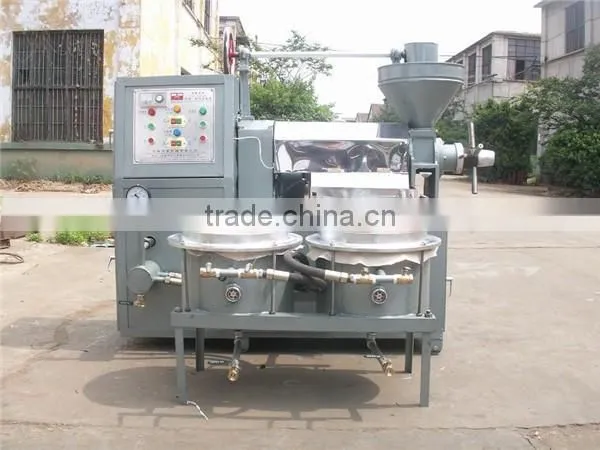

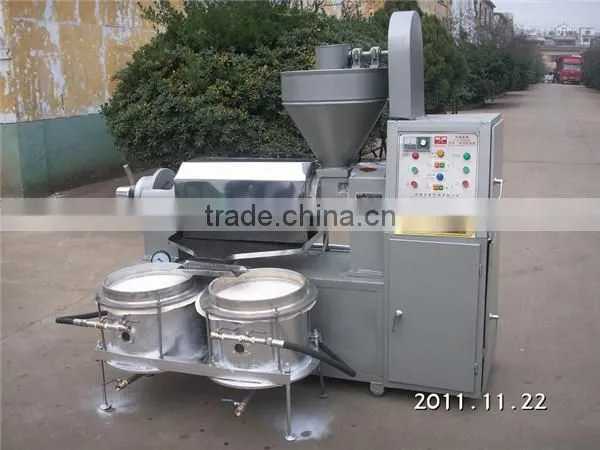

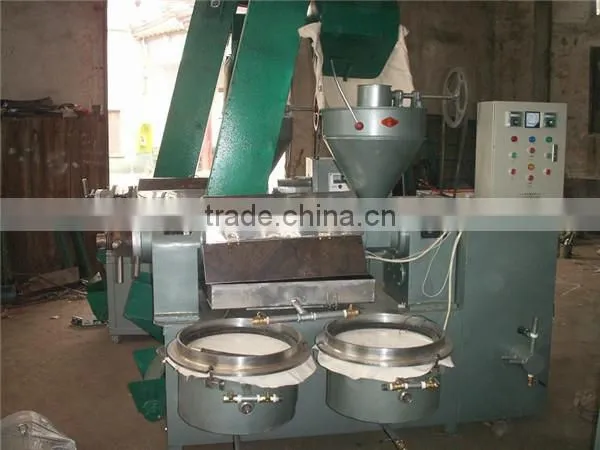

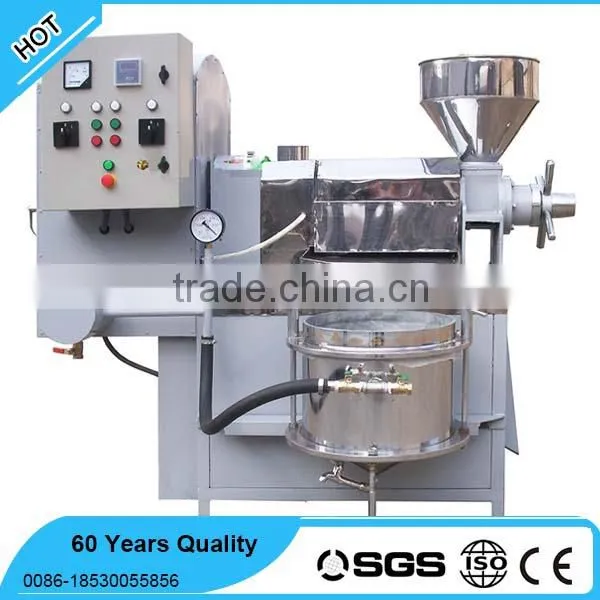

Lower consumption sesame oil expeller machine
1.More than 60 years cooking oil manufacturing experience
2.Have factory and professional engineers
3.Can Offer full production line, according to different oilseeds
4.Patents and CE,ISO,SGS
Materials
Brief Introduction of automatic oil expeller machine
1.The automatic screw oil expeller machine is composed of vacuum filtration system, automatic heating device and controlling system.
2. Some parts of the oil expeller will be preheated before pressing, such as the press chamber, press screw and press ring.
3. During pressing, the press will filter the oil in due time.
4. This machine is matched with one controlling cabinet box to control all working process of the machines.

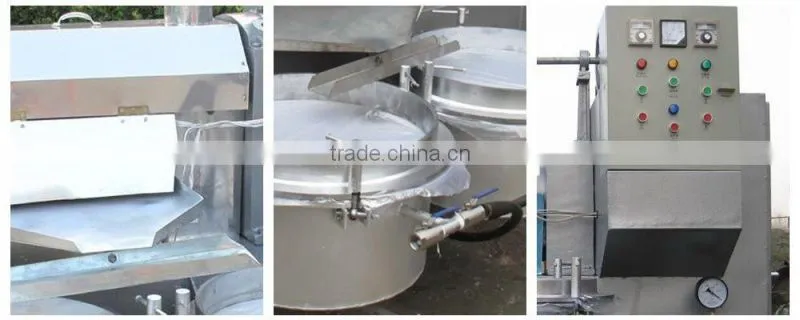

Main parts of automatic oil expeller machine
1. Screw oil expeller
2. Electrical element for heating chamber .
3. Vacuum filter for clean crude oil
4. Squeezing bolt
5. Heating ring.
Main Technical parameters of oil expeller machine
| Full-automatic Screw Oil Expeller Machine | ||||
| Model | Capacity(t/d) | Power(kw) | Dimension(mm) | Weight(kg) |
| 6YL-68A | 1-1.5 | 5.5kw+1.5kw | 1600*890*1500 | 370 |
| 6YL-80A | 2.5-3 | 5.5kw+1.5kw | 1800*1080*1600 | 700 |
| 6YL-95A | 3-5 | 7.5kw+1.5kw | 1800*1080*1600 | 900 |
| 6YL-100A | 4-7 | 7.5kw+1.5kw | 2000*990*1750 | 900 |
| 6YL-120A | 6-8 | 11kw+1.5kw | 2250*1100*1800 | 1000 |
| 6YL-130A | 9-15 | 18.5kw+1.5kw | 2500*1200*1900 | 1500 |
| 6YL-160A | 14-18 | 22kw+1.5kw | 2600*1180*1970 | 1800 |
| 6YL-180A | 15-20 | 30kw+1.5kw | 2600*1180*1970 | 2100 |
Flow Chart
Raw materials feeder : the raw materials can go to the oil press machine through the feeder .

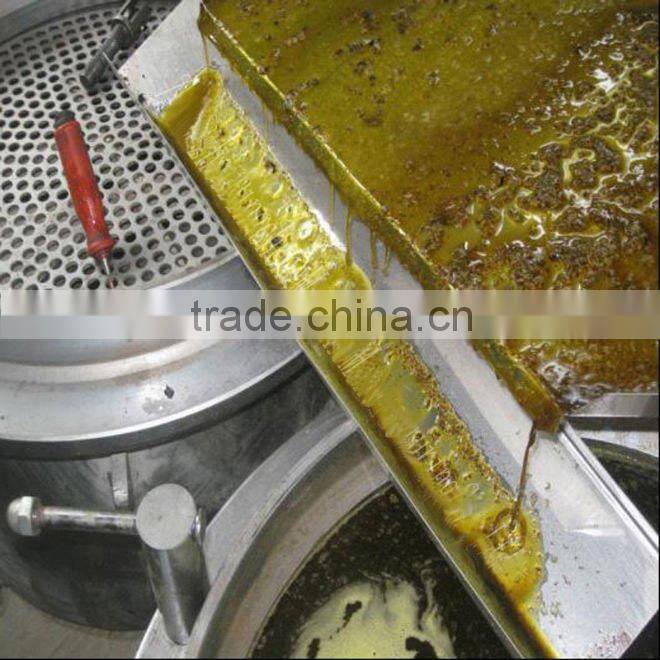

Vacuum filter : the crude oil go to the vacuum filter . In the filter , the pgysical impurities will be removed , which make the crude oil very clean and can be cooking directly .
Cake outlet : after the oil pressing section , the raw materials will be divided into two parts , one part is vegetable oil and the other part is raw materials cake . The cake can be used for animal feed
Control panel : in the control panel , there are several buttons . The heating system can make the temperature of pressing environment about 120 degree , which can make perfect pressing section working environment . When the temperature is higher than 120 degree , the heating system will be cut off automatically . The design of heating system can guarantee the service life of the oil press machine .
The hot oil press machine have been succeed export to: Thailand, Indonesia, Malaysia, South Korea, Japan, Russia, Nigeria, Morocco, Egypt, Algeria, Congo, Kenya, south Africa, Swaziland, Greece, French, Italy, Saudi Arabia, Iran, Georgia, Uzbekistan,Canada, America, Haiti, Brazil, Chile, Australia, New Zealand, Fiji, etc.
Trade terms: FOB, CIF, EXW
Payment terms: T/T, L/C, Western Union, Trade Assurance
Payment Condition: 30% deposit in advance, 70% balance after delivery
Packing: 20GP, 40HQ Container, wooden case for single press machine
Shipping: By sea and By Train
1. Semi-automatic Screw oil press machine
2. Full-automatic Screw oil press machine
3. Hydraulic oil press machine( used for cold press)
4. Palm oil press machine
5. Mini cooking oil refining machine unit
6. Oil production line/plant
10T TO 5000T/D Oil pretreatment and prepressing equipment/project
20T TO 5000T/D Oil extraction equipment/project
5T TO 1000T/D crude oil refining equipment/project
