Automatic machine oil filter types
1.More than 60 years cooking oil machine manufacturing experience
2.Have factory and professional engineers
3.Can Offer full set oil production line, according to different oilseeds
4.Patents and CE,ISO,SGS
Oilseeds scope: soybean, rice bran, peanut, sesame, sunflower seed, rapeseed, cottonseed, corn germ, copra, castor bean and so on.

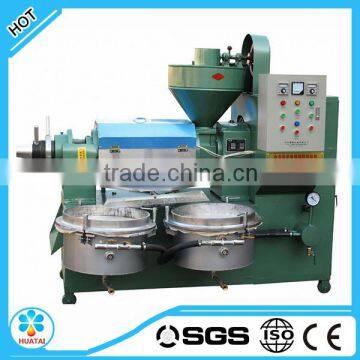

Automatic machine oil filter types

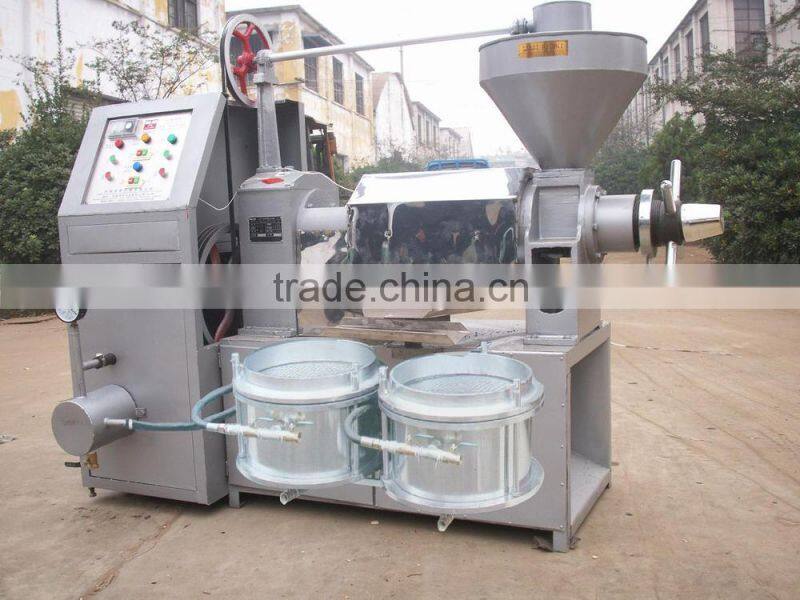

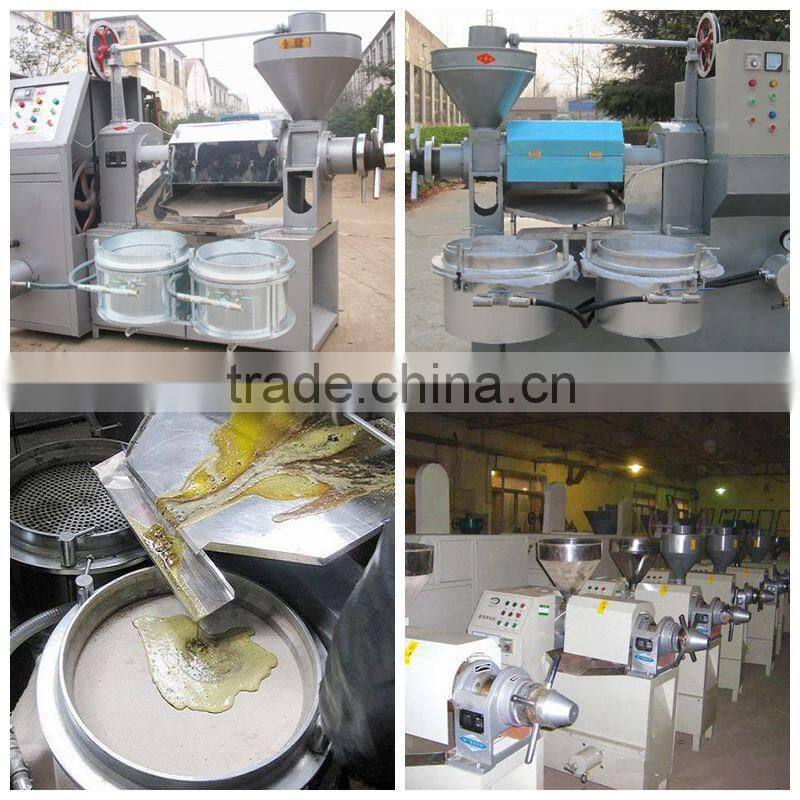

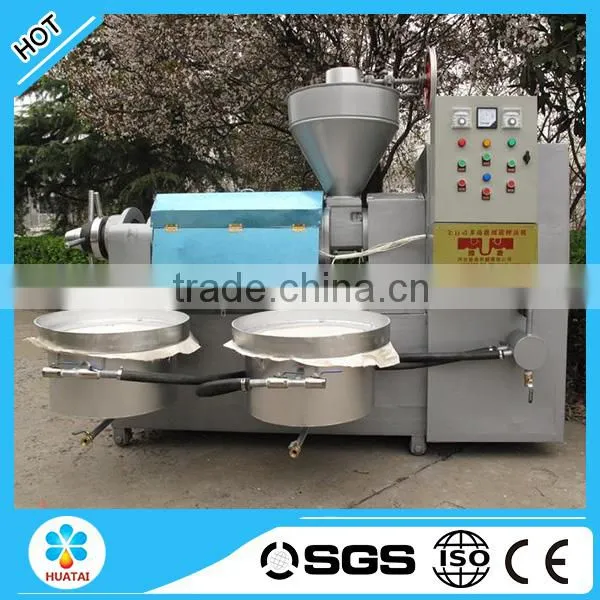

1.The automatic screw oil filter machine is composed of vacuum filtration system, automatic heating device and controlling system.
2. Some parts of the oil press will be preheated before pressing, such as the press chamber, press screw and press ring.
3. During pressing, the press will filter the oil in due time.
4. This machine is matched with one controlling cabinet box to control all working process of the machines.

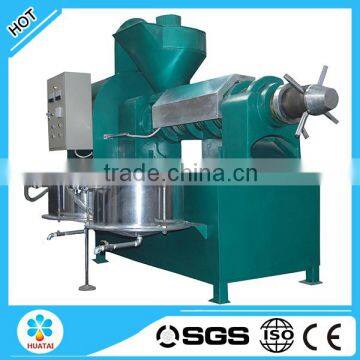

Full-automatic Screw Oil Press Machine | ||||
Model |
Capacity(t/d) |
Power(kw) |
Dimension(mm) |
Weight(kg) |
6YL-68A |
1-1.5 |
5.5kw+1.5kw |
1600*890*1500 |
370 |
6YL-80A |
2.5-3 |
5.5kw+1.5kw |
1800*1080*1600 |
700 |
6YL-95A |
3-5 |
7.5kw+1.5kw |
1800*1080*1600 |
900 |
6YL-100A |
4-7 |
7.5kw+1.5kw |
2000*990*1750 |
900 |
6YL-120A |
6-8 |
11kw+1.5kw |
2250*1100*1800 |
1000 |
6YL-130A |
9-15 |
18.5kw+1.5kw |
2500*1200*1900 |
1500 |
6YL-160A |
14-18 |
22kw+1.5kw |
2600*1180*1970 |
1800 |
6YL-180A |
15-20 |
30kw+1.5kw |
2600*1180*1970 |
2100 |

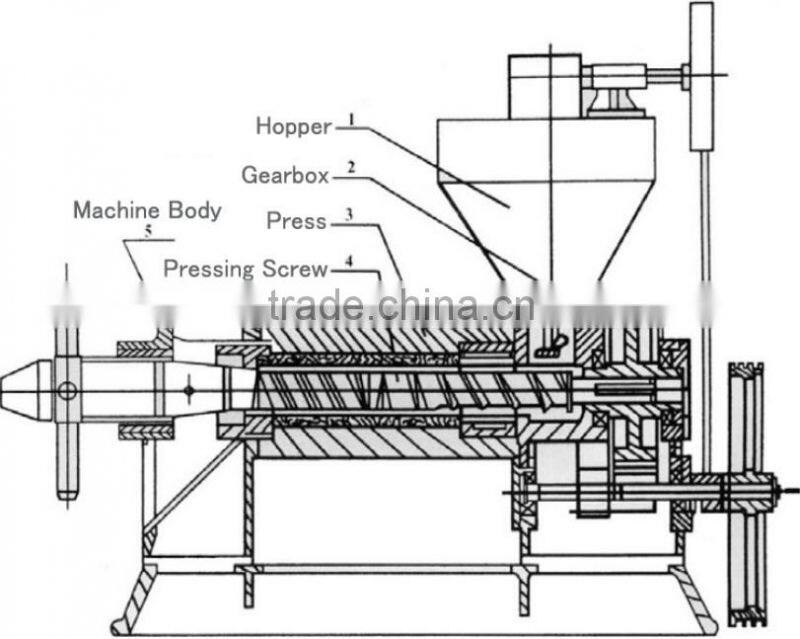

Main parts
1. Screw oil press
2. Electrical element for heating chamber .

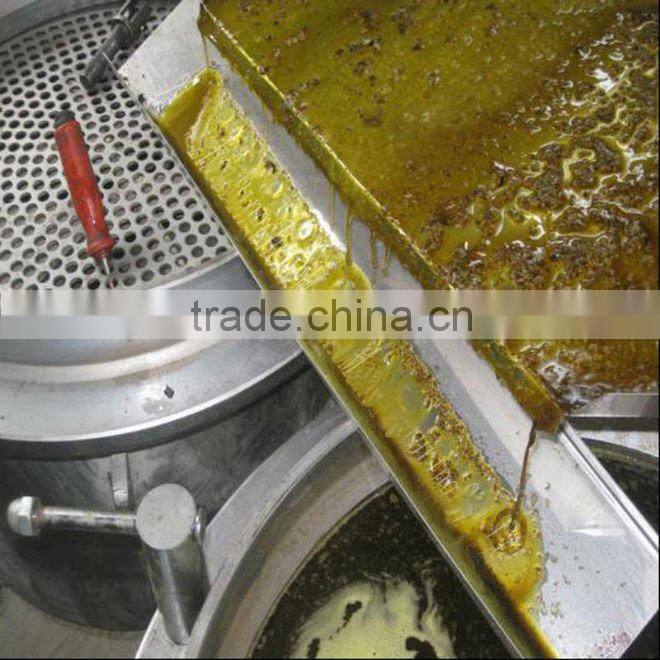

3. Vacuum filter for clean crude oil
4. Squeezing bolt
5. Heating ring.
6YL series scope:

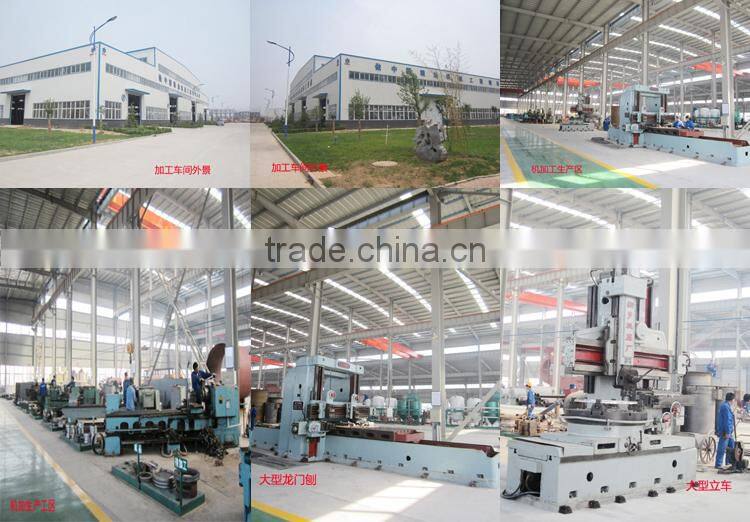

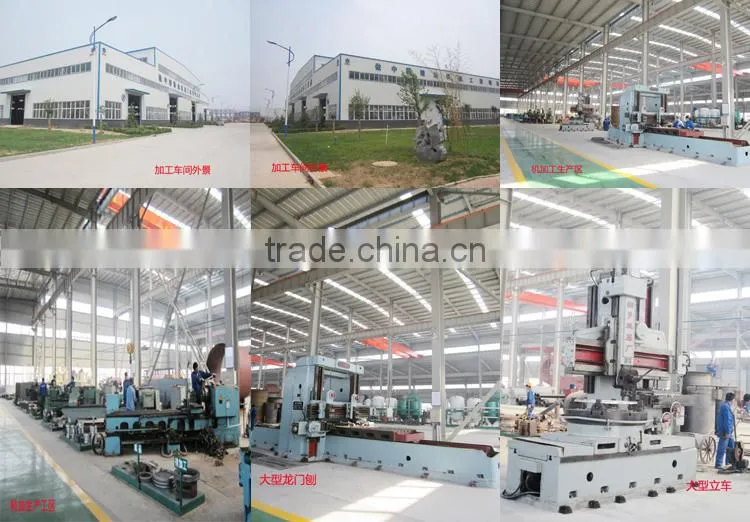

Our company -- Henan Huatai Food & Oil machinery Engineering Co.,Ltd has been in the field of oil press machine for many years,are professional manufacturer in the oil machinery production field in China, Our products durable quality and high oil yield have win a good reputation at home and abroad.
1. Can be used for both hot press and cold press.
2. High oil yield and good condition oil cake.
3. High purity edible oil. As equipped with two vacuum oil tanks to filter pressed oil, the finished oil is of high purity.
4. The wear parts such as the pressing rings, worms are made of the carbon steel which is under the process of heat pretreatment, making them very durable.
5. Safety and convenience. The whole process is controlled by electric cabinet, making it more safe and easy to operate.
6. Cast iron machine base.
7. Special gear box structure make the rotating speed averagely.
8. Main parts of chamber through the processing of high-temperature tempering and low temperature quenching.
1. What kind of oilseeds oil can be pressing and refining?
Crude soybean oil, palm oil, palm kernel oil, sunflower oil, canola oil(rapeseed oil) ,peanut oil, sesame oil, conttonseeds oil etc.
2. What’s the pre-press method?
Hot press, but we offer hydraulic type oil press machine, can do cold press work.
3. Which type of oil pressing machine can you offer ?
Screw oil pressing machine and Hydraulic pressing machine, both can do
Fully-automatic, semi-automatic and manual type

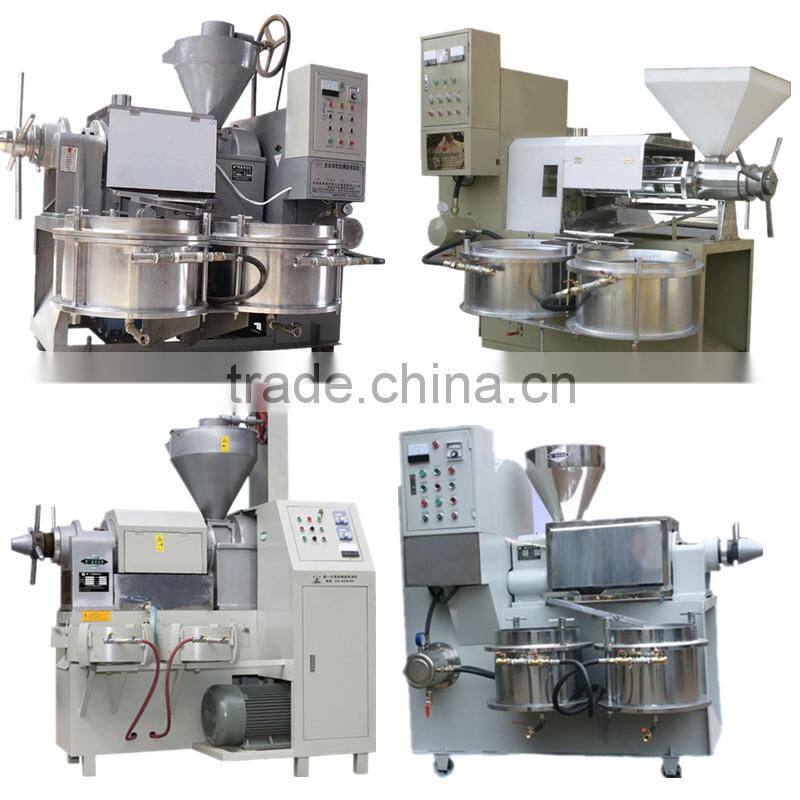

1. Semi-automatic Screw oil press machine
2. Full-automatic Screw oil press machine
3. Hydraulic oil press machine( used for cold press)
4. Palm oil press machine
5. Mini cooking oil refining machine unit
6. Oil production line
Oil pretreatment and prepressing equipment
Oil extraction equipment
oil refining equipment
Oil refining equipment(Final oil)
Hydration pot
Deacidification pot
Decoloring pot
Deodorization pot
Contact us for more information !
