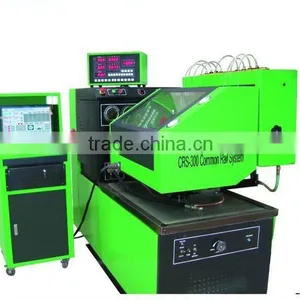

Help CenterAuto Common Rail Diesel Pump and Injector Test Bench CRS-300
Related Products
-
CRS-300 -- Multi-functional Diesel Injector Test BenchNegotiableMOQ: 1 Set -
CR-XZ816 -- Common Rail Pump And Injector Test BenchUS$ 13,600 - 15,000MOQ: 1 Set
-
CRS-300 Multi-functional Injector Test BenchUS$ 8,499 - 8,799MOQ: 1 Set
-
CRS-300 BOSCH Multi-functional Diesel Test BenchUS$ 8,580 - 8,880MOQ: 1 Set
-
CR-XZ816 BOSCH Diesel Common Rail Pump & Injector Test BenchUS$ 13,651 - 13,981MOQ: 1 Set
Specifications
1.output power:11kw,15kwure:0~2000bar
3.weight:1280kg size:208*175*80mm
4.driven by bosch pump.
5.ISO certificate
DESCRIPTIONS:

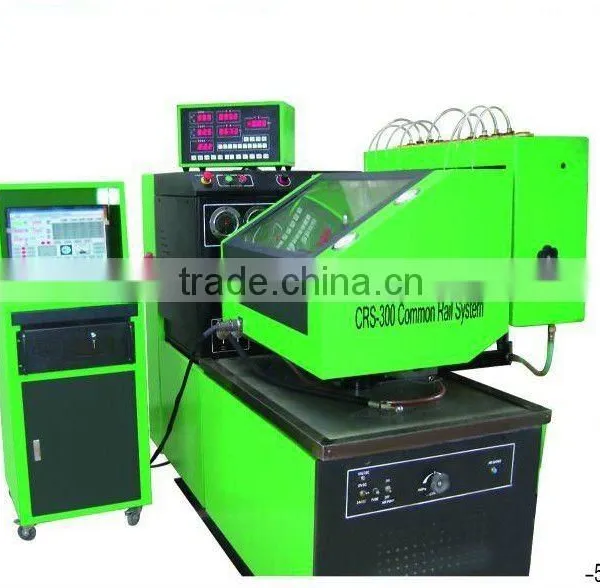

CRS-300 Multi-functional Test Bench is a kind of advanced common rail test system mounted on the traditional test bench, multi-use of one machine, can test not only common rail pump& injector but also traditional pump. Excellent quality and stable in performance, is ideal choice for you.
Features:
1.Controlled by industrial computer;
2.Windows XP operating system;
3. Displayed by 19” LCD screen.
4.With database can be upgraded.
5. Driven by original Bosch pump
Technical parameters:
Output power |
11KW,15KW |
Pressure |
0~2000 bar |
RPM |
RPM |
Size |
208*175*80(mm) |
Weight |
1280 kg |
Common Rail Pump Test:
Functions:
1.Test BOSCH CP1/CP2/CP3, DELPHI CRSP, DENSO HP0/HP3/HP4, SIEMENS DCP pump and so on.
2. Measure the feeding and return volume, pump chamber pressure, feeding pressure, check sealing performance, and functions of ZME valve
Common Rail Injector Test:
Test BOSCH, DENSO, DELPHI injectors.
Functions:
1.Test up to 6pcs injectors at any one time.
2.Automatic high-pressure cleaning.
3.Test the oil injection and oil return under the circumstance of sealing, pilot injection, idle operation, full load.
4.Create, edit, view, save test plans easily.
