auto electrical diesel Common Rail Pump & Injector Test Bench

wooden box

Specifications

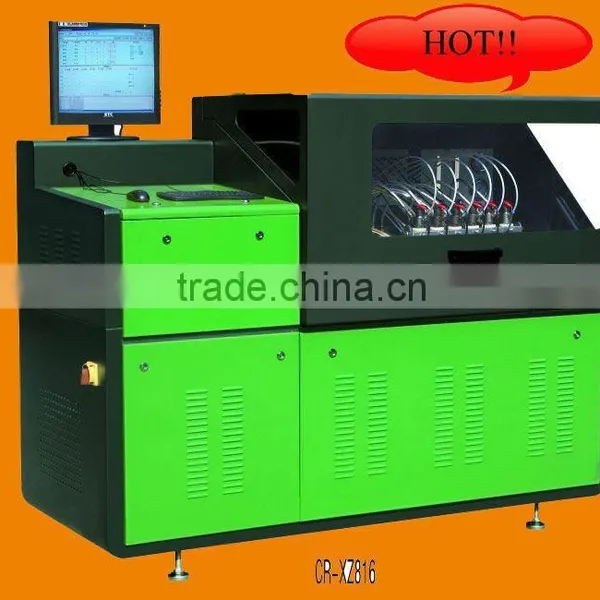

CR-XZ816 Common Rail Pump&Injector Test Bench can not only do the  commom rail pump test but also do the common rail injector test, which is applied to BOSCH, DENSO, DELPHI and so on.

Features:

1.Industrail human-machine interface

2.Windows XP operating system

3.Automatic temperature control

4.Driven by BOSCH CP3 pump

5.DRV wave pressure control.

6.High accuracy import flow sensor.

7.Transparent safety protection.

Technical Parameters

Common Rail Pump Test:

Function:

1. Test BOSCH CP1/CP2/CP3, DELPHI CRSP, DENSO HPO/HP3/HP4, SIEMENS DCP pump and so on.

2. Measure the feeding and return volume, pump chamber pressure, feeding pressure, check sealing performance, and functions of ZME Valve.

Common rail injector test:

Test BOSCH,DENSO, DELPHI injector and so on.

Function:

1. Test up to 6cps injectors at any one time.

2. Automatic high-pressure cleaning is for repairing the fault by dirty diesel oil.

3. With high accuracy import flow sensor, automatic test the oil injection and oil return under the circumstance of  sealing, pre-injection, full load,     idle operation, and calibrating; closed-loop control.

4.Self-learning ability, automatic create new plans by testing new injectors; view, create, edit, save test plans easily.
