Specifications
1.can test the common rail injector and pump and the traditional pump.2.can test 4 injectors at any time.
3.ce certificat

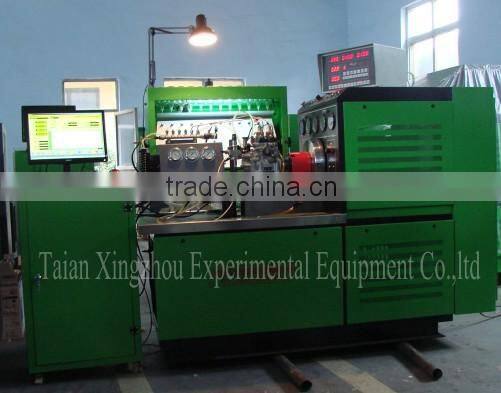

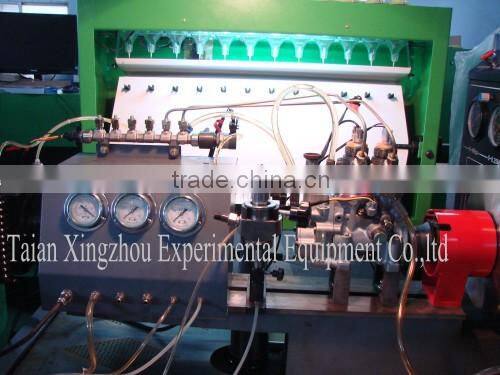

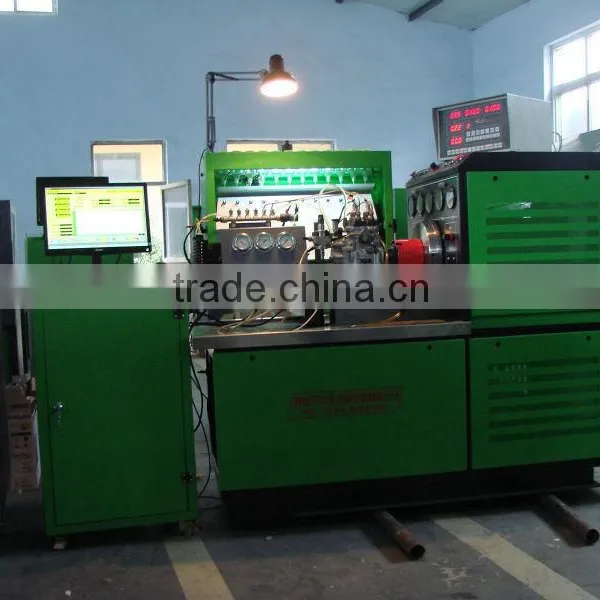

COMMON RAIL SYSTEM Test Bench-CRS300
(CE certificate)
Description:
Advanced common rail test system mounted on the traditional test bench, multi-use of one machine, can test not only common rail pump& injector but also traditional pump. Excellent quality and stable in performance, is ideal choice for you.
Technical Parameters:
Output power | 11KW,15KW |
Pressure | 0~2000 bar |
RPM | 0~3500 |
Size | 208*175*80(cm) |
Weight | 1280 kg |
Features:
1.Controlled by industrial computer
2.Windows XP operating system
3. Displayed by 19 LCD screen.
4.With database can be upgraded.
5. Driven by original Bosch pump
FUNCTIONS:
Common Rail Injector | Common Rail Pump |
1.Test BOSCH,DENSO,DELPHI,DENSO,CATERPILLAR injectors. Piezo injector testing (optional function) | 1.Test BOSCH CPI/CP2/CP3, DENSO HP0/HP1/HP2/HP3/HP4, DELPHI CRSP, SIEMENS DCP common rail pumps and so on. |
2. Test 1,4, or 6 injectors at one time | 2.Test sealing quality of common rail pump. |
3. Sealing quality test of common rail injectors | 3. Test pump chamber pressure of common rail pump. |
4.Pre-injection test of common rail injectors | 4. Test the feeding pressure of common rail pump. |
5. Full-load condition test of common rail injectors | 5. Test the feeding oil amount of common rail pump. |
6. Idle condition test of common rail injectors. | 6. Test the return fuel amount of common rail pump |
7. Calibration test of common rail injectors | 7.Measure the rail pump at any test time. |
8.Cranking fuel quality test of common rail injectors | 8.Display the pump speed at any test time. |
9. Self-learning ability | 9. Measure the temperature of fuel at any test time. |
10. High-pressure cleaning function | 10. Measure the control quality of ZME valve. |
11. Data can be save, edited, and printed | 11. Data can be save, edited and printed |
1)Common Rail Pump Test:
Function:
1.Test BOSCH CP1/CP2/CP3,DELPHI CRSP, DENSO HP0/HP1/HP2/HP3/HP4, SIEMENS DCP pump and so on.
2.Measure the feeding and return volume, pump chamber pressure, feeding pressure,check sealing performance, and functions of ZME valve.
2)Common Rail Injector Test:
Test BOSCH, DENSO, DELPHI,SIEMESN injectors.EUI/EUP
1.Test up to 4 pcs injectors at any one time.
2. Automatic high-pressure cleaning.
3Test the oil injection and oil return under the circumstance of sealing, pilot injection, idle operation, full load.
4 Create, edit, view, save test plans easily.
Hot Questions:
1.Does your company a distributor or a manufacturer?
Our company is specialized in the producing of the diesel fuel injection test bench by ourselves for more than 10 years, we have our factory and so can provide you the best price.
2.Is the operation easy?How about the instructions?
Dear customer,we design the machine for the beautiful style and easy operation. We provide the operation instructions with the machine even in your language.And also can provide the operation vedio.
3.Payment method and the delivery time.
We accept bank transfer,Western Union or Paypal. Accept L/C,TT.
The machine will be produced as soon as possible when receive the payment,often within 8 days.
so welcome to your inquiry!!!
