crude vegetable oil refining machine
- 4000 Set / Sets per Month
- Shanghai Qingdao
- T/T Credit Card
- used for stone pe-250x400 quartz small jaw crushers
- low comsuption mini rock diesel engine jaw crusher
- china manufacturer provide used jaw crusher price
- high efficiency pe 400 x 600 old mini jaw crusher for sale
- manufacturer provide toggle platepe 150x250 jaw crusher machine
- pe 400x600 mobile jaw crusher price with spare parts
Product Details
Condition: | New | Usage: | Other, crude vegetable oil refining machine | Type: | Other, Cold & Hot Pressing Machine |
Automatic Grade: | Automatic | Production Capacity: | 450KG-1400KG/8hours | Place of Origin: | Henan, China |
Brand Name: | Huatai | Model Number: | SWD-50 | Voltage: | 220/380V |
Power(W): | 7KW | Dimension(L*W*H): | 1800*800*1400 | Weight: | 580KG |
Certification: | CE ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

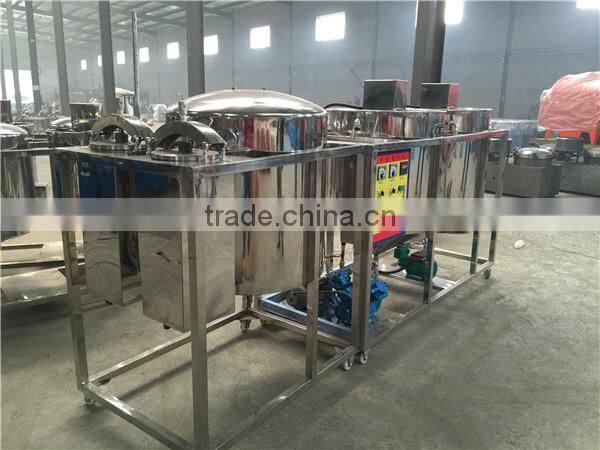

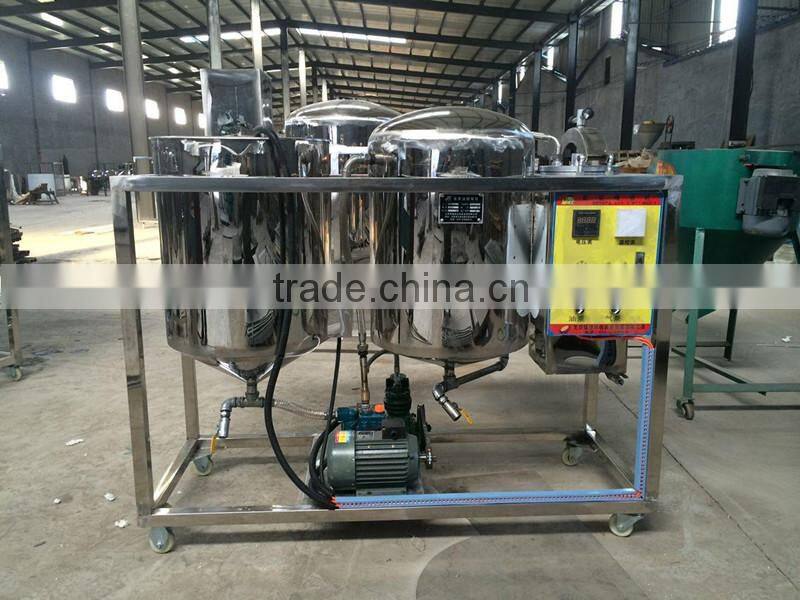

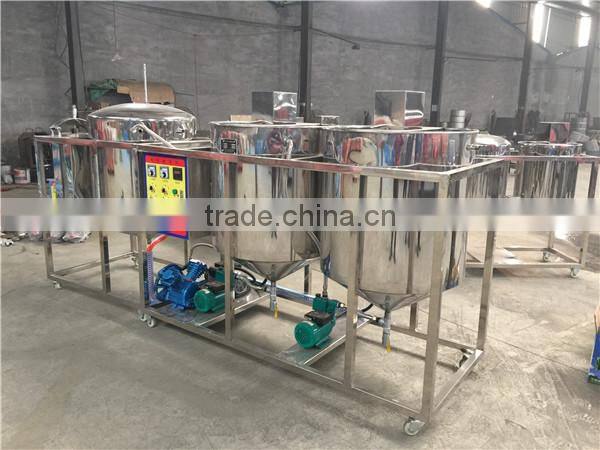

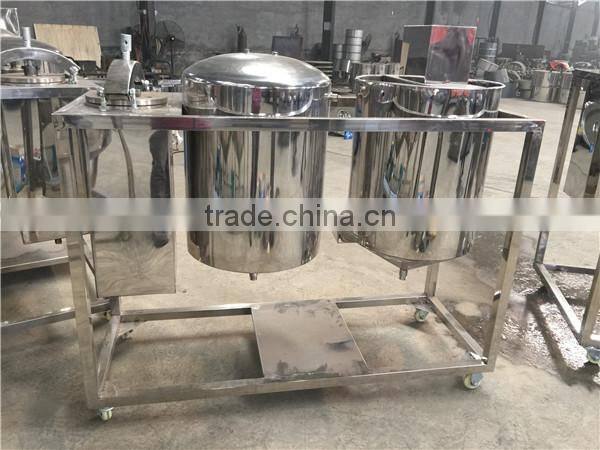

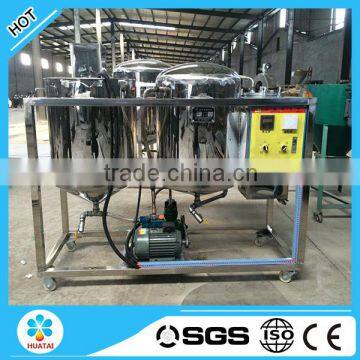

crude vegetable oil refining machine
1.More than 60 years cooking oil machine manufacturing experience
2.Have factory and professional engineers
3.Can Offer full set oil production line, according to different oilseeds
4.Patents and CE,ISO,SGS
crude vegetable oil refining machine :
There are certain NonTriglyceride factors exsit in the crude oil, such as free fatty acid, water, suspended impurities, volatile matter, odors and etc. The oil refinery adopts the advanced technology to separate the impurities from oil, and then get the edible oil. The main function of this type oil refinery is to produce the high quality refined oil.
The main steps of crude vegetable oil refining machine :
1. The degumming. It use the hydration method.
2. The deacification. It use the Alkali refining method.
3. The decolorization. It use the white clay to absob the colouring materials.
The technology parameter for crude vegetable oil refining machine :
Name | Model | Production | power | size | function |
Refining machine | SWD-50D | 450-500KG/8H | 5KW | 1500*680*1400 | Degumming, dephosphorylation,bleaching,deacidification |
Refining machine | SWD-75D | 1000KG/8H | 7KW | 1800*800*1400 | Degumming, dephosphorylation,bleaching,deacidification |
Refining machine | SWD-100D | 1400KG/8H | 9KW | 2200*1000*1500 | Degumming, dephosphorylation, bleaching |
How to use crude vegetable oil refining machine :
1. Put into the crude oil from 1 to 15, then heat the crude oil to 70-90°C, then put into some NaOH and hot water to make the Acid value down
2. Then wait about 10-20 minutes, then let the water come 2-3 away, then close 3
3. Then open 16 , then the oil will come from 2-4-5-8 into 19. When all the oil come from 15 into 19, then stop 16 and close 5, open 6
4. Put the bleaching earth into 21
5. Open 17, then the air will come from 6-7- 8 into 19, the air come into 19 , then the air will press the oil from 19-9-11-12 into 21, then the oil come out from 13
6. The oil come from 13 is the refined oil

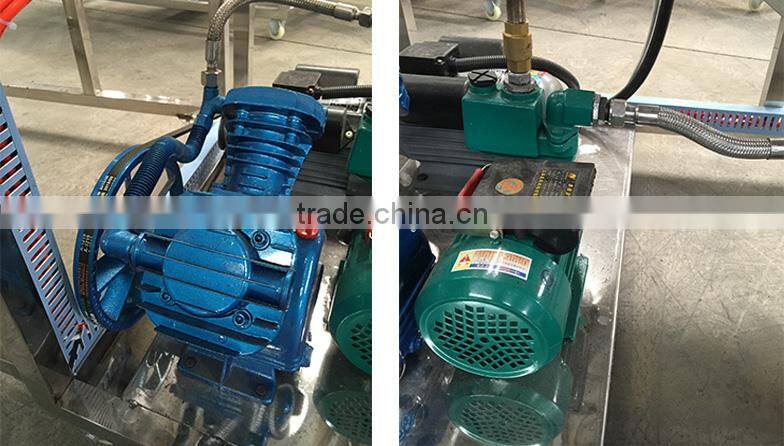

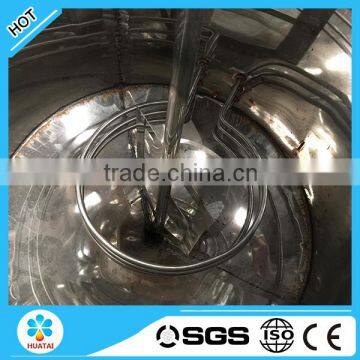

Detail Parts
Finished oil
Country | Project Name | Raw material |
Bangladesh | 30T/D rice bran expanding and extraction , | Rice bran |
5T/D rice bran oil refining project | ||
Malaysia | 100T/D palm fruit oil refinery project | Palm fruit |
Sudan | The whole production line for | Peanuts |
30T/D peanuts oil making equipment | ||
Bolivia | 60T/D soybean oil refinery project | Soybean |
Indonesia | 30T/D copra oil extraction , and 20T/D copra oil refinery | Copra |
Kazakhstan | 3T/D cotten seeds oil refinery project | Cotten seeds |
Our company -- Henan Huatai Food & Oil machinery Engineering Co.,Ltd has been in the field of oil press machine for more than 60 years,are professional manufacturer in the oil machinery production field in China, Our products durable quality and high oil yield have win a good reputation at home and abroad.
Terms And Conditions:
Delivery Time: 5 to 15 days after receiving payment.
Payment: T/T, 30% advance payment, 70% balance before shipment.
Shipping Term: FOB, CFR, CIF ( As customer's request)
After Service:
1) Free replacement of main parts in 12 months from date of purchasing
2) We provide spare parts all year around at factory cost.
3) We provide technical solutions for clients at any time.
1. Semi-automatic Screw oil press machine
2. Full-automatic Screw oil press machine
3. Hydraulic oil press machine( used for cold press)
4. Palm oil press machine
5. Mini cooking oil refining machine unit
6. Oil production line/plant
10T TO 5000T/D Oil pretreatment and prepressing equipment/project
20T TO 5000T/D Oil extraction equipment/project
5T TO 1000T/D crude oil refining equipment/project
1t-5tpd Oil refing machine
