24 Working Station CNC Turret Mechanical Punching Machine
Dear sir/madam
Thankful your attention on our website first, our company has nearly 10 years' experience on CNC punching machine. We can assure you that we will meet your all requirements with positive and enthusiastic attitude.
If you want to know more details about our product or our company, please connect with me anytime or visit our Website, which on the first picture.
Yours
George
Product Description

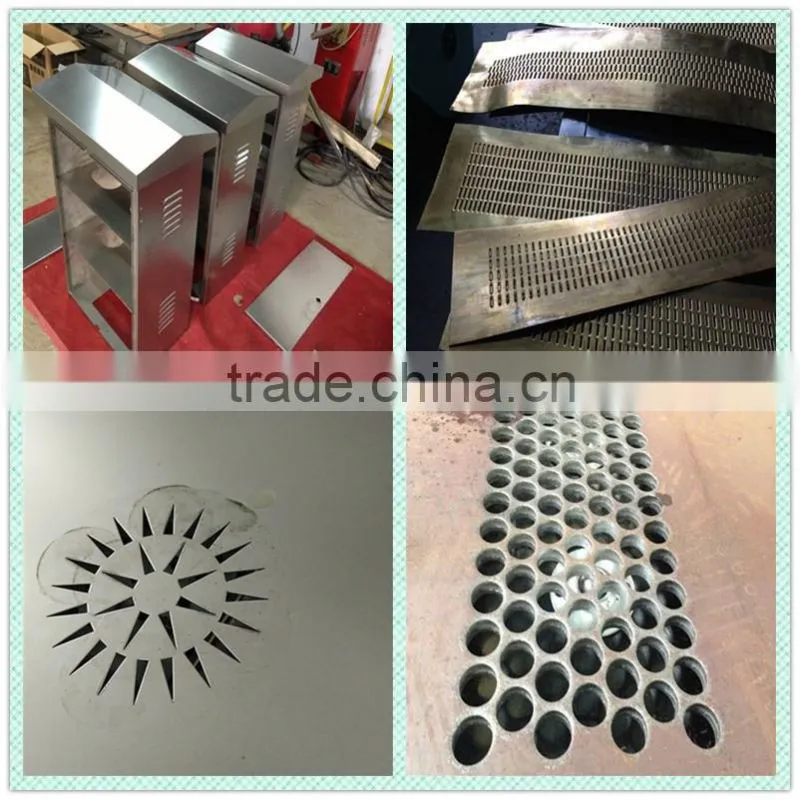

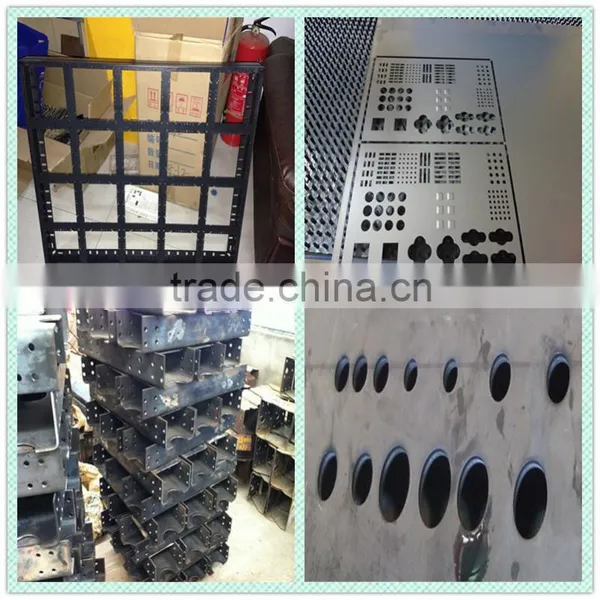

ZT30B-24 CNC turret punching machine is been widely used in voltage switchgear, control panel, air conditioner panl,box,cabinet, shell, metal furniture, kitchen utensils and appliances, advertising and other panel punching processing companies. Accessories can be used in accordance with your requirements to design.
Specification
Parameter |
Unit |
ZT30B(Mechanical) |
Nominal Pressure |
KN |
300 |
Once punched maximum diameter |
mm |
Φ88.9 |
Maximum Workpiece Size |
mm |
1250*2500 |
Max. Workpiece Weight |
kg |
100 |
Punching Accuracy |
|
±0.1 |
Times of highest Stroke of Punch |
h.p.M |
240 |
Max thickness |
mm |
≤4.0 |
Maximum plate feeding speed |
m/min |
60 |
Dimension(L*W*H) |
mm |
5500x4200x2300 |
Weight |
t |
≈10 |
Number of stations |
pcs |
24 |
Pressure of work |
Mpa |
25-26 |
Number of control shaft |
Pcs |
3/4 |
Air pressure |
Mpa |
0.55-0.7 |
Mold structure |
|
Internationally general type oriented mold |
Turret structure |
|
Thick turret structure |
Clamps structure |
|
Full floating type |
Re-positioning device |
|
Yes |
Countertops |
|
Brush/brush ball mixed |
CNC system |
|
NCT-04 |

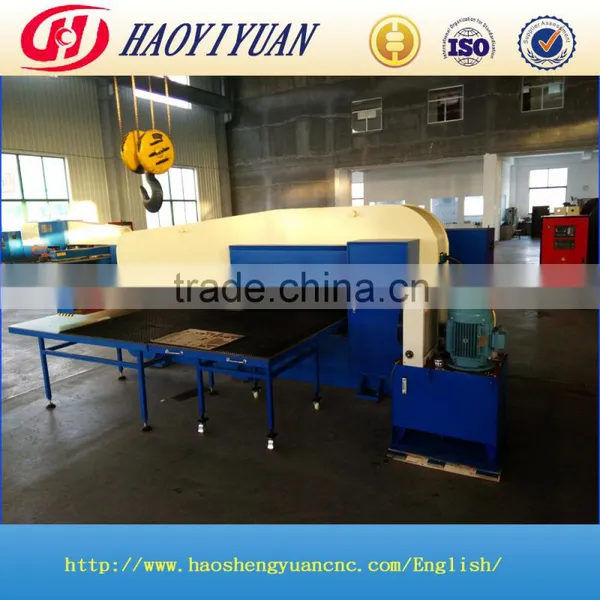

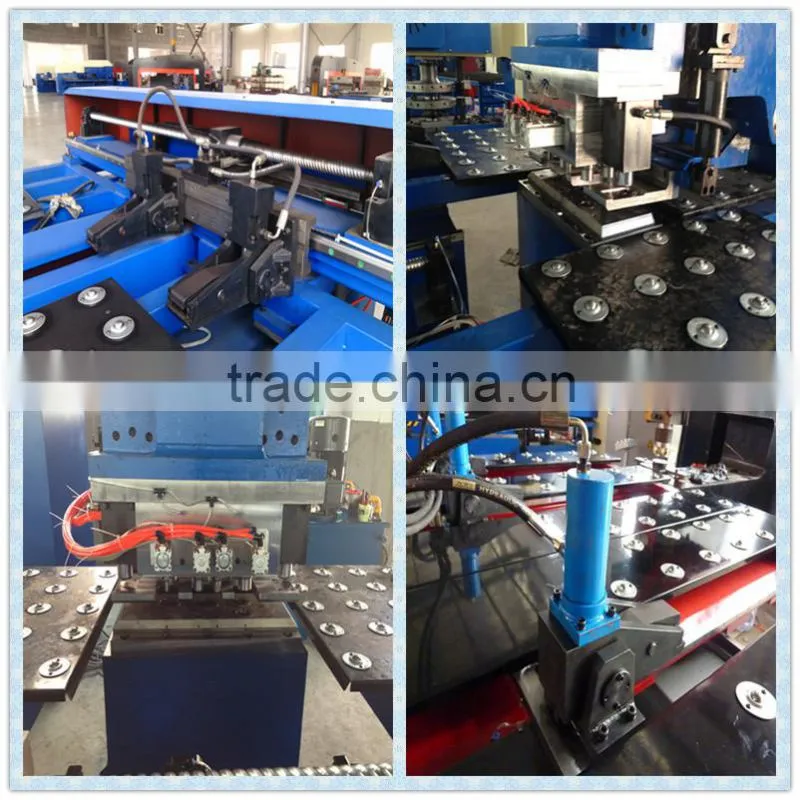

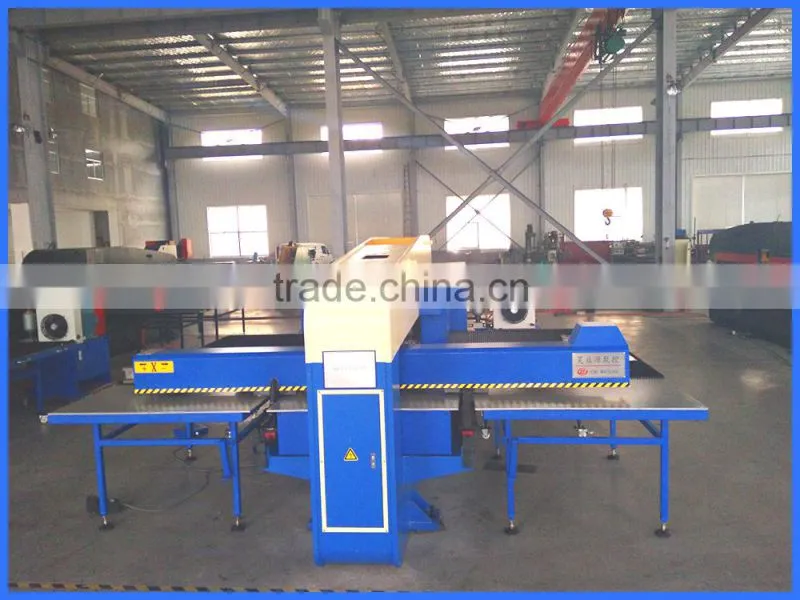

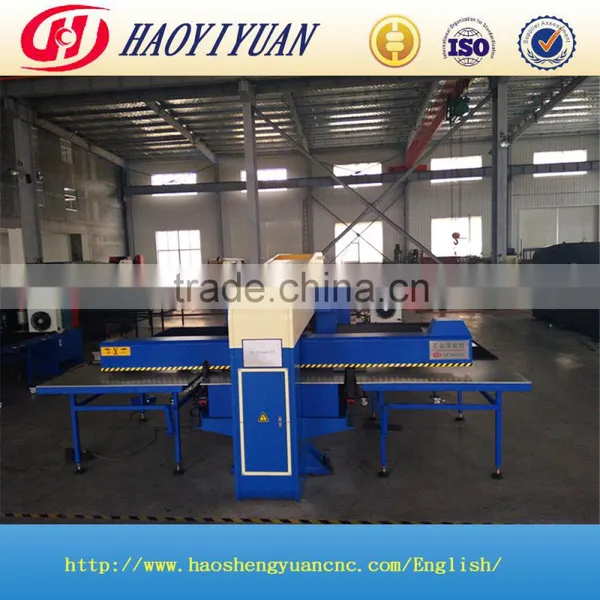

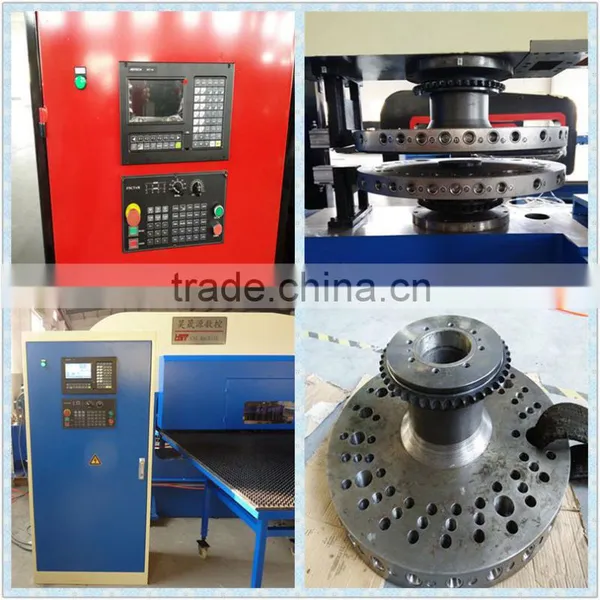

Picture show

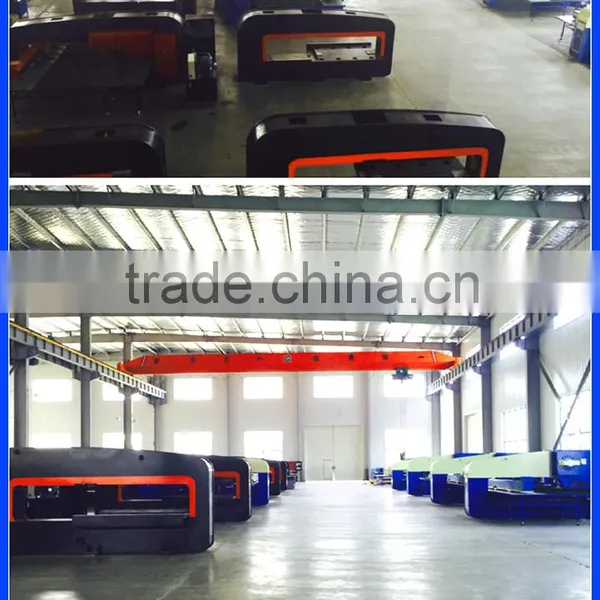

Company Information
Qingdao HaoYiYuan machinery co., LTD., located in the beautiful west coast of Qingdao, which is near by the Qingdao qianwan port, Qingdao international airport, the traffic is very convenient.
Our company mainly produces are CNC punching machine, CNC turret punch, nc feeder, nc plate CNC punch press and non-standard punching production line equipment, etc.
HaoYiYuan strives for perfection, strive for perfection, and always insist the integrity rigorous and pragmatic attitude on giving the first-class products, first-class service to our customer.
