Specifications
1. granite slab grinding & polishing2. 200~500M2/day produciton
3.45 degree gloss polishing quality
5. for dyed black or red

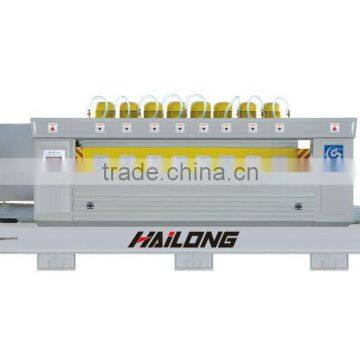

ZDMJ 8C/6C/4C GRANITE AUTOMATIC POLISHING MACHINE FOR SLAT
SPECIALIZED IN:
It is used for continuous grinding of dyed slab and meets the demand of mass production of more than 40-50degree gloss slab especially for grinding the back of dye color stone
WORKING THEORY:
I. The device uses light and low-power-consumption resin polishing disc. With single polishing head consuming 7.5 power, its power consumption is two quarters less than traditional continuous polisher.
II. Controlling system adopts PLC terminal control for convenience of setting parameters through LCD touch screen. The elevation of polishing head and grinding and polishing pressure, demand of which is adjustable within set value, are pneumatically controlled. The machine is equipped with frequency conversion adjustable speed system to adjust speed of horizontal grinding and polishing of polishing head and transmitting of slab flexibly within set value.
III. Slab is transmitted automatically. Polishing head intelligently calculate/distinguish the shape of slab and grind it continuously. With low cost and high production efficiency, a set of this device equals several manual or semi-automatic bridge polishers and requires 1-2 operators only
ITEM NO. |
ZDMJ 8C/0.9 |
QUANTITY OF GRINDING HEAD |
8 |
POWER OF MAIN MOTOR |
7.5KW |
TOTAL POWER |
64.45KW |
GRINDING HEAD DIAMETER |
200mm |
GRINDING PLATE WIDTH |
900cm |
GRINDING PLATED HEIGHT |
10-50cm |
BEAMS SWING SPEED |
3-35m/min |
SLAB TRANSMITTED SPEED |
1-3m/min |
COOLLING WATER PRESSURE |
0.1-0.15MPA |
WATER CONSUMPTION |
9m3/h |
AIR SUPPLY PRESSURE |
0.7mpa |
TOTAL WEIGHT |
11000kgs |
DIMENSION(LXWXH) |
5400x2700x2300mm |
