Specifications
1,Industrial Structure PE/PP Foamed Board Production Line
2,10 years history
3,Thickness:1-20mm
4,Width:1200-2050mm
5,CE/ISO

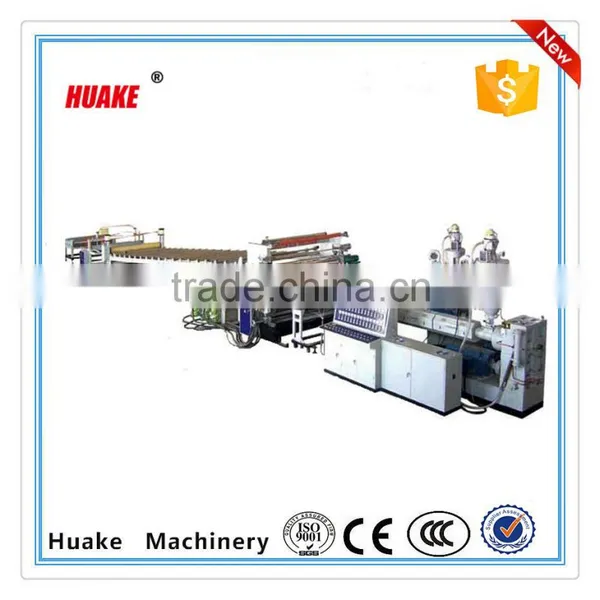

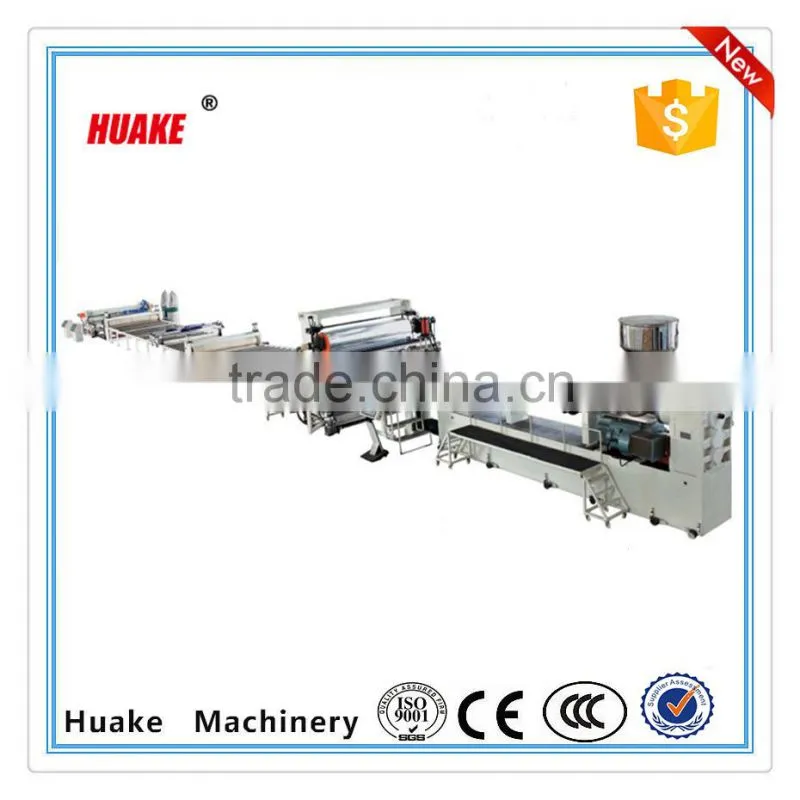

PE/PP Foamed Board Production Line
PP foamed board product has such features as heat-proof (max. working temperature is 130°C), high strength, good heat separation, fine elasticity, good rot resistance, non-toxic, recycle, etc.
Applications: such as packing, heat separation material and carriage, etc.
Production scope: thickness 2-6mm, width 600~1500mm
thas such features as healthy, flame retardant, isolation, waterproof, wetproof, shock reduce, buffering, temperature keeping, heat separating, light, easy to thermoform, etc.
Applications: such as carriage inner core material, outer packing, sports material, travel material, building, house decoration, shoe, case&bag, navigation, toy, medical treatment, commodity, etc.
Production scope: thickness 3-15mm, width 600-1700mm
Main Extruder Technical Parameter
Main technique parameter(conical twin screw)
| Item type | SJSZ- 45x22 |
SJSZ- 51x22 |
SJSZ- 55x22 |
SJSZ- 60x22 |
SJSZ-65x22 | SJSZ-80x22 | SJSZ- 92x28 |
|
Screw diameter |
45/99 | 50/105 | 55/110 | 60/125 | 65/132 | 80/156 | 92/188 |
|
The screw rotates speed |
45 | 45 | 45 | 40 | 40 | 34.7 | 34.7 |
|
The biggest extruding capacity |
80 | 125 | 180 | 250 | 300 | 500 | 900 |
| Main motor power | 18.5 | 22 | 30 | 30 | 37-55 | 55-75 | 132 |
|
Heat power |
15 | 18 | 20 | 20 | 28 | 35 | 85 |
Main technique parameter(parallel twin screw)
| Item type | SJS-65/26 | SJS-80/22 | SJS-90/26 | SJS-107/26 | SJS-130/26 |
| Screw diameter | 65 | 80 | 90 | 107 | 130 |
| The screw rotates speed | 50 | 33 | 45 | 10-30 | 10-30 |
| The biggest extruding capacity | 160 | 250 | 330 | 600 | 1000 |
| Main motor power | 22 | 22-30 | 55 | 90-110 | 110-160 |
|
Heat power |
18 | 24 | 38 | 52 | 85 |

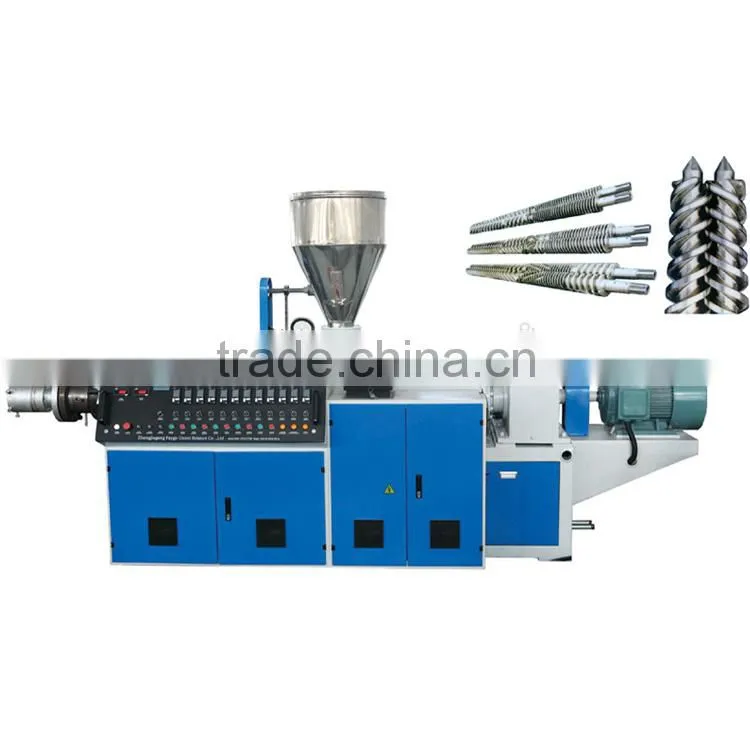

Main Extruder Photo
