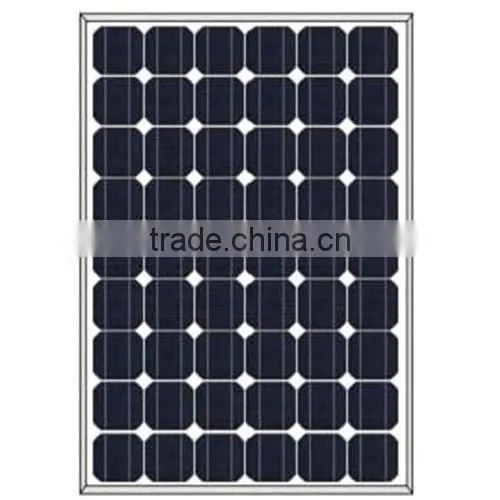

Products Name: 200W Mono Solar PV Panel
Features:
High Solar Cell Conversion Efficiency
Superior Quality and Craftsmanship
Longlife Design and Maintanance Free
Renewable Energy Products
Energy Saving and Pollution Reduction
Certificates Meet: TUV /VDE/MCS/Soncap/ PV Cycle/
5 Years of Products Guarantee
10 Years Performance guarantee at 90% of the minimal rated power output
25 Years Performance guarantee at 80% of the minimal rated power output
Mechanical Characteristics | |
Model |
SUN-M200M |
Maximum power at STC(Pm) |
200W |
Power Tolerance (%) |
0-+3% |
Open circuit voltage (V) |
46.2 |
Short circuit current (A) |
5.70 |
Maximum power voltage (V) |
38.50 |
Maximum power current (A) |
5.20 |
Max-System Voltage (VDC) |
1000 |
Cell Efficiency (%) |
|
Module Efficiency (%) |
|
Cell Dimensions (mm) |
125*125 |
No. Type and arrangement of cells |
72 pcs. Mono-Crystalline Silicon (12*6) |
Applications:
Home Application Solar Power System
Commercial Application Solar PV System
Solar Power Plant
Street Lighting System
Off Grid Residential Solar Power System
Portable Solar Power System
Off-Grid Solar Home Power System
Off-Grid Solar Power System
Wind-PV hybrid Power System
On-grid residential roof-tops
On-grid commercial/industrial roof-tops
Other on-grid applications
