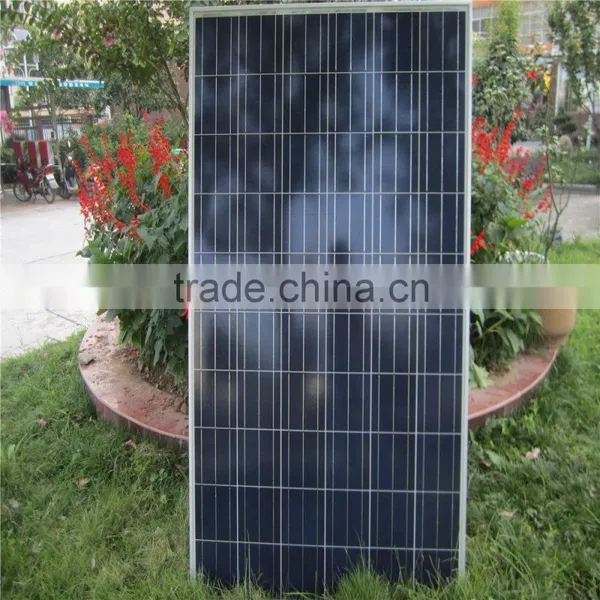

China Top Factory Professional Made High Watt Solar Panel250 Watt Poly Solar Module

China Top Factory Professional Made High Watt Solar Panel250 Watt Poly Solar Module thumbnail-1
China Top Factory Professional Made High Watt Solar Panel250 Watt Poly Solar Module photo-1
US$ 0.52 - 0.68 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
YH
Model Number:
SUN-M250P
Contact Supplier Request Quote Chat Now
Hubei Eternal Solar Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name YH
Model Number SUN-M250P
Material Polycrystalline Silicon
Size 1640*992*40mm
Number of Cells 60pcs
Max. Power 250W
Product Description



Electrical characteristics

Under STC (irradiance 1000W/m2, module temperature 25℃, AM1.5)


Technical Data
  MP-29P60 SERIES
Polycrystalline cells     60

Max system voltage     1000V

Electrical Data

Under STC ( Standard Test Conditions:1000W/m2 25℃, AM1.5)

Maximum Power Output[Pmax]   225Wp 230Wp 235Wp 240Wp 250Wp

Tolerance       ±3%

Maximum Power Voltage [Vmax]    29.62V 29.94V 29.99V 30.5V 30.5V

Open Circuit Voltage [Voc]   36.62V 36.9V 37.05V 37.09V 37.09V

Maximum Power Current [Imax]   7.6A 7.68A 7.84A 7.87A 8.19A

Short Circuit Power Current [Isc]   8.26A 8.27A 8.31A 8.4A 9.33A

Temperature data

Temperature coefficients of Pmax                               —0.47%℃  -0.47% /℃

Temperature coefficients of Voc    -0.38% /℃

Temperature coefficients of Isc    +0.1% /℃



Mechanical Characteristics

Cell type:  6 inches

Cell arrangement: 60

Dimensions (mm):       1640*992*40

Weight (kg):   19

Frame:    anodized aluminum alloy

Junction box:  IP65 rated

Wind loads:   2400 Pascal certified

Output cables: double insulated solar cable, MC or compatible connection



Security data

High voltage test:       3000V DC/max, 50MA

Surface maximum load capacity:   200kg/sq.m

Allowable hail load:    225mg steel ball down from 2m height

Warranty

 5 years material and workmanship warranty

10 years 90% power output

25 years 80% power output



.  Quality insurance by 6 different China Insurance companies.

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jianshi, Hubei, China, near Wuhan. You are warmly welcomed to visit us .And before you take off from your country, please let us know. We will show you the way, or arrange time to pick you up if possible.



3. Q: Do you provide free sample?
    A: Usually we do not offer free sample.



4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.



5. Q: Could you print our company LOGO on the nameplate and package?

   A: Yes, we can do that.



6. Q: Do you accept custom design on size?

   A: Yes, if the size is reasonable.

Packaging & Shipping

 China top factory professional made high watt solar panel250 watt poly solar moduleChina top factory professional made high watt solar panel250 watt poly solar moduleChina top factory professional made high watt solar panel250 watt poly solar moduleChina top factory professional made high watt solar panel250 watt poly solar moduleChina top factory professional made high watt solar panel250 watt poly solar moduleChina top factory professional made high watt solar panel250 watt poly solar module

Company Information

HUBEI ETERNAL SOLAR CO.,LTD. is a high-tech enterprise integrating the research, development, production and sales of solar photovoltaic products. It was established and settled in Jianshi Industrial Zone of Hubei Province in September 2007 with the registered capital of 50 million and an initial investment of 240 million, covering an area of 36,000 square meters. The current production capacity is an annual output of 60-80MW solar cells and 200MW photovoltaic modules.

Since establishment, the company has passed the ISO9001, ISO14001, HSAS18001, CE, TUV, UL, VDE and other international authority certification systems.         The company has own professional research team, which made 17 patents for the company. Hope Eternal Solar being your eternal choice!

 China top factory professional made high watt solar panel250 watt poly solar moduleChina top factory professional made high watt solar panel250 watt poly solar module,
