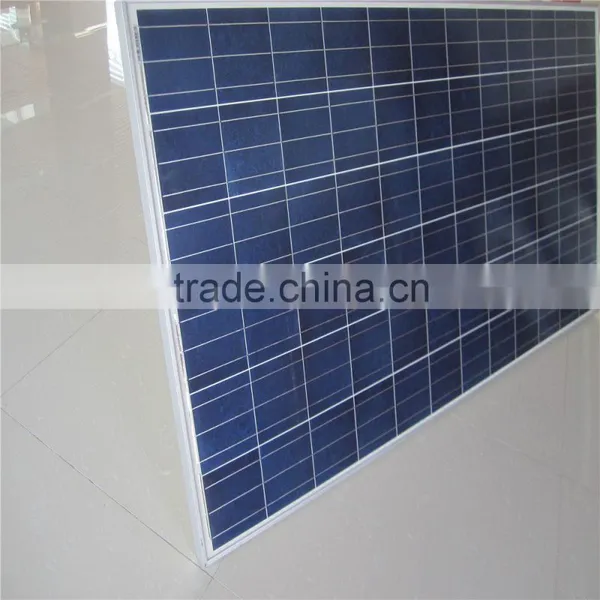

Help CenterHigh Efficient 305W Polycrystal Solar Module
Related Products
-
24V Solar pv ModuleUS$ 0.52 - 0.68MOQ: 5000 Pieces -
24V 200 Watts Poly Solar pv ModuleUS$ 0.52 - 0.68MOQ: 1000 Pieces
-
24V 215 Watts Poly Solar pv ModuleUS$ 0.52 - 0.68MOQ: 1000 Pieces
-
24V 210 Watts Poly Solar pv ModuleUS$ 0.52 - 0.68MOQ: 1000 Pieces
-
24V 215 Watts Solar pv ModuleUS$ 0.52 - 0.68MOQ: 1000 Pieces
Electrical characteristics
Under STC (irradiance 1000W/m2, module temperature 25℃, AM1.5)
Model number: SUN-M305P
P(max): 300W
V(max): 36V
V(oc): 43.2V
I(max): 8.41A
I(sc): 9.17A
Power tolerance: ±3%
Mechanical Characteristics
Cell type: 6 inches
Cell arrangement: 72(6*12)
Dimensions (mm): 1950*992*50
Weight (kg): 22
Frame: anodized aluminum alloy
Junction box: IP65 rated
Wind loads: 2400 Pascal certified
Output cables: double insulated solar cable, MC or compatible connection
Security data
High voltage test: 3000V DC/max, 50MA
Surface maximum load capacity: 200kg/sq.m
Allowable hail load: 225mg steel ball down from 2m height
HUBEI ETERNAL SOLAR CO., LTD. is a high -tech enterprise integrating the research, development, production and sales of solar photovoltaic products. It’s established and settled in Jianshi Industrial Zone of Hubei in 20 07 with the registered capital of 50 million and an initial investment of 240 million, covering an area of 36 ,000 square meters.
The current production capacity is an annual output of 60 – 80 MW solar cells and 2 00 MW photovoltaic modules. Since establishment, the company has passed the ISO 9001, ISO 14001, HSAS 18001, CE, TUV, UL, VDE and other international authority certification systems. company has own professional research team, which made 17 patents. Hope Eternal Solar being your eternal choice!
The packaging process
5 years material and workmanship warranty
10 years 90% power output
25 years 80% power output
. Quality insurance by 6 different China Insurance companies.
