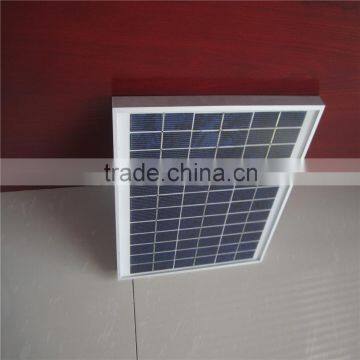

Help Center10W Solar Garden Lights Solar Panel
Related Products
-
2015 Hot Sale 10W Polycrystal pv ModuleUS$ 0.5 - 0.63MOQ: 1000 Pieces -
120 Watt Photovoltaic Panel for Solar LightUS$ 50.00 - 55.00MOQ: 100 Pieces
-
150 Watt Solar Power Solar Module Solar LightUS$ 0.52 - 0.68MOQ: 1000 Pieces
-
High Efficient 230W Poly pv Module Solar LightUS$ 0.52 - 0.67MOQ: 1000 Watts
-
110 Watt Photovoltaic Panel for Solar LightUS$ 50.00 - 55.00MOQ: 100 Pieces
Electrical characteristics
Under STC (irradiance 1000W/m2, module temperature 25℃, AM1.5)
Model number: SUN-M010P
P(max): 10W
V(max): 18V
V(oc): 21.6V
I(max): 0.44A
I(sc): 0.62A
Power tolerance: ±3%

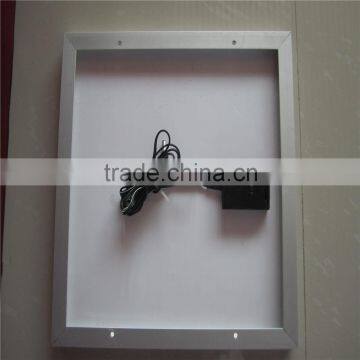

Mechanical Characteristics
Cell type: 6 inches
Cell arrangement: 36
Dimensions (mm): 280*280*17
Weight (kg): 1.5

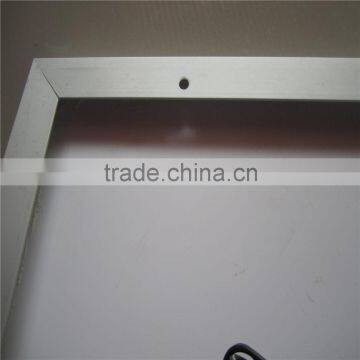

Frame: anodized aluminum alloy

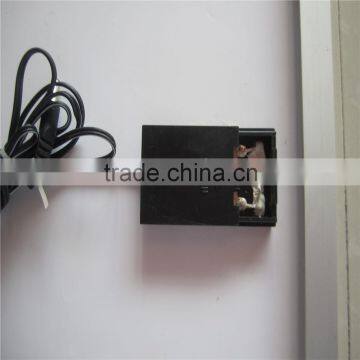

Junction box: IP65 rated
Wind loads: 2400 Pascal certified
Output cables: double insulated solar cable, MC or compatible connection
Security data
High voltage test: 3000V DC/max, 50MA
Surface maximum load capacity: 200kg/sq.m
Allowable hail load: 225mg steel ball down from 2m height
5 years material and workmanship warranty
10 years ³90% power output
25 years ³80% power output
. Quality insurance by 6 different China Insurance companies.
