Home > Products > No.10 Conveyors > Big Angle Granule Belt Conveyors

Big Angle Granule Belt Conveyors

FOB Price

US$ 1,000 - 8,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gravity Conveyor
Material	Other, Carbon steel	Structure	Belt Conveyor
Place of Origin	Henan, China	Brand Name	China DSM
Model Number	500 650 800 1000 1200	Voltage	220/380
Power(W)	3000-15000	Dimension(LWH)	as your requires
Certification	ISO CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Introduction of Big Angle Granule Belt Conveyors

Big Angle Granule Belt Conveyors is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetables, fruits, confectionary, Chemicals and other granules.

Features of Big Angle Granule Belt Conveyors

1. ISO9001:2008.

2. Small size, low cost.

3. Large conveying capacity.

4. Continuous conveying equipment without flexible traction accessories.

5. Simple structure.

6. Easy to operate and maintain.

Technical Parameters of Big Angle Granule Belt Conveyors

Belt width (mm)		400		500		600		800		1000		1200		1400
Sidewall height (mm)		60	80	80	120	120	160	160	200	160	240	200	300	240	400
Iaphragm spacing		100	120	120	150	160	200	200	250	200	280	250	350	280	400
Delivery value(m³/h) belt speed(m/s)		28	36	50	71	104	120	157	195	216	327	331	466	500	794
		19	25	33	57	83	97	127	157	175	271	267	384	414	680
		15	19	23	40	50	59	90	112	124	197	190	278	302	524
		9	11	15	21	37	37	48	60	66	106	102	149	162	281
Overall Size(mm)	First roller height (mm)	1200		1350		1615		1815		2000,2200		2300,2525		2525,2700
	Tail roller height (mm)	600		800		950		1115		1250,1400		1600,1700		1600,1700
	Middle belt height (mm)	700		800		850		1115		850,1200		1400,1500		1600,1700
	Foot margin width of middle part (mm)	580		800		1020		1220		1440		1500		1850

Working Principle of Big Angle Granule Belt Conveyors

It is divided into horizontal, inclined and combined types according to configured method and can be used with other conveying devices together to finish working such as concentrated transportation, respectively conveying mixing materials, dewatering, discharging and stacking.

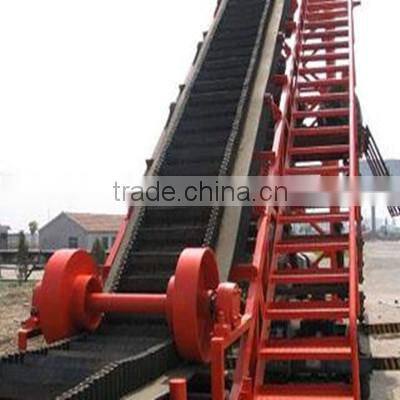

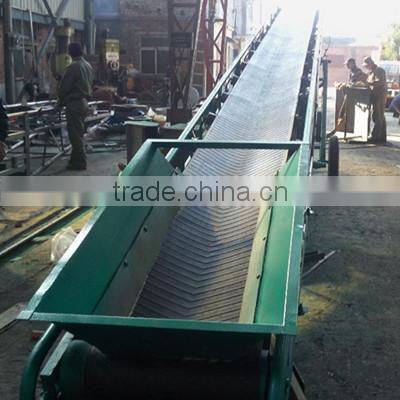

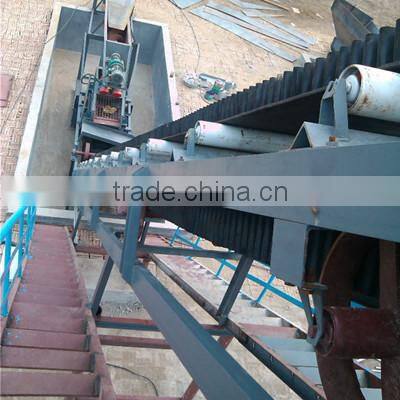

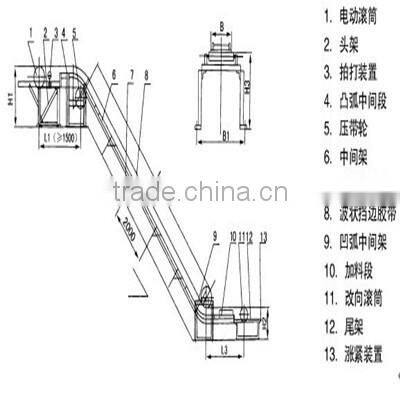

Pictures of Big Angle Granule Belt Conveyors

Company and Products

Services

1. Install and debug the equipment;

2. Send the first-line operators on site;

3. Examine the equipment regularly.
