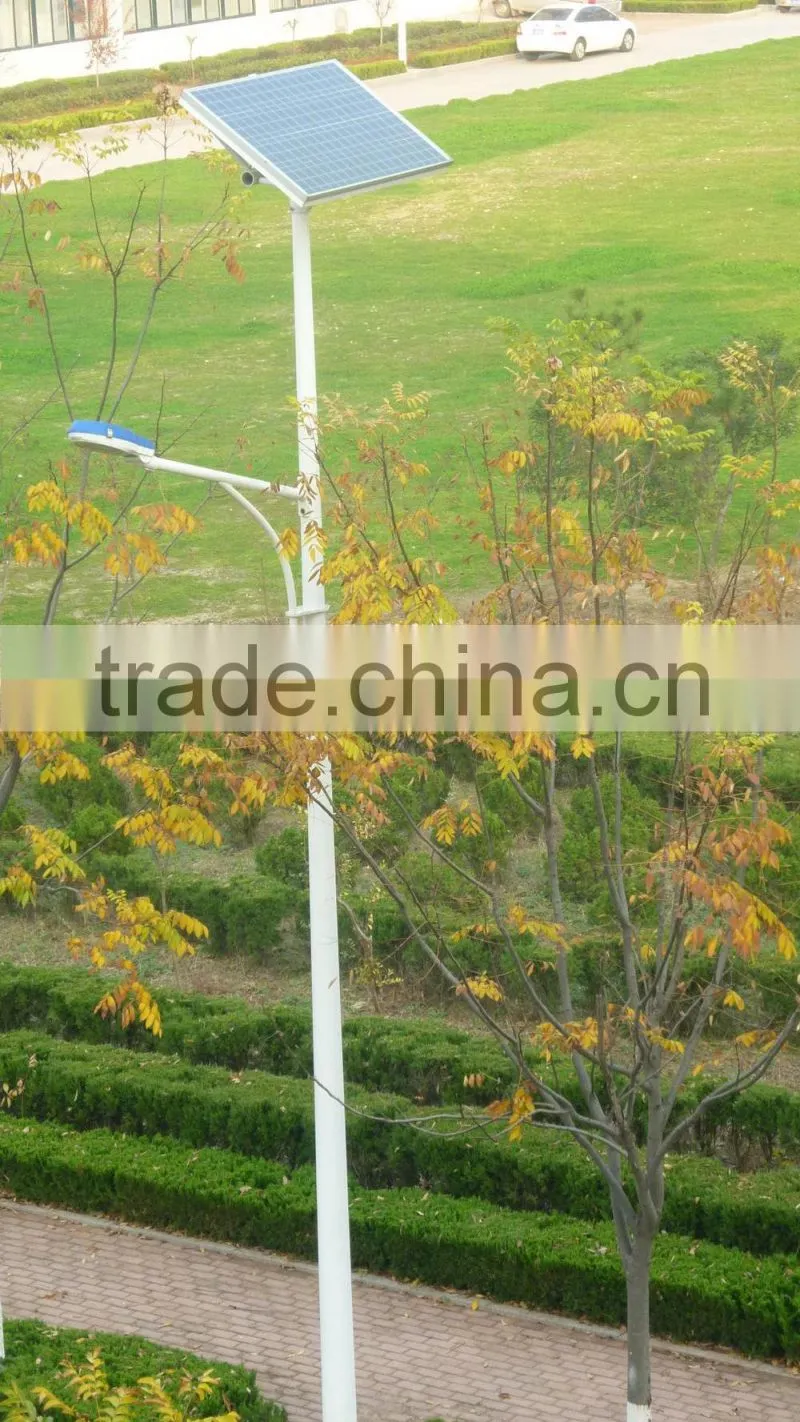

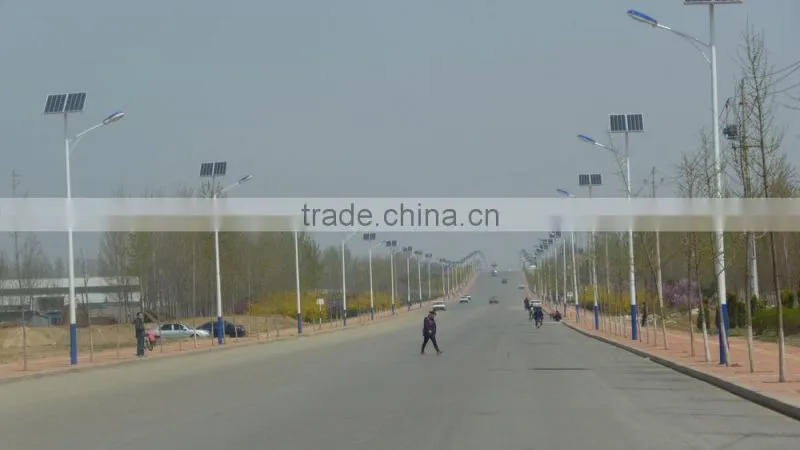

low frequency energy saving induction solar street light solar panel
Specifications:
solar module 230 watt
Easy installation
25 years warranty
CE certification

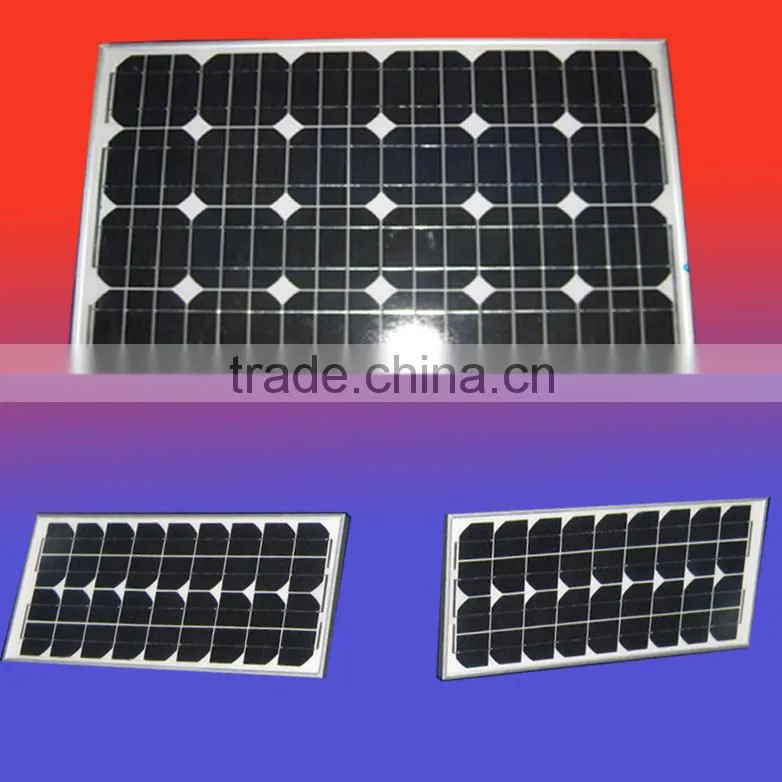

Solar panel 230 Watt:
Electrical Characteristics: BCT230-24
Maximum power at STC(Pmax): 230W
Optimum operating voltage(Vmp): 34.4V
Optimum operating current(Imp): 6.9A
Open-circuit voltage(Voc): 43.2V
Short-circuit current(Isc): 7.5A
Short-circuit current temperature coefficient: (0.065±0.015)%/ °C
Open-circuit voltage temperature coefficient: -(80±10)MV/°C
Peak power temperature coefficient: -(0.5±0.05)%/ °C
NOCT(Air 20°C;Sun 0.8kw/m wind 1m/s): 47±2°C
Operating temperature: -40°C TO 85°C
Maximum system voltage: 600V DC
Power tolerance: ±3%
Feature:
1.STC: lrradiance 1000W/m2,Module temperature 25,AM=1.5
2.Nominal 24V DC standard output.
3.High efficiency, good quality.
4.High transmission tempered glass.
5.TPT imported from Krempel, Germany
6.Rugged design to withstands high wind pressure and snow load, easy installation.
7.Aesthetic appearance.
8.Design to meet unique demand of customers.
9.25 years module output warranty.
10.Built-in diode prevents reverse charging
Application:
