Specifications
Wire diameter:5.0-12mmWeft wire distance:Mini 50mm
Line wire distance:100-300mm
Welding speed:50 times/min
Rated power:125K

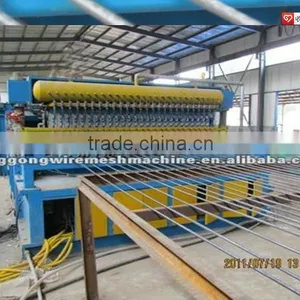

This kind machine is our latest developed reinforcing mesh welding machine. The line wire and the weft wire are pre-straight and pre-cut. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto. The welding power comes from the spring. It’s easy to control the welding pressure . The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper. The new machine added the bear wire net and carry equipment that makes the working more convenience . The welding part is used the springiness input wire trunking that makes the welding copper use for long time. This machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.
