Specifications
The Third Generation Sand Machine Equipment1.Even granule
2.High output
3.Low consumption
4.CE and ISO certificate

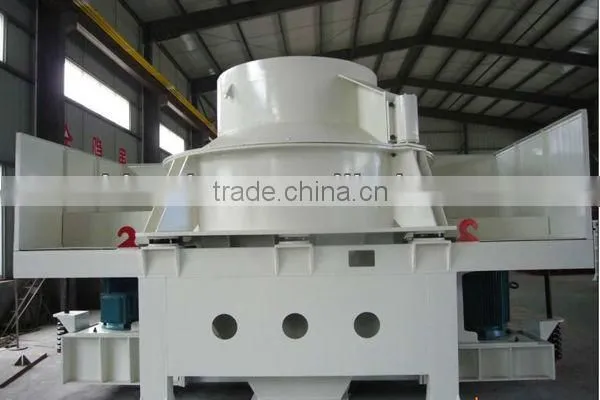

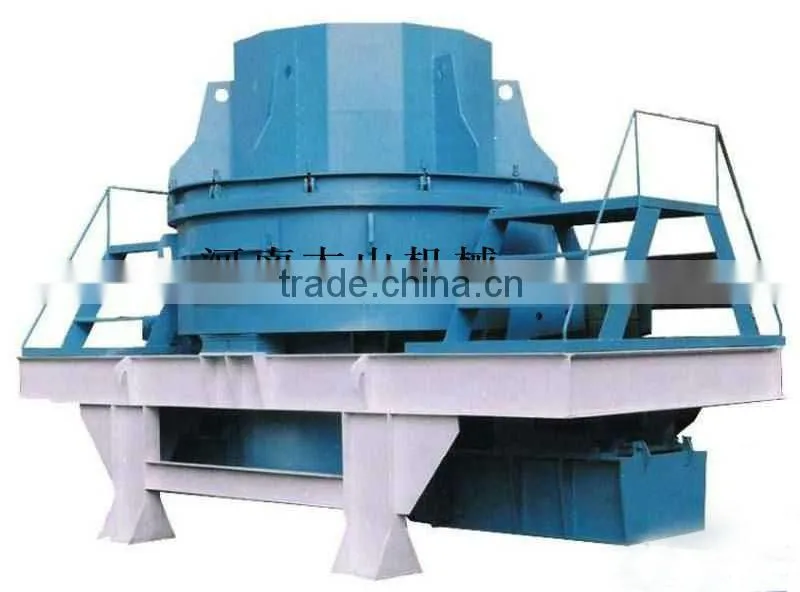

The Third Generation Sand Machine Equipment

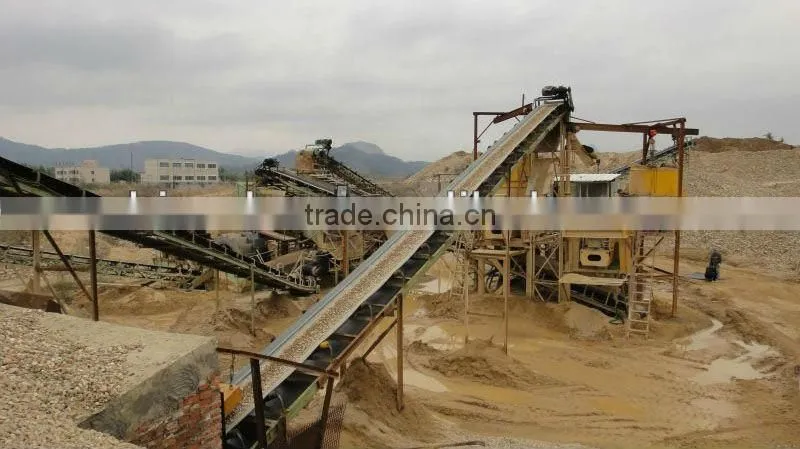

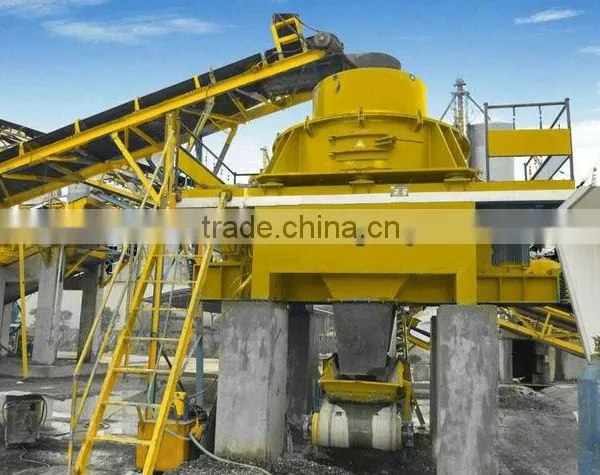

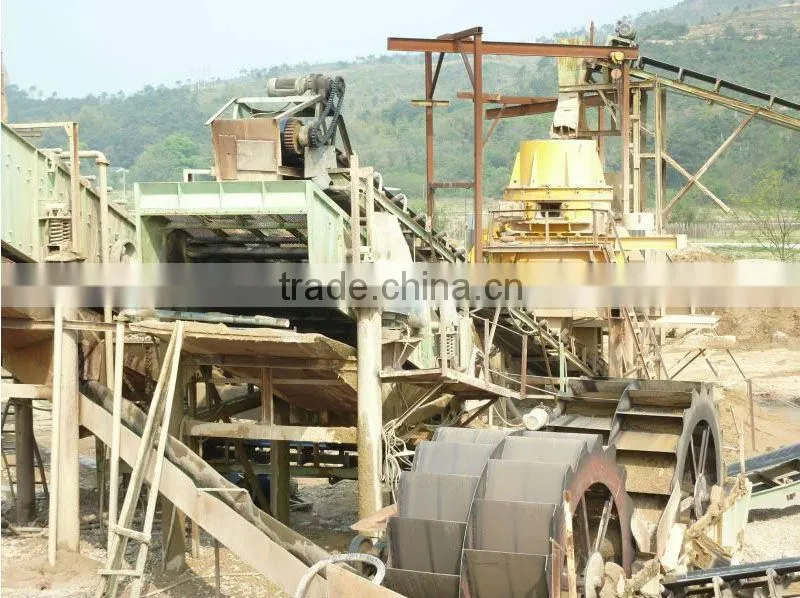

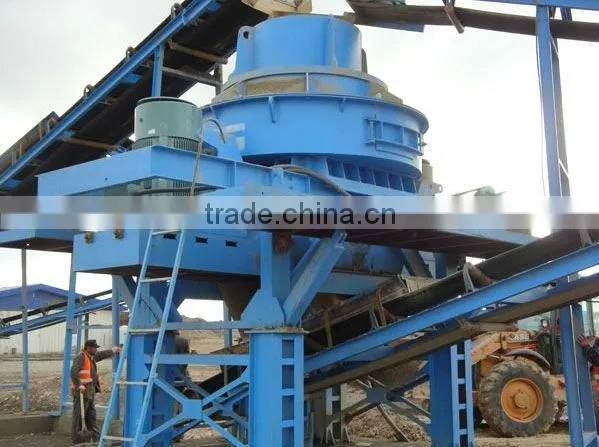

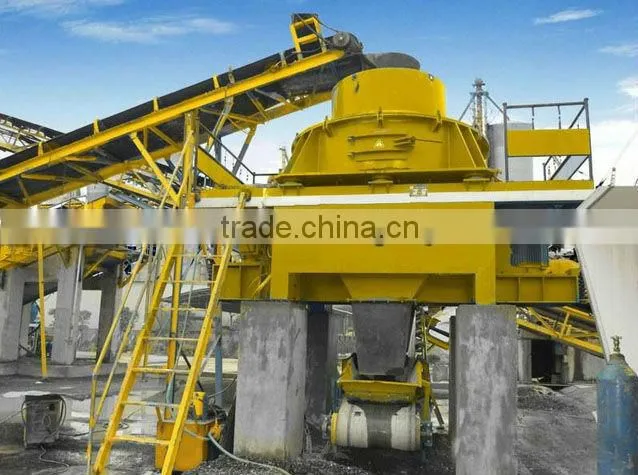

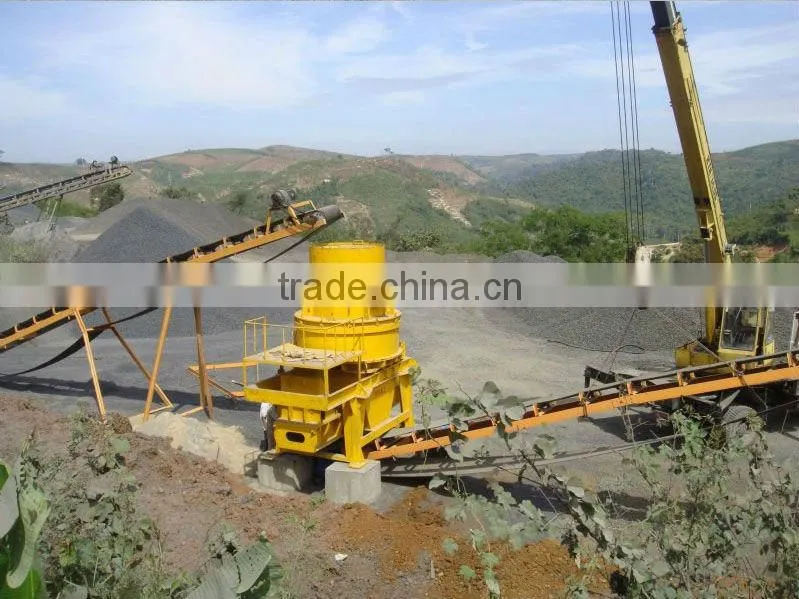

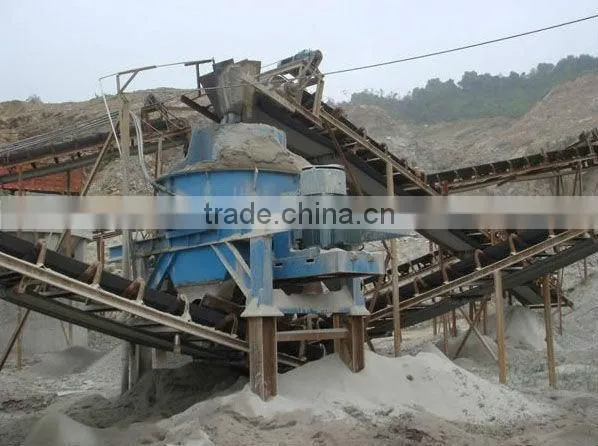

Successful Cases/ Sites
General Introduction of the machine
This series of crushers has been developed and improved by incorporating the advantages of the technology from both at home and abroad so that the structural design will be further optimized. The features of rational combination design of three crushing chambers,novel adjusting mechanism,effective control of uniformity of the product fineness easy access fir maintenance have made the hammer and screen plates replaced more easily.
Application
With its wide operation range and first class performance,it is the most effective and reliable crusher,especially suitable for fine crushing and medium fine crushing of grinding material,fire-resistant material,cement,quartz sand,steel grit,furnace cinder,copper ore,iron ore,gold ore,river gravel,concrete aggregate,asphalt aggregate,and brittle material.This highly effective and energy saving crusher is also a superior and first rate sand production equipment and can save up to 50% of energy,compared with traditional sand making machines.
Working Principle
With high speed rotating impellers, the Vertical Shaft Impact Crusher(Sand Making Machine) throws material out from center to circumference,by using the material’s own centrifugal force to cause impact with the impeller shoes or the anvil faces,resulting in rock-on-rock or rock-on-iron crushing.Due to precise manufacturing and complete tests,the Vertical Shaft Impact Crusher(Sand Making Machine) can guarantee smooth operation at high speed,long service life and superior crushing results.
According to customer’s requirements, the Vertical Shaft Impact Crusher(Sand Making Machine) can be equipped with closed rotors or open rotors.
Technical Parameter
model |
Feeder Opening (mm) |
Feeding (mm) |
Output size (mm) |
Output size (mm) |
Capacity (t/h) |
Motor (kw) |
||||
|
|
|
|
|
cement clinker |
limestone |
glass sand |
|
||
PXJ800×400 |
400×185 |
120 |
≤5 |
5-20 |
20-30 |
30-45 |
35-45 |
22-37 |
||
PXJ800×600 |
500×250 |
180 |
≤5 |
5-20 |
35-40 |
40-55 |
45-55 |
37-45 |
||
PXJ800×800 |
550×330 |
180 |
≤5 |
5-20 |
35-45 |
60-65 |
55-65 |
37-45 |
||
PXJ1010×1010 |
1000×350 |
180 |
≤5 |
5-20 |
45-55 |
60-75 |
65-75 |
45-55 |
||
PXJ1200×1000 |
1200×400 |
180 |
≤5 |
5-20 |
80-110 |
80-100 |
80-100 |
90-110 |
||
PXJ1200×1200 |
1200×450 |
180 |
≤5 |
5-20 |
100-110 |
90-100 |
90-120 |
110-132 |
||
PXJ1400×1400 |
1500×500 |
190 |
≤5 |
5-20 |
100-150 |
100-150 |
120-150 |
160 |
||
PXJ1600×1600 |
1600×550 |
190 |
≤5 |
5-20 |
170-210 |
190-250 |
190-250 |
250 |
||
PXJ1800×1800 |
1800×800 |
190 |
≤5 |
5-20 |
250-270 |
280-310 |
280-310 |
280 |
||

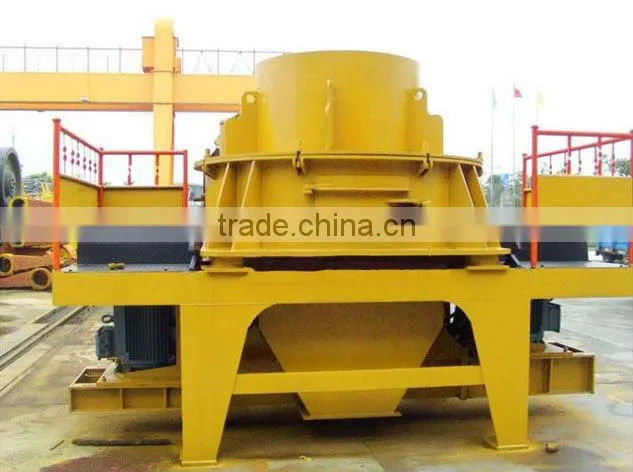

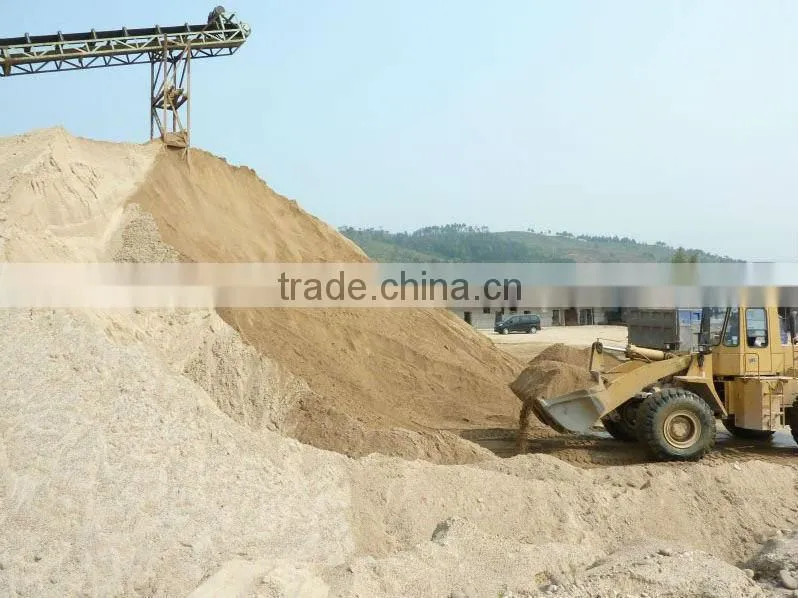

Pictures for your reference
Dear Customers,
To choose the appropriate model for you, I need to know the following information:
1. What's your raw materials and its size?
2. What's the discharging size?
3. What's the required capacity(t/h)?
4. Other special requirements.
If any questions, please kindly contact me.
