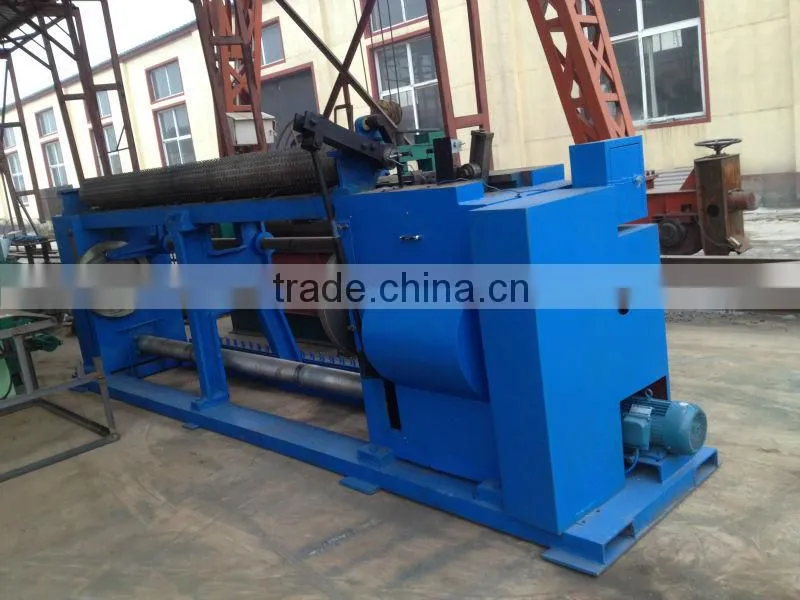

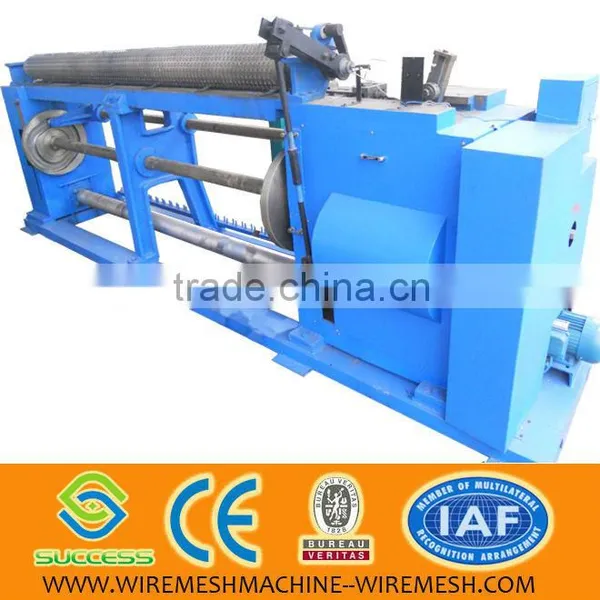

hexagonal wire netting mesh machine
- 10 Set / Sets per Month
- xingang
- T/T L/C D/P D/A Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING photovoltaic solar panels recycling production line
- Stainless Steel Double Kitchen Sink Middle Weld Seam Rolling Machine
- Stainless steel handmade sink hydraulic power of light direct press
- Stainless steel handmade sink R corner press machine Electrical box R corner press machine
- DOING supply photovoltaic solar panels recycling machine
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JG, JG | Model Number: | JG-LJW, JG-LJW |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
hexagonal wire netting machine1,width,2600mm
2,wire diameter,0.45-1.5mm
3,mesh size: 1'' 2'' 3''
hexagonal wire netting machine
Based on the principle of clockwise and counterclockwise twisting,it is unnecessary to make the iron wire spring form for this machine to work consecutively so that the productivity increases a lot. The features of the machine are shown below:
.It can reach 65 cells per minute as its maximum speed and adjust the speed depending on different raw materials in order to reduce breaking rate.
.Wide breadth of net.NW can weave double 1.1meters breadth,and can weave single 2.2meters.
.Tidy and consistent cell distribution .It is easy to take a thread anywhere.
.Equipped with clutch brake and spot start.Easy to operate and reliable.Fewer requirements for operators.
.Reliable centralized lubrication.Easy to use.
.Solid and durable.Easy to maintain and adjust.
Product Model | Rated Sisze of Cell(mm)L | Max Net Breadthmm | Max Thread Diameter(mm) | Producing Efficiency(Meters/Hour) | Volume(LXWXH)mm | WrightT | |
Single Breadth | Double Breadth | ||||||
ZJ. 1/2" | 14.514 | 2600 | 1200 | 0.7-0.9 | 55 | 4500X2000X1500 | 4.6 |
ZJ. 3/4" | 22.85 | 26000 | 1200 | 0.7 | 63 | 4500X2200X1450 | 4.6 |
ZJ.J1" | 25.78 | 2600 | 1200 | 0.7-0.9 | 67 | 4500X2200X1450 | 4.6 |
ZJ. 1"G | 28.274 | 2600 | 1200 | 0.7-0.9 | 68 | 4500X2200X1450 | 4.6 |
ZJ. 1" | 28.667 | 2600 | 1200 | 0.7-0.9 | 70 | 4500X2200X1450 | 4.6 |
ZJ. 1-1/4" | 32 | 2600 | 1200 | 0.7-1.0 | 135 | 4500X2200X1450 | 4.6 |
ZJ. 1-1/2" | 43 | 2600 | 1200 | 0.7-1.2 | 169 | 4500X2200X1450 | 4.6 |
ZJ. 2" | 57 | 2600 | 1200 | 0.7-1.2 | 170 | 4500X2200X1450 | 4.6 |
normal packing
we can send engineers to help clients about machine installation , fixed, operation training
We follow the policy of Seeking Development through Quality and Establishing Reputation Via Quantity Products. We try to meet customers’ requirements with excellent quality products. We have become regular supplier for some customers in India, Uzbekistan, Italy,Mexico and other countries with its good quality wire mesh machines and first-class service.
Our factory seeks development by creation and existence by quality.And our factory has more than 10 researchers with high diathesis,so the product produced by our factory has various kind and high quality. And we can also produce various wire mesh machines according the clients’ requirement.
We sincerely expect with your earnest and cooperation and get outstanding achievement
FOB CIF CFR L/C
