Help CenterSteel Grating Welding Machine
Related Products
Specifications
steel grating welding machine1.Professional team
2.ISO9000 quality system
3.Best quality and price
4.Sincerely service
steel grating welding machine
1.Professional team
2.ISO9000 quality system
3.Best quality and price
4.Sincerely service

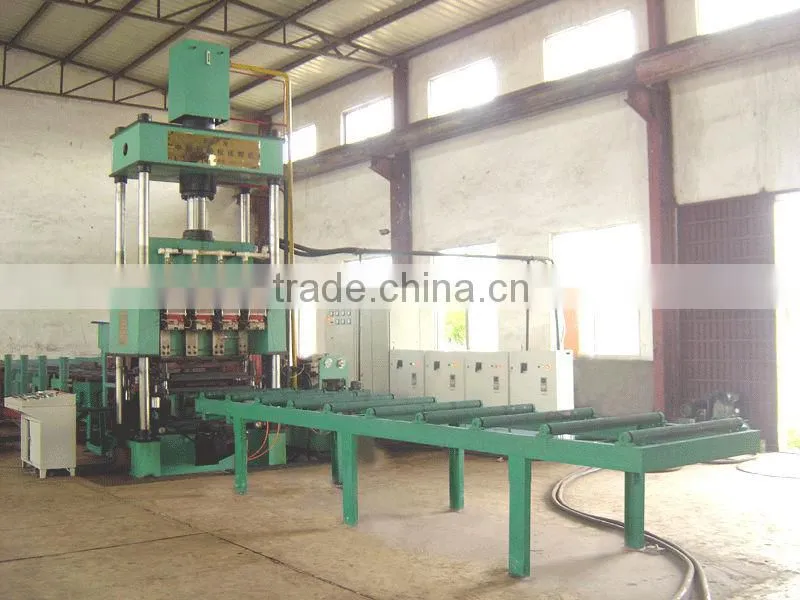

24Meters long,3.8meters wide production line
devided into person,welder person cutaccording to
rocess worker of end head person,finihed product deposit engineering locationg,worker of material loading flat rolled steel horizonatal pole round steel hands ove the material automatically then weld automatically,is it cut location,worker of materail car hand ove the fineshed product to the depositing area of the fineshed product to reach
then one is put automatically,pile th platform to drop automatically is full of unitil piling up the platform, operate and introduce the car artificially and put out the fineshed product one.
Model |
Project |
JG-1600 |
Welding power |
Control Type |
DC output |
Welding capacity kVA |
|
1600kVA |
Welding voltage |
|
3Phase380V/50Hz |
Production of grating specifications |
Grating length |
6000mm(Customizable) |
Grating width |
|
1000mm(Customizable) |
Flat pitch |
|
30,40mm(Customizable) |
Each bar maximum contact area and load flat steel |
|
2000mm2 |
Load Specifications |
Width for flat steel |
19--90mm |
For flat steel thickness |
|
3--7mm |
Bar size |
|
5×5--8×8 |
Equipment function |
The form of hydraulic pressure welding host |
Four-triplex |
The number of each welding bar |
|
2 |
Maximum pressure bonding host |
|
200T |
Load flat steel feeding mode |
|
Automatically sent to manual positioning |
Admitted to bar mode |
|
Automatically sent manually aligned |
Welded steel grating step approach |
|
Pinch automatically reciprocating |
