Product Details
| Condition | New | Type | Other, Sprial Separator, Spiral Classifier | |
| Place of Origin | Henan, China | Brand Name | DSM | |
| Model Number | FG,2FG | Voltage | 110-460V as local condition | |
| Power(W) | 2.2-40 kw | Dimension(L*W*H) | Varies type | |
| Weight | 3-80 t, 2-80t | Certification | ISO CE | |
| Warranty | 18 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Wolframite Ore Weir Spiral Classifier1. reliable performance
2. High quality
3. Good Price
4. Long Using Life
Spiral Classifier for Mining, Wolframite Ore Weir Spiral Classifier
Usage of Weir Spiral Classifier:
Wolframite Ore Weir Spiral Classifier are widely used in the separation of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.
Characteristics of Weir Spiral Classifier:
Wolframite Ore Weir Spiral Classifier features simple structure, reliable working conditions and convenient operation. Because different grains have different specific gravity and sedimentation rates in liquid, this product allows the fine ore to flow in the water, while coarse ore sinks to the bottom.
Weir Spiral Classifier Advanced advantage:
1. Low power cosumption
2. Heavy duty, long workinglife
3. Powerful self-contained spiral lifting device
4. Continuous spiral raking
5. High classifying efficiency
6. Wide choice of weir height
7. Rigid tank and substructure
8. Wide choice of tank design
9. Wide range of industries serviced
Main technical parameters of Weir Spiral Classifier:
Model | Spiral diameter (mm) | Trough length (mm) | Spiral rotation speed(r/min) | Capacity(t/d) | Power(kw) | Weight (t) | ||
Return sand | Overflow | Driving | Flifting | |||||
FG7.5 | 750 | 5500 | 6-10 | 340-570 | 65 | 3.0 | Manual | 2.7 |
FG10 | 1000 | 6500 | 5.0-8.0 | 675-1080 | 110 | 5.5 | Manual | 4.43 |
FG12 | 1200 | 6500 | 5.0-8.0 | 1170-1870 | 155 | 5.5 | 1.5 | 8.7 |
FG15 | 1500 | 8400 | 4.0-6.0 | 1830-2740 | 235 | 7.5 | 2.2 | 12.5 |
FG20 | 2000 | 8400 | 4.0-6.0 | 3240-5400 | 400 | 11 | 2.8 | 20.5 |
FG24 | 2400 | 9210 | 3.6 | 4650-7450 | 580 | 15 | 3.0 | 25.6 |
FG30 | 3000 | 1250 | 3.2 | 11625 | 890 | 22 | 4.0 | 37.7 |
2FG12 | 1200 | 6500 | 5.0-8.0 | 2340-3740 | 310 | 5.5x2 | 1.5x2 | 14.0 |
2FG15 | 1500 | 8400 | 4-6.0 | 3660-5480 | 470 | 7.5x2 | 1.5x2 | 21.1 |
2FG20 | 2000 | 8400 | 3.0-5.5 | 7780-11880 | 800 | 11x2 | 2.8x2 | 36.5 |
2FG24 | 2400 | 9210 | 3.6 | 13600 | 1160 | 15x2 | 3x2 | 46.8 |
2FG30 | 3000 | 12500 | 2.0-3.2 | 14600-23400 | 1785 | 22x2 | 4x2 | 73.0 |

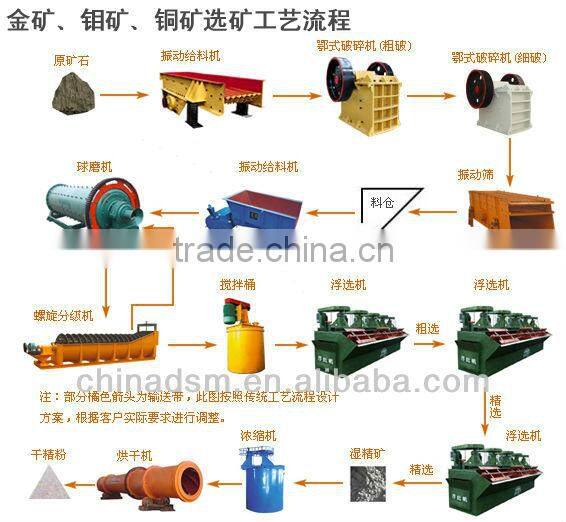

Spiral Classifier/Separator Mineral Processing Process:
