High Efficient Silica Sand Ore Washer,dashan Hot Selling

High Efficient Silica Sand Ore Washer,dashan Hot Selling photo-1
US$ 2,000 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Motor Type:
AC Motor
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Motor Type AC Motor
Place of Origin Henan, China
Brand Name dsm
Certification ISO9001:2008
Warranty One Year, one year
After-sales Service Provided Engineers available to service machinery overseas
Model Number XS series











 Specifications of silica sand ore washer;


1.highly purified stone
2.wide applications
3.low consumption
4. cheap













Application of silica sand ore washer;




               silica sand ore washer is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc. Our sand washing machine is a highly efficient machine designed on the basis of the detailed washing needs in mining industry and comes with features like good washing effect, reasonable structure, large capacity, and less sand loss during washing process. The transmission part of this sand washing machine is isolated from water and sand, which could greatly reduce the error rate of the machine.

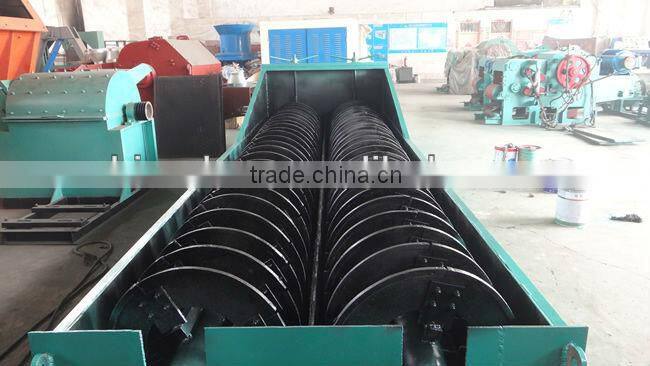

High efficient silica sand ore washer,dashan hot selling









Working principles of silica sand ore washer;





          Having been slowed up by the decelerator, the impeller rotates slowly with the motor. The sand and stone fed into the feeding tank flow into the launder, then roll together with the impeller and grind with each other to get rid of the dust and powder. At the same time, water is being added and the strong water flow washes impurities and light particles in the lauder away. After this process, the clean sand and stone are lift up by blades of the impeller. When it goes up slowly, the water begins to drop through the mesh and falls back to the washing launder. On one hand, water is removed from the sand and stone. On the other hand, the water can be fully used. Finally, the washed sand and stone fall to the discharge chute from the rotary impeller.

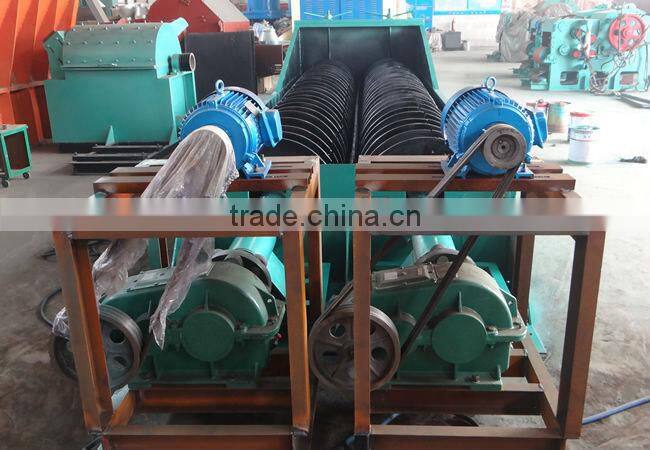

High efficient silica sand ore washer,dashan hot selling

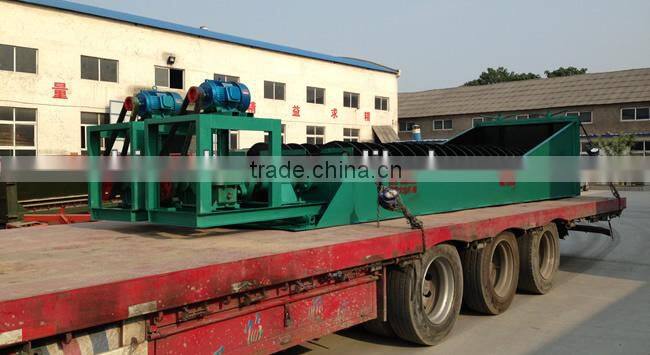

High efficient silica sand ore washer,dashan hot selling

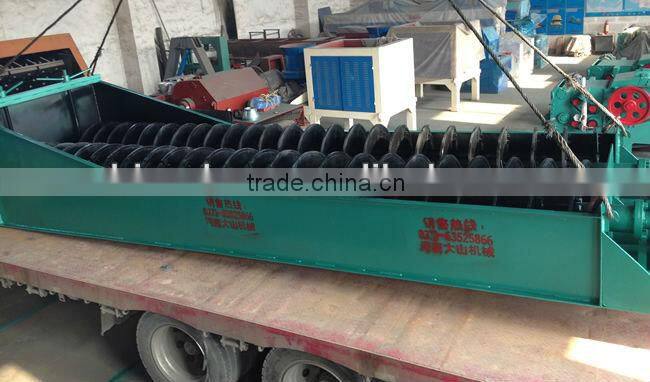

 High efficient silica sand ore washer,dashan hot selling











Technical parameters of silica sand ore washer;







Models

XS0540

XS0745

XS1050

XS1254

XS1554

XS2060

Diameter  (mm)

500

750

1000

1200

1500

2000

Length (mm)

4000

4500

5000

5400

5400

6000

Capacity (t/h)

3-10

5-20

10-30

30-50

50-80

80-120

Speed of screw (r/min)

18

18

18

16

16

14

Motor Power(kW)

5.5

7.5

11

15

22

30

Dimension (m)(L×B×H)

6.2×0.67

×1.3

6.2X0.8X1.5

7.3X1.25X2.2

7.3X1.44X2.4

7.3X1.85X2.8

8.2X2.45X3
