Type D Mud Pump Pressure Gauge

Specifications

1. Description

The Type D series Pump Pressure Gauge main application is the measuring of pulsing pressure such as seen in mud pumps and standpipes, it can also be used for measuring steady pressure in other applications. The dampening parts of the Pump Pressure Gauge work in the whole pressure range of the gauge and no adjustment is necessary. The Pump Pressure Gauge indicates steady as well as large pressure changes equally well. The fluid inside of the gauge serves as a damper in high vibration applications and needs to be left in the gauge at all times. The Pump Pressure Gauge is protected from the medium being pumped at all times and no medium should ever enter the gauge which would cause damage to the gauge. The Type D series Pump Pressure Gauge is totally waterproof and is build to operate in the harshest environments(Suitable for salt water).

2.    Specification

(1)      Pressure range                      Accuracy

                   0-16, 0-25                                    2.5%

                   0-35, 040                                     1.6%

(2)   Operation temperature; -35c to +55c

(3)   Gauge mounting; 2” NPT

(4)   Application; Mud Pumps and Standpipes

3.    Dimensions and Functionality

(1)  These gauges use a tuning fork, fluid cell system as the main                                                                                               components. This system has proven to be the most reliable for these types of operating conditions.

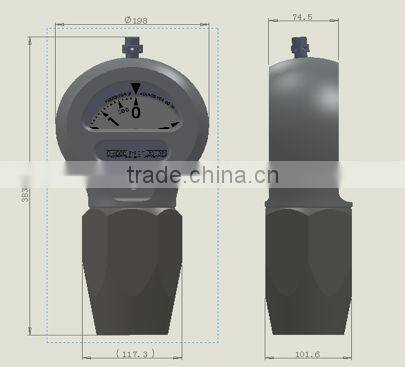

(2)  Pump Pressure Gauge Dimensions.
