Dual Pointer Compound Pressure Gauge

Specifications

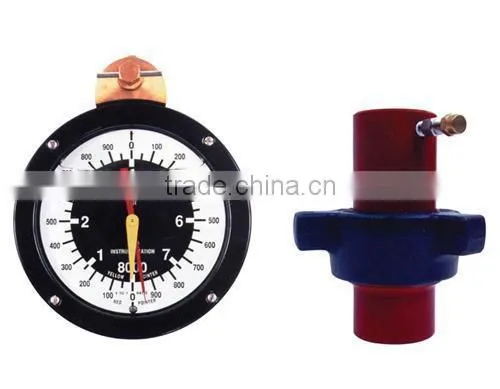

the system consists of a 6 inch gauge, gauge protector and a high pressure hose.

Dual pointer 4:1 compound pressure indicator systems deliver accurate measurements for mud, cementing, acidizing and fracturing operations

Features

1) 6" dial face for easy viewing

2) Rugged, accurate and dependable for years of trouble free service

3) Flexible mounting design makes this gauge perfect for use on oil well pumping
trucks

4) Full 360" pointer sweet indicates the smallest pressure changes

5) Operator-adjustable damper allows for more accurate readings under extreme conditions

6) Standard capacities: up to 120MPa

7) Available in imperial or metric7) Avaliable with diaphragm protector or 1:1 piston seperator

To order Specify

Required capacity

Hose length

Box mount or panel mount
