China Gold Supplier Pellet Making Mill For Winter Heating hot in USA
- 100 Set / Sets per Month
- QingDao port/ShangHai port
- T/T L/C D/P D/A Credit Card PayPal
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Dashan, Dashan Mountain |
Model Number: | SZLH-250 | Voltage: | 380V or depend on your need | Power(W): | 11/15 |
Dimension(L*W*H): | 1420*1200*1400mm | Weight: | about 2 ton | Certification: | ISO ,CE |
Warranty: | 12 months for main machine | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. CE certification2. Good quailty
3. Good after sell service
4. Low noise

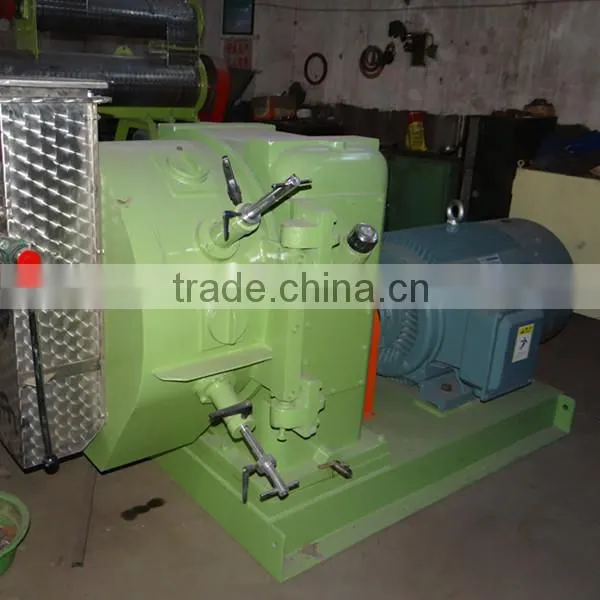

China Gold Supplier Pellet Making Mill
For Winter Heating hot in USA
Features
1.vertical feed, directly in place.
2.mold static pressure wheel rotation, the material of centrifugal, uniformly distributed around.
3.abrasive layer, up and down dual-use, reduce cost, increase benefits.
4.circular mold, made to the structure, conducive to granulating chamber radiator cooling.
5.independent lubrication, high pressure filter, clean clear.
.
Scope:sawdust,straw,cotton stalk, rice husk, peanut shell, bamboo powder, palm and other plant waste; cement, ash, carbon powder, paper and other chemical raw materials of various kinds of difficult adhesive, molding difficult.
Purpose:biofuel plant, wood processing plants, chemical plants, wineries, wineries, reuse of waste residues, is high density granulating molding equipment.
Technical parameter and models
Mold | SZLH-M250 | SZLH-M320 | SZLH-M350 | SZLH-M420 | SZLH-M 508 |
output (t/h) | 0.1-0.2 | 0.3-0.5 | 0.5-0.8 | 1.5-2 | 1.5-2.5 |
Main motor power(kw) | 11/15 | 37 | 55 | 90/110 | 132/160 |
Conditioner power(kw) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
Feeder power(kw) | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 |
Ring die inner diameter(mm) | 250 | 320 | 350 | 420 | 508 |
granular size(mm) | 6-12 | 6-12 | 6-12 | 6-12 | 6-12 |
Dimension(mm) | 1420×1200×1400 | 2200×1000×1500 | 2500×1100×1600 | 2800×1150×1730 | 3000×1260×1860 |
Weight(ton) | 1 | 2.5 | 3.5 | 4 | 4.5 |
The mixed powder that moisture content is less than 15% goes into the feeding screw from the hopper and obtains suitable materials amount through adjusting speed of continuously viable motor. Then the mixed powder goes into the stirrer. In the stirrer, powder materials are mixed by stirring rod and modulating with steam. If need to add honey or oil, they are also modulated with steam from the cylinder(oil adding amount is less than 3%, or it will be difficult to shape). After modulating, the temperature of mixed powder can be 64-85°C, humidity can be 14-16%. The materials after modulating goes into the chute. Removal the iron impurity in the powder materials through iron remover. Finally, the powder materials are pelleted in the pressing room.
1. Lifting 2.base 3. Door cover 4. Discharging chute 5. Chute 6. Press room 7. Observation window 8. Stirrer 9. Lifting device 10. Speed adjust motor 11. Reducer 12. Hopper 13. Blanking door 14. Feeder 15. Reducer 16. Stirring motor 17. Limit switch 18. Main driving housing 19. Main motor 20. Coupling 21. Cutter mechanism
We will provide the best service within reasonable price. If you have any questions or interested in our wood pellet machine line, you can connect with us. Tell us the details about your request, we will reply you ASAP and design the products according to your need.
Questions
1. What's your payment terms?
We can accept various payment terms if it is convenient for you.
2. Will you send engineers to install the plant?
Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
3. How long is your guarantee?
One Year (Calculated from the equipment arrives the customer’s side.). After this period we will definitely still support you when needed. You will be welcome to contact us with any problem might experience.
Hennan Dashan Mining Machinery Co., Ltd is an import and export enterprise.
The main products of the company are straw press block machine, stalk crusher , cotton stalk the grinder, multi-functionnal wood powder grinding machine, cutting machine,grass shredder, drum chipping machine, wood peeling machine, wood chip screening machine, sawdust machine, conveyor, and dryer the company integrates research, production, and sales as a whole.The company has long-term cooperation with domestic and foreign research institutes, has introducing adwanced technology, process and testing equipments at home and abroad.
