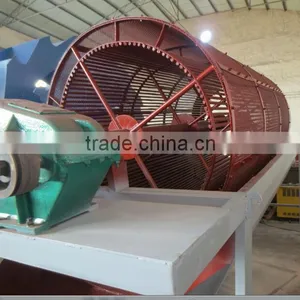

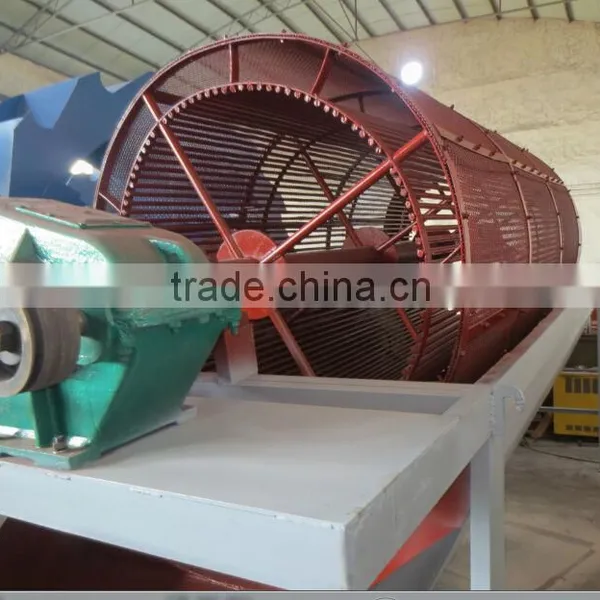

Hot Sale Gravel Sand Rotary Drum Screen
- 80 Set / Sets per Month
- Tianjin Shanghai etc.
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Rotary screen | Application: | Other, Ore, ore classification, screening, washing |
Place of Origin: | Henan, China | Brand Name: | DSM | Model Number: | GTS Series |
Warranty: | 12 months after sale | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Hot Sale Gravel Sand Rotary Drum Screen1. Multiple screen size
2. Easily changed screen plates
3. Largest capacity
Hot Sale Gravel Sand Rotary Drum Screen
This Gravel Sand Rotary Drum Screen is widely used for screening and classifying mineral materials in the industry like metallurgy, mining, chemical, coal, building materials, abrasives, and other industries. This series screen includes two types: the open type, the closed type.
Working principle:
The Gravel Sand Rotary Drum Screen consists of hopper, screening drum, frame, motor and decelerator. The rotary drum device is connected with the motor by shaft coupling through motor reducer, and is driven by the motor to rotate around the axis shaft line. When the materials flow into the rotary drum device, as a result of the inclination and rotation of the rotary drum device, the materials on the screen surface will rotate and roll, finally the qualified materials (undersize materials) will be discharged through the screen mesh which is installed around the excircle of the rotary drum, and the unqualified materials (oversize materials) will be discharged from the end of the rotary drum. The materials rotate and roll in the rotary drum, so the materials stuck in screen pores can be ejected out to prevent the screen pores from being blocked.
Features:
1) Configured for classification, screening, washing
2) Large processing capacities
3) Smooth running, low noise
4) Longer screen life and less blocking
Applicable Industry:
1) Quarry:gravel, clay, mountain meal, sand, etc.
2) Coal Industry: lump coal, coal dust, coal washing, etc.
3) Cold Mine: gold screening and washing
4) Chemical Industry:sifting calcium oxide, compost
5) Metallurgy, construction,mineral-selecting,etc.
Basic Classification:
1) Construction of material: carbon steel, mild steel, stainless steel
2) Trommel screen type: sealed type, open type
3) Drum type: round, hexagon
Customized Functions:
1) With large size hopper for feeding.
2) With dust-proof device.
3) With pump for mineral ore washing, such as gold, sand, etc.
4) With belt conveyors and auto-clean systems for compost sifting.
