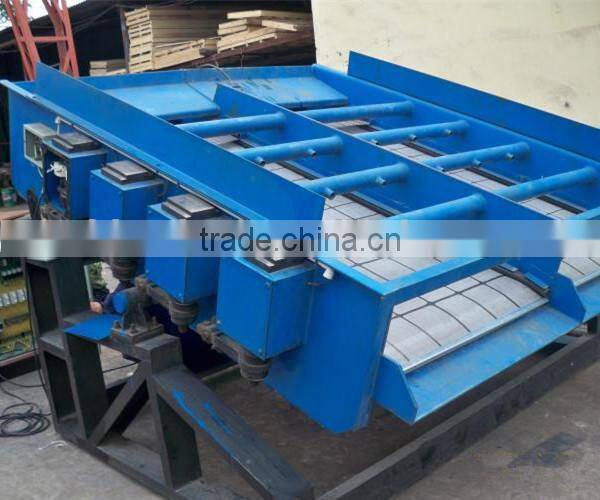

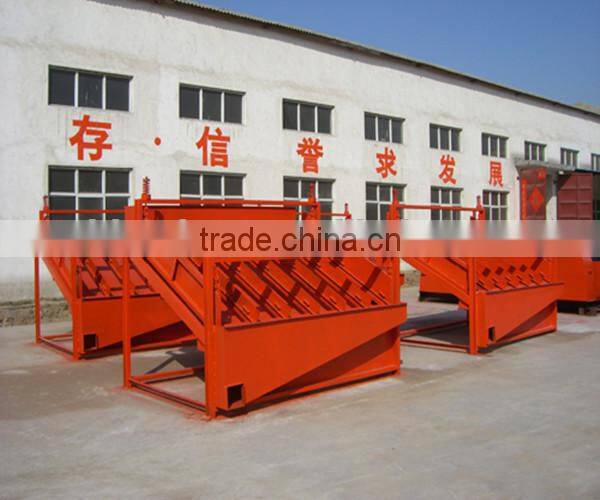

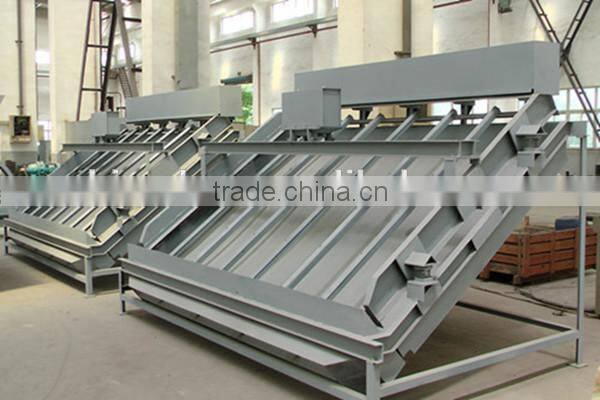

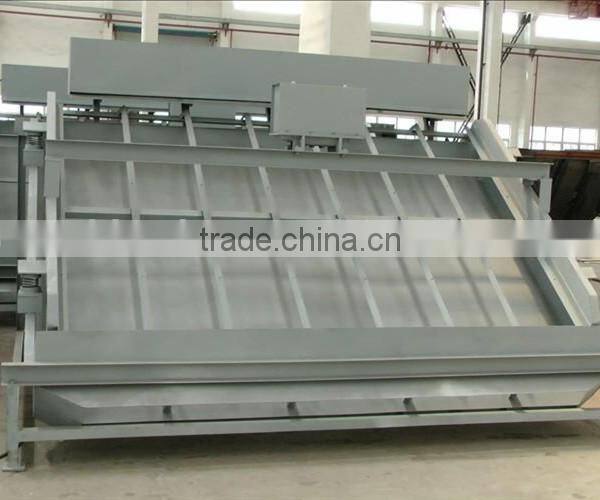

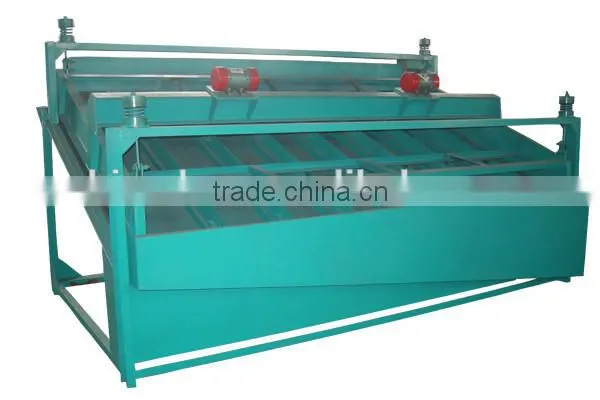

ISO CE Approved High Frequency Construction Linear Vibrating Screen for Sale
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Linear | Application: | Ore |
Place of Origin: | Henan, China | Brand Name: | China DSM | Model Number: | GPS4/5/6/8 |
Voltage: | 220/380 | Power(W): | 720-2200 | Certification: | ISO CE |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Frequency Construction Linear Vibrating Screen introduction:
High Frequency Construction Linear Vibrating Screen consists of vibration exciter; ore pulp distributor, screen frame, machine frame, suspension springs and sieve, etc.
High Frequency Construction Linear Vibrating Screen application:
This series screens are always used in processing minerals such as ferrous metals including hematite magnetic and nonferrous metals including lead, zinc, gold and silver etc. This machine works in a recalculating network with ball mill, which can upgrade the fineness of ferrous and nonferrous metals. Its efficiency is twice as that of spiral classifier.
Working Principle of High Frequency Construction Linear Vibrating Screen :
The screen is with high efficiency, small amplitude and high frequency. Different from the traditional screens, because of the high frequency, the screen can destroy the surface tension of pulp and reduce the high speed vibration of small granularity on the sieve, and increase the separating of large-density useful mines and the contacting probability of the smaller size materials with the sieve pore. Therefore it is a helpful condition to separate the smaller size materials, especially the big-density materials and pulp which can get through the sieve pore together.
Features of High Frequency Construction Linear Vibrating Screen
High efficiency, small amplitude and high frequency of screening; it differs from the conventional screens with breaking of the surface tension of pulp and small granularity high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and pulp get through the sieve pore together. Its screen is made of stainless steel or nylon. The obliquity of the sieving is adjustable. If the obliquity is close to 55º, end product with fineness of 300 meshes occupies 75%.
Technical parameters of High Frequency Construction Linear Vibrating Screen :
Model | Screen area (m2) | Density | Capacity (t/h) | Power (kw) |
GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
1.Install and debug the equipment;
2.Send the first-line operators on site;
3.Examine the equipment regularly.
