1. Suitable for drying both hardwood and softwood.
2. Economical and energy efficient.
3. Reliable performance
4.New kilns for refurbishing existing ones.
5. Quick delivery times.
6. Tailored solutions.
| Maximum drying temperature | 110°C |
| Kiln Housing | Stainless Steel or All Aluminum or Masonry |
| Insulation | Fiber Giass 100mm to 200mm |
| Gate System | Sliding lifting kiln door |
| Control System | LIGNOMAT Fully Automatic Control System |
| Wood Probes | Wirebound and Wireless |
| Fans | Axial Fans 800mm/1200mm,Reversible |
| Heating Source | Hot Water or Steam or Thermal Oil |
| Kiln inner dimensions: | Width 4320mm |
| Depth 6480mm | |
| Height 5700 mm | |
| Stack dimensions: | Width 4000 mm |
| Depth 4500 mm | |
| Height 4500 mm | |
| Kiln capacity: | Approx 40m3/corresponding to 25mm of thickness of material to be dried and 25mm stickers |
| Type of door: | Lift-sliding door |

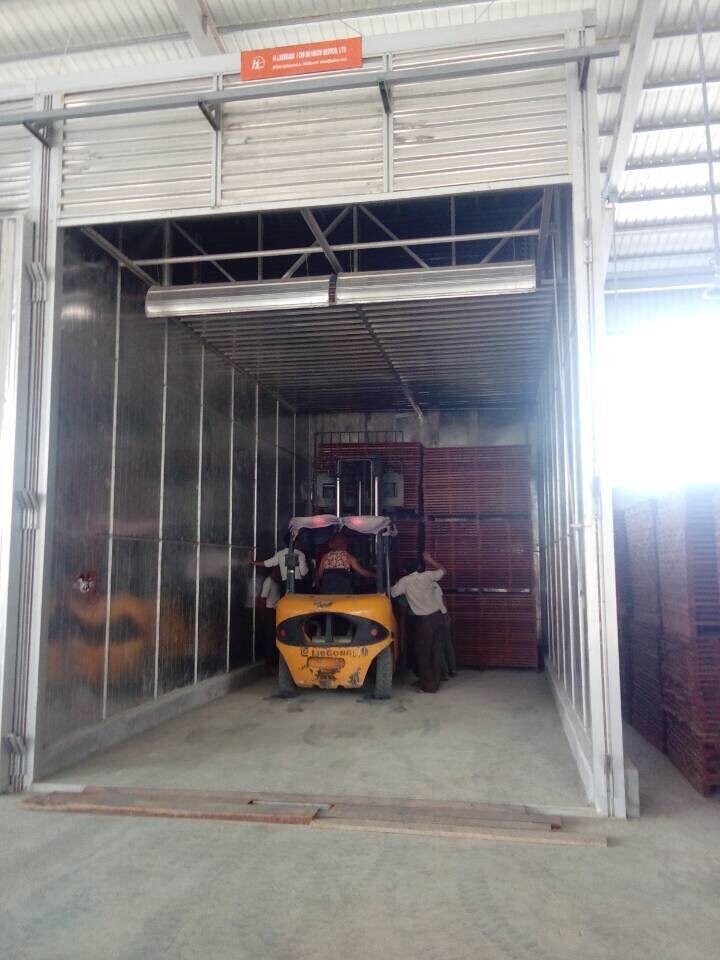

| Way of loading: | Forklift |
| Performance Data: Model LDFJ-40 | |
| Bearing structure: | Aluminum alloy |
| Heating medium: | Hot water 90C |
| Humidification medium: | Water 20C |
| Number of fans: | 2 units |
| Diameter of fan: | 800mm |
| Volume of circulating air: | 30,000 m3 /h |
| Motor: | 3kw, class IP55 |
| Electricity demand: | 18kw |
| Voltage & Frequency: | 380v, 50Hz |
| Snow Loading: | 150 Kg/m2 |
| Wind loading: | 120 km/h |
Measurement.:
Capacity m3 |
Kiln Inner dimensions |
Stack Dimensions |
Number of Fans |
LDFJ-40 |
4.23×4.68×5.7 |
4.0×4.5×4.5 |
2 |
LDFJ-50 |
4.32×7.7×5.7 |
4.0×5.8×4.5 |
3 |
LDFJ-60 |
4.32×8.64×5.7 |
4.0×6.6×4.5 |
3 |
LDFJ-80 |
6.48×7.7×5.7 |
6.2×5.8×4.5 |
3 |
LDFJ-100 |
8.64×7.7×5.7 |
8.4×5.8×4.5 |
5 |
LDFJ-120 |
8.64×8.64×5.7 |
8.4×6.6×4.5 |
6 |
LDFJ-150 |
12.96×7.7×5.7 |
12.5×5.8×4.5 |
8 |
LDFJ-180 |
12.96×8.64×5.7 |
12.5×6.6×4.5 |
9 |
LDFJ-200 |
12.96×9.37×5.7 |
12.5×6.8×4.5 |
10 |
LDFJ-250 |
12.96×9.37×6.4 |
12.5×8.0×5.0 |
12 |
LDFJ-300 |
21.4×9.3×5.7 |
21.0×7.3×4.5 |
15 |
LDFJ-400 |
25.68×9.3×5.7 |
25.0×7.3×4.5 |
20 |
LDFJ-NS135 |
9.72×8.64×5.4 |
9.4×6.6×4.3 |
7 |
LDFJ-NS150 |
10.80×8.64×5.4 |
10.5×6.6×4.3 |
8 |
LDFJ-NS160 |
11.88×8.64×5.4 |
11.5×6.6×4.3 |
9 |
Harbin Hildebrand Machinery Co.,ltd is a Sino-German joint venture, the first and biggest manufacturer of wood drying kiln in China, Sino-Germany joint venture, professional provide kiln drying for wood.
webiste:
Email: sales@hlgzsb.com
Whatsapp: 8615846586548
When cusomer choose a wood drying kiln, the points need to be pay attention:
(1) The loading according of the lumber need to be loaded and dried in each chamber. According to the wood species, thickness, initial and final Moisture content of the lumber, determine the required number of the wood drying kin.
(2) The heating medium of the kiln customer want to choose, for the conventional wood drying kiln, the common heating medium can be steam, hot water, thermal oil, electricty. All these types of heating medium, Harbin Hildebrand are available to provide the relevant kilns.
(3) From the process performance, using performance, technology and material, comprehensive consider to choose drying kiln.
The aluminum and stainless steel wood drying kiln is anti-corrosion and have a long using life. Harbin Hildebrand with Germany pateneted technology power vent heat recovery system, recovery the heat energy, can save 10% energy. The high density of fiber glass insulation wool which ensure the good warm-keep function of the kiln. Full automatic control system with all kinds of wood species drying schdule in the software.
(4) The reliable supplier with long time history, good reputation, who understand not only the technology of wood drying kiln but also can provide professional drying technicial support. The supplier can be responsible for equipment installation, commisioning, technical traing and after-sales service. Harbin Hildebrand Machinery Co.,ltd was founded in 1985, the first and biggest manufacturer of wood drying kiln in China, always enjoy a high reputation, put customer's satisfaction as our commission.
1, The first professional timber dry kilns manufacturer in China ( established in 1985) .
2, Joint venture enterprise with world famous enterprise Hildebrand's (the first modern timber drying kiln manufacturer founded in 1948) engineer, the hildebrand Germany technology.
3, You don't need worry technology or quality problems happened, as they have been solved in these 30 years. Patented technology shorten the drying time, energy saving and improved the drying quality.
4, You don't need worry about installation as our supervisor and installation workers will be on site to instruct the installtion of all equipment for the commissioning untill all equipment is properly functioning.
5, You are not able to find other supplier in China with fully automatic Lignomat control system, because we are the exclusive Lignomat kiln control system agency in China, and Lignomat only cooperated with the most trustworthy manufacturer.
6, You will be suprise with the low price with the high quality, and you will be satisfied with how much cost we save for you, how much profit we will bring for you.
7, You will enjoy the professional before- in- and after- service we provide, and have a pleasant cooperation with us.
