QMS Certificate banana screen for material sieve with Professional Certificate on sale

Brief Introduction

The Banana Linear Vibrating Screen , the shape of whose screen box is just like a banana, is a linear vibrating screen with a box type exciter, and the screen deck divide into several zones with different dip angles. From the feed end to the discharge, the ratio of materials quantity and flow speed on different zones is stable. Compared with common vibrating screen, the handing capacity can increase by 1.5 to 2 times, it is excellent for medium and fine size materials.

Application

The screen is mainly used for the classification of large and medium size materials with high content of fine particles , meanwhile the screen can be used for dewatering, demediuming and desliming. (The fine-grained material refers to the grain size smaller than half of the screen hole or even below.)

1.Quick change of the drive unit

2.Replacement service for the CCRB double unbalance drive units

3.Constant infinitely variable stroke

4.Low overall height owing to the horizontal arrangement of assemblies

5.Much larger feed quantity with the same screen area than conventional sieving machine

6.Multiple screen surfaces, much easier to sieve

7.Strong and durable structure, easy to maintain

8.ISO9001:2008 and SGS Audited

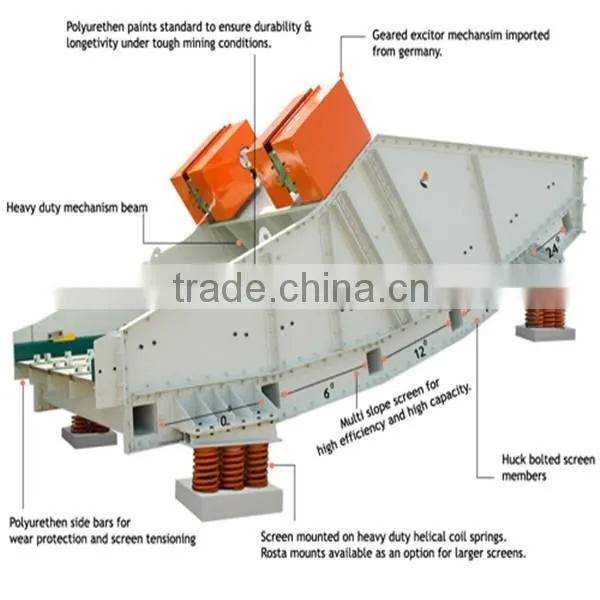

1. The vibrating box of the ZDS series vibrating screen (namely banana-shape vibrating screen) consists of 3 parts which have different inclination. The inclination from the inlet to the outlet decrease. The materials become less and less in the sieving process, while their motion speed become lower when they move forward the outlet. So the thickness of those materials from the inlet to the outlet is nearly same.

2. automatic synchronicity principle:

Eccentric blocks in the two shafts are driven to rotating at the same time by the electromotors.

3. Adjustment of the motion trajectory:

When the eccentric blocks of the same parameters in the two shafts rotate in the opposite direction synchronously, the vibrating box make a linear vibration. When the eccentric blocks in the two shafts are different in weight, their rotation will make the vibrating box vibrate in an ellipse trajectory.

4. You can also adjust the vibration amplitude by changing the weight of the eccentric blocks.

 We will provide the best service within reasonable price. If you have any questions or interested in our machines , you can connect with us. Tell us the details about your request, we will reply you ASAP and design the products according to your need.

Other Mining Machines

Dashan Mining Machinery Co., Ltd is a manufacturer.

The main products of the company are straw press block machine, stalk crusher , cotton stalk the grinder, multi-functionnal wood powder grinding machine, cutting machine,grass shredder, drum chipping machine, wood peeling machine, wood chip screening machine, sawdust machine, conveyor, and dryer the company integrates research, production, and sales as a whole.The company has long-term cooperation with domestic and foreign research institutes, has introducing adwanced technology, process and testing equipments at home and abroad.

 Customers

1. Are you a trading company or a manufacturer?

We are a manufacturer.

2. How can I get to your company?

You can get a flight to Zhengzhou Xinzheng International Airport  . and we can go to airport to pick you up directly.All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!

3. How long is your guarantee?

One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.

4. Will you send engineers to install the plant?

yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
