Wood/Log/Timber Drying chamber; wood drying camera
- 30 Unit / Units per Month
- Dalian Port or any other port in China
- T/T
- Energy saving wood drying kiln/timber drying kiln/log drying kiln/lumber drying kiln
- China first manufacturer wood/log/timber/lumber drying kiln, drying chamber, drying camera
- Kiln drying for hard wood soft wood firewood
- Top quality latest design wood drying oven, steam drying kiln
- High quality wood drying oven, drying room, wood drying chamber
- Kiln drying wood equipment, wood drying oven, wood drying camera
Product Details
Condition: | New | Place of Origin: | Heilongjiang, China | Brand Name: | HILDEBRAND |
Model Number: | LDFJ-40 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1. Suitable for drying both hardwood and softwood.
2. Economical and energy efficient.
3. Reliable performance
4.New kilns for refurbishing existing ones.
5. Quick delivery times.
6. Tailored solutions.
Technical Information:
Maximum drying temperature | 110°C(for steam) |
Kiln Housing | Stainless Steel or All Aluminum or Masonry |
Insulation | Fiber Giass 100mm to 200mm |
Gate System | Sliding lifting kiln door |
Control System | LIGNOMAT Fully Automatic Control System |
Wood Probes | Wirebound and Wireless |
Fans | Axial Fans 800mm/1200mm,Reversible |
Heating Source | Hot Water or Steam or Thermal Oil |
Kiln inner dimensions: | Width 4.32m |
Depth 6.48m | |
Height 5.7m | |
Stack dimensions: | Width 4.0m |
Depth 4.5m | |
Height 4.5m | |
Kiln capacity: | Approx 40m3/corresponding to 25mm of thickness of material to be dried and 25mm stickers |
Type of door: | Lift-sliding door |
Way of loading: | Forklift |
Performance Data: Model LDFJ-40 | |
Bearing structure: | Aluminum alloy |
Heating medium: | Hot water 90C |
Humidification medium: | Water 20C |
Number of fans: | 6units |
Diameter of fan: | 800mm |
Volume of circulating air: | 30,000 m3 /h |
Motor: | 3kw, class IP55 |
Electricity demand: | 18kw |
Voltage & Frequency: | 380v, 50Hz |
Snow Loading: | 150 Kg/m2 |
Wind loading: | 120 km/h |
Measurement.:
Capacity m3 Model | Kiln Inner dimensions W×D×H(m) | Stack Dimensions W×D×H(m) | Number of Fans |
LDFJ-40 | 4.23×4.68×5.7 | 4.0×4.5×4.5 | 2 |
LDFJ-50 | 4.32×7.7×5.7 | 4.0×5.8×4.5 | 3 |
LDFJ-60 | 4.32×8.64×5.7 | 4.0×6.6×4.5 | 3 |
LDFJ-80 | 6.48×7.7×5.7 | 6.2×5.8×4.5 | 3 |
LDFJ-100 | 8.64×7.7×5.7 | 8.4×5.8×4.5 | 5 |
LDFJ-120 | 8.64×8.64×5.7 | 8.4×6.6×4.5 | 6 |
LDFJ-150 | 12.96×7.7×5.7 | 12.5×5.8×4.5 | 8 |
LDFJ-180 | 12.96×8.64×5.7 | 12.5×6.6×4.5 | 9 |
LDFJ-200 | 12.96×9.37×5.7 | 12.5×6.8×4.5 | 10 |
LDFJ-250 | 12.96×9.37×6.4 | 12.5×8.0×5.0 | 12 |
LDFJ-300 | 21.4×9.3×5.7 | 21.0×7.3×4.5 | 15 |
LDFJ-400 | 25.68×9.3×5.7 | 25.0×7.3×4.5 | 20 |
LDFJ-NS135 | 9.72×8.64×5.4 | 9.4×6.6×4.3 | 7 |
LDFJ-NS150 | 10.80×8.64×5.4 | 10.5×6.6×4.3 | 8 |
LDFJ-NS160 | 11.88×8.64×5.4 | 11.5×6.6×4.3 | 9 |
LIGNOMAT Fully Automatic Coltrol System:
-All the products and technology from Lignomat are on basis of German HILDEBRAND drying techology.
-After over fifty years of improvement and renovation, Lignomat has received great support and reliance from European, North and South American, Southeastern Asia and African clients.
-Most advanced self-detect and alarm system.
-More than 5000 kilns are running safely and efficiently under control of Lignomat KCS.
-Accurate reading, easy operation and maintenance, online consultation and diagnosis, automatic generation of detailed analysis report nd chart.
-Fast drying time, less energy consumption, high lumber quality.
-Besides effective and reliable automatic wirebound systems, exclusive automatic digital wireless systems are available, no probe cable, no noise problem.

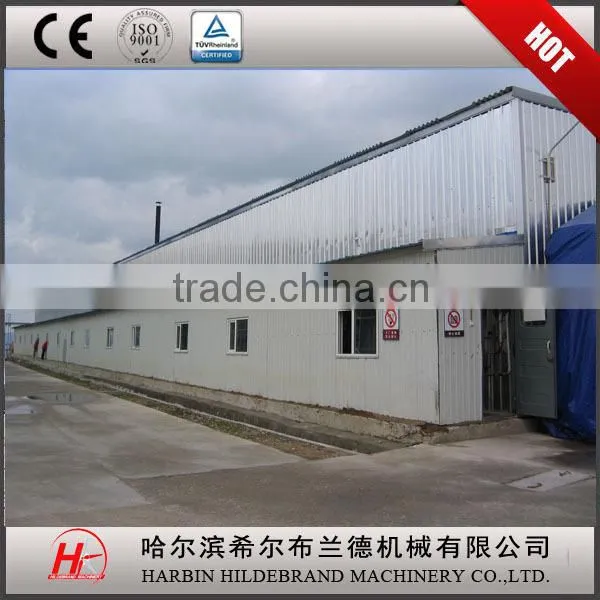

Kiln Building Structure
The kiln is built in all aluminum and stainless steel constructon for corrosion resstance and is installed on a concrete foundation. The construction consists of an aluminum inner wall and outer wall with fiber glass insulation in between. The multi-layer kiln structure can effectively balance expansion and shrinking stresses caused by temperature differences between the inside and the outside of the kiln while in operation. This ensures that the kiln stays prperly sealed. In cold area like syberia, we adopt 150mm thicknes profile and 35x35mm corrugated ceiling, which can afford 200KG snow load.

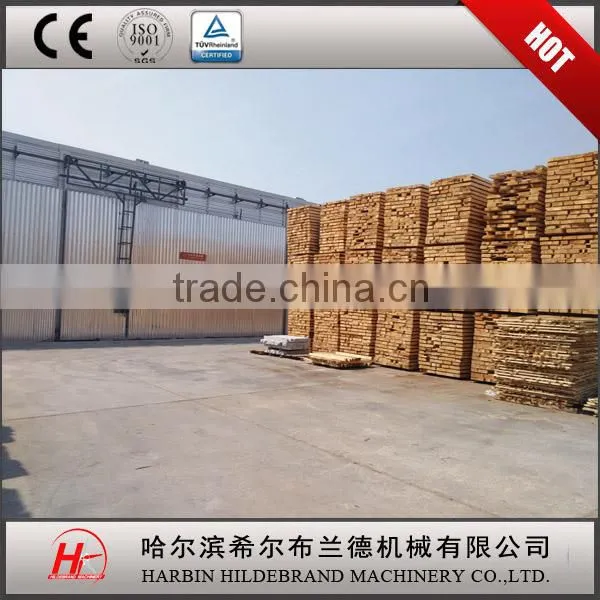

Door and Door Carriage
International popular one-piece kiln door is in all aluminum suspension rail style. The whole kiln door is prefabed with fiber glass insulation to thoroughly prevent thermal bridge effect and to optimize inslulation performance. Particular high temperature resistant PVC insulation gasket strips are not aging in high temperature condition for a long time and will keep kiln door closely sealed. Door carriage adopts international popular style, stable movement, convenient to lift. Single wheel main door bracket is easy to operate, stable lifting and dropping, flexible slide, 13m main door can be handled by only one single person.
Heat exchanger Powered vent system
The patent technology, allow for more enven venting and even climate conditions in the kiln, with the result of shorter drying times and improved drying quality of the lumber using less energy, making the whole system more enviromentally friendly.
1, The first professional timber dry kilns manufacturer in China ( established in 1985) .
2, Joint venture enterprise with world famous enterprise Hildebrand's (the first modern timber drying kiln manufacturer founded in 1948) engineer, the hildebrand Germany technology.
3, You don't need worry technology or quality problems happened, as they have been solved in these 30 years. Patented technology shorten the drying time, energy saving and improved the drying quality.
4, You don't need worry about installation as our supervisor and installation workers will be on site to instruct the installtion of all equipment for the commissioning untill all equipment is properly functioning.
5, You are not able to find other supplier in China with fully automatic Lignomat control system, because we are the exclusive Lignomat kiln control system agency in China, and Lignomat only cooperated with the most trustworthy manufacturer.
6, You will be suprise with the low price with the high quality, and you will be satisfied with how much cost we save for you, how much profit we will bring for you.
7, You will enjoy the professional before- in- and after- service we provide, and have a pleasant cooperation with us.
