International Excellent Solar Panel Module New Green Products

- Specifications
(1) solar panel
(2)easy to install
(3) lower price
(4)TUV/IEC/CE/CEC
(5) OEM service
(6)A grade cell efficiency

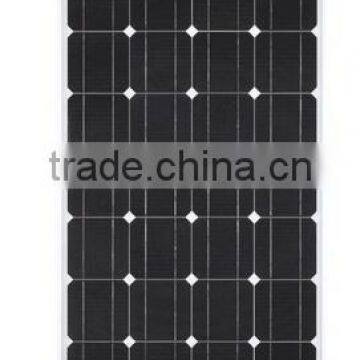

OEM monocrystalline solar panel pv module --- Factory direct sale

- Features
High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load, and extreme temperature variations
Attractive appearance
Unique frame design, high mechanical strength, and easy Installation

Efficiency
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability

- Electrical Characteristics
Cells size (mm): 156*133.7
Cells per module: 36pcs
Module size (mm): 670*1270*35cm
Power tolerance: +/-3%
Nominal peak power(WP): 120w
Nominal voltage(V): 17.5
Nominal current (A): 6.85
NOCT: 45+/-2degree
Voltage temperature coefficient: -0.33%/degree
Current temperature coefficient: +0.05%/degree
Power temperature coefficient: -0.23%/degree
Open circuit voltage (Voc): 21.6
Short cirsuit current(Isc): 7.41
Conversion efficiency: 15.94%
Operating temperature: -40 to+85degree
Max system voltage: 1000V DC
Surface Maximum Load Capacity 60m/s(200kg/sq. m)
Cell power 3.88w

Materials
-Glass
1. High light transmission no less than 91.6%
2. Excellent mechanical loading performance (5400 PA)

EVA
1. High light transmission
2.High GEL and peeling strength guarantying strong encapsulation
3. Good ultraviolet aging resistance
4. Excellent oxidation resistance
5. TUV certified

Cell
1. Excellent efficiency and long term reliability
2. Good performance under high temperature and low irradiance conditions
3.100% In-line Electroluminescence (EL) tested
4. Positive tolerance for each panel
5. Cell efficiency filling by 0.2 percentage
6. TUV certified

Back sheet
1. TPT based encapsulation and protection
2. Good aging resistance
3. Excellent adhesion and ultraviolet stability
4. TUV certified

Frame
1. Anodized/ Electrophoretic aluminium means durable protection from environment
2. Unique design profile ensuring strong mechanical loading performance
3. Silver/ Black color available

Junction box
1. Climate membrance: Excellent heat dissipation, prevent steam coming from outside and corrosion of diode by inside steam on the condition of big difference in temperature
2. IP65 protection
3. TUV certified

Connector
1. MC4 compatible/ IP65 or MC4 original/ IP67

Quality and Safety
1).120watt solar panel made of Germany manufactured Bosch solar cell.
2).Management Certification: ISO 9001:2008 TUV CE RoHS ISO 14001:2004
3).Factory directly supply
4).Perfect quality and long lifespan
5).5-year limited product warranty
6).25-year linear power warranty
7).12 years at 90% of minimal rated power output and 25 years at 85% of minimal rated power output
8).25 years quality warranty

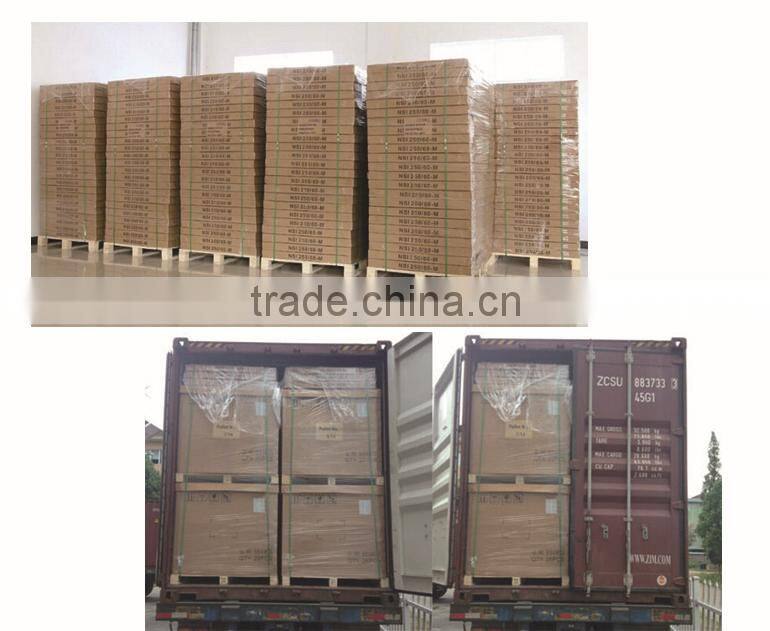

1. Packaging Detail: 2PCS/CARTON; 504PCS/40'; 520PCS/40'H
2. Delivery Detail: 10-15 days after receiving deposit

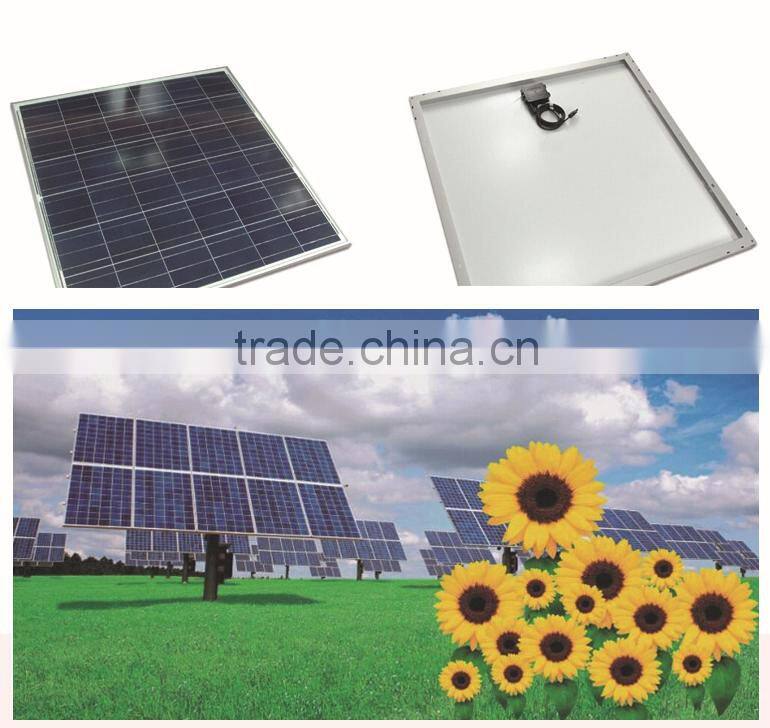

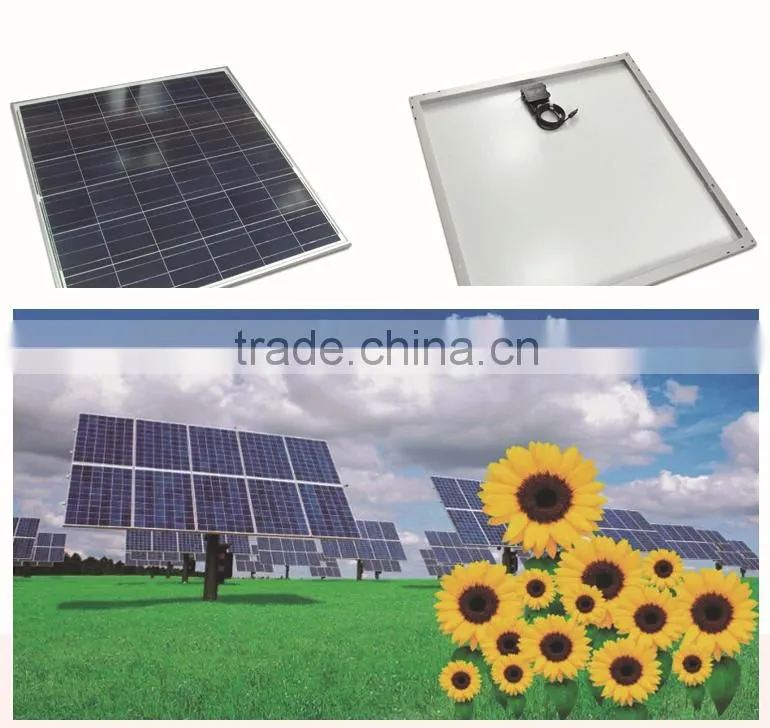

1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Resident systems.
4. Any commercial or industrial ground mounting systems 5. solar television, Solar power, solar heater, solar lights, Highway solar street lamp, solar car / electric vehicles, satellites, spacecraft, space solar power plant, energy saving lamp, the field of environmental protection.
