Specifications
Competitive Price Wood Drum Chipper Popular Abroad1.Automatic control
2.Low energy consumption
3.High Capacity
4.4 blad
CE Approved Slab Drum Wood Chipping Equipment
Product Information
Wood Drum Chipper ,one of the wood chipping machines, is the key equipment in wood processing.
The wood chipper includes engine base, kinfe roll, fluctuation feed roller, conveyer belt and hydraulic system.
According to customers' request, we can produce different specifications and thickness of wood chips by adjusting the chipping blades.
Note:With continuous and economical working procedure, low maintenance costs, high efficiency and high capacity, our wood chipper machine has been trusted and praised since they were put on the market.
Application
Wood Chipper is mainly used to chip the logs such as pine, poplar,tree stump, tree branches, small diameter wood, bamboo wood, slab, cotton stalk and other Non-wood fiber stems.
It is the ideal equipment in the papermaking industry, artificial board industry, pulping industry and fiber and weaving industry.
The size of the wood chips can be adjusted according to your needs.
Main Technical Parameter
Model |
XB215 |
XB216 |
XB218 |
BX2113 |
BX218D |
|
Blade Shaft Diameter (mm) |
300 |
650 |
800 |
800 |
1300 |
Quantity of Cutting Blade |
2 |
2 |
2 |
3 |
2 |
Inlet Size(mm) |
440*180 |
540*270 |
720*340 |
450*700 |
770*340 |
Spindle Speed(r/m) |
592 |
590/836 |
650 |
500 |
650 |
Feed Rate(m/min) |
38 |
37 |
37/25 |
38 |
38 |
|
Max Diameter of Raw Material(mm) |
160 |
230 |
300 |
450 |
300 |
Chip length(mm) |
30 |
30/22 |
30/20 |
38 |
30 |
Capacity(m3/h) |
4-6 |
7-9 |
12-15 |
15-30 |
15-20 |
Main power(kw) |
45 |
55 |
110 |
200-250 |
132 |
Power of feeder motor (kw) |
2.2-3 |
3-4 |
4-5 |
2-7.5 |
4-5.5 |
Power of oil pump motor (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
1.5*1 |
Weight (kg) |
3000 |
4170 |
7300 |
7600 |
7800 |
Overall size(mm) |
1540*1240*1020 |
1980*1950*1250 |
2670*2150*1500 |
2870*2250*1550 |
2670*2250*1500 |

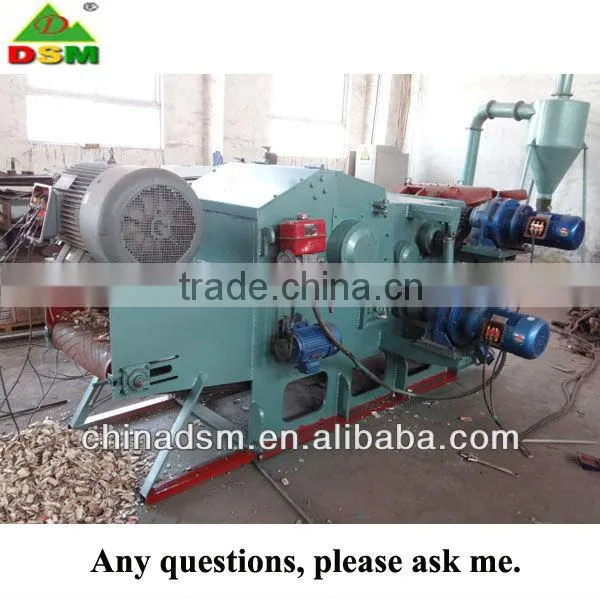

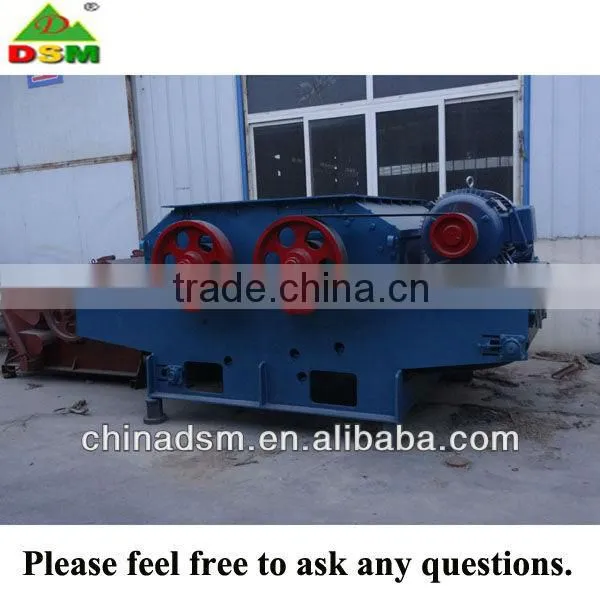

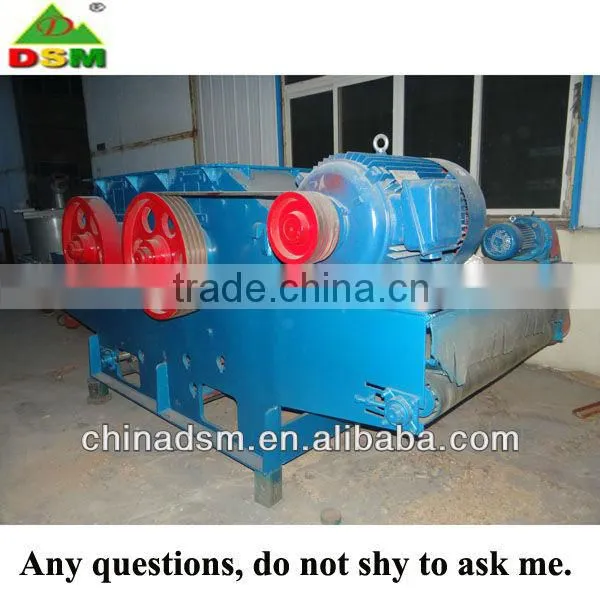

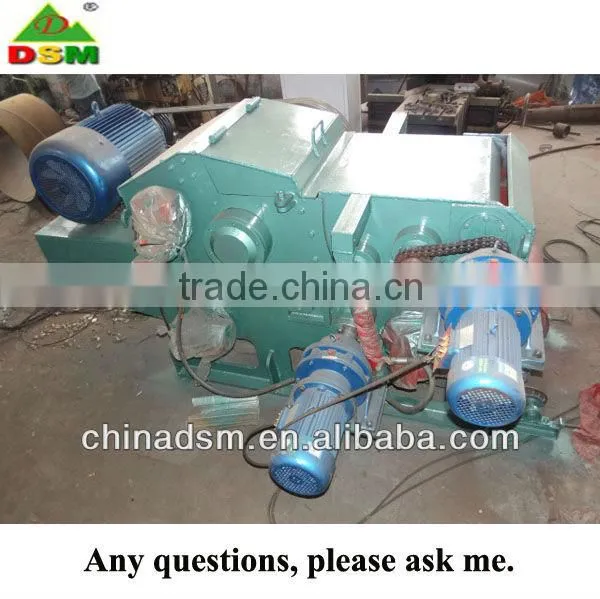

Pictures for your reference
