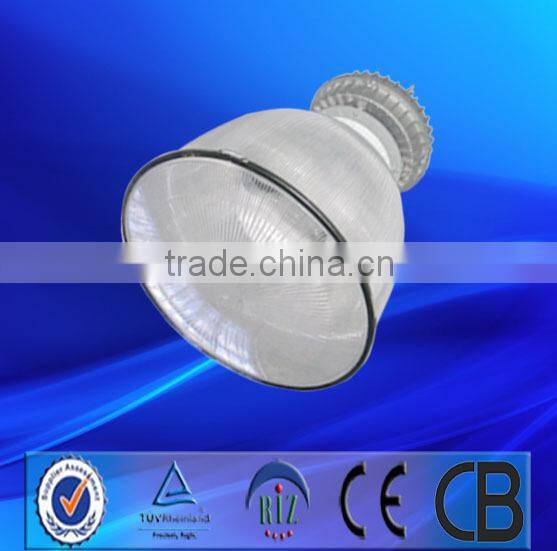

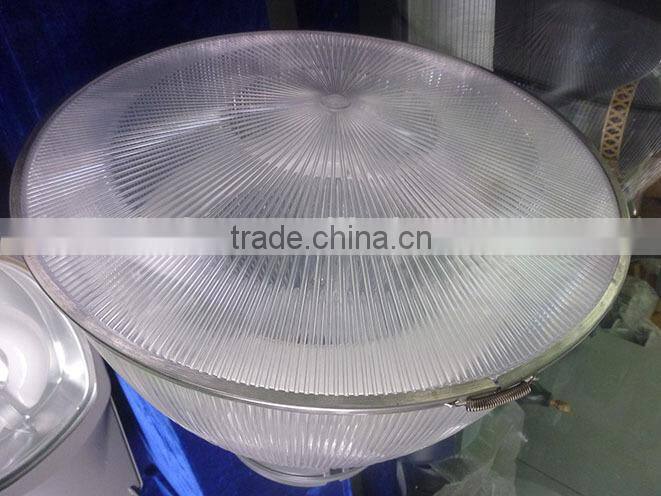

Aluminium ute canopy induction lamp high bay light

Aluminium ute canopy induction lamp high bay light

2. Extra aluminum reflector ensures high lighting efficiency;
3. Die casting aluminum lamp shell, solid, rustproof and durable;
4. High Temp. Resistant gas-tight silicon rubber seal;
5. Lamp and ballast set features with high power factors, excellent color rendering and stable output;
6. Protection for ballast from short-circuit, open-circuit and defective lamp.

Ballast and lamp tube are separated, which is good for  heat dissipation.

• 1) Obvious power-saving efficiency. Use Magnetic electrodeless (LVD lamp) light source. Compare with sodium lights, its energy-saving rate can be as much as 60% or more.
• 2)Environmentally friendly as induction lamps use less energy, and use less mercury per hour of operation than conventional lighting due to their long lifespan. The mercury is in a solid form and can be easily recovered if the lamp is broken, or for recycling at end-of-life.
• 3) Show the original color of the objects, High color rendering index reaches 80 Ra or above.
• 4) Working normally in wide voltage fluctuation. Working voltage: AC 90~150V &. 175~265V .
• 5)Instant on and hot restrike, unlike most conventional lamps used in commercial/industrial lighting applications (such as Mercury-vapor lamp, Sodium-vapor lamp and Metal halide lamp)
• 6)Operating temperature can be from minus 35 degree centigrade to 50 degree centigrade.
• 7) Easier to be installed and to be unloaded; Can be used in different places.
• 8) Excellent protection: all the ballasts are protected from short-circuit, open-circuit, abrupt cut-off, etc.

Applicant area:

Workshops, factories, storehouses, toll stations, gas stations, supermarkets, exhibition halls, gymnasiums, and some other places where need industrial lighting.

•  Induction lamp is an elcectromagnetic induction fluorescent lamp without filament and electrode. It belongs to the fourth generation of lighting source with LED. It avoids gas emitting by the discharge to decrease the uselife of lighting source, which makes its life increased significantly, reducing maintenance and replacement.
•  Matching the elctronic ballast with high and stable performance,compared to the other light souce, the use life of induction lamp has been significantly increased. Our company's RIZ induction lamp has both above advantages, as well as the application of high-quality fluerescent powder and sophisticated processing technology, high luminous efficiency, and low light decay.

 2. What are the methods of  judging if the lamp and ballast work properly?

•  Instrument detecting

Indicators of detection: voltage, current, power

Problem identifying:

1) Connecting the instrument, switching on the power, if voltage can read, circuit and power can not, it means ballast has been damaged;

2) Connecting the instrument, switching on the power, if the figures displayed of power and current are more larger than the nominal ones and the tube does not light properly, it means the tube has been damaged;

3) Connecting the instrument, switching on the power, if the lamp can displayed properly, however the figure displayed of the instrument is bigger than the rated one by 50% 10 to 30 minutes later, it means the tube has been damaged.

• Interchange detection

Detection method: Preparing a complete set of lamp and ballast to do interchange detection

Problems identifying:

1) Replacing by an intract ballast, switching on the power, if the lamp does not light, it means the tube has been damaged;

2) Replacing by an intract ballast, switching on the power, if the lamp is abnormal after lighting for 30 minutes, it means the tube has been damaged;

3) Replacing by an intract ballast, switching on the power, if the lamp can not start properly, it means the tube has been damaged.
