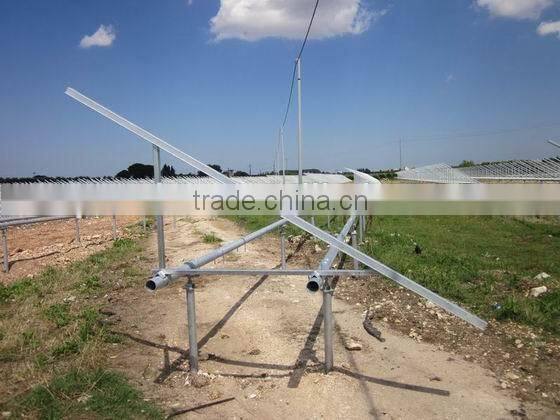

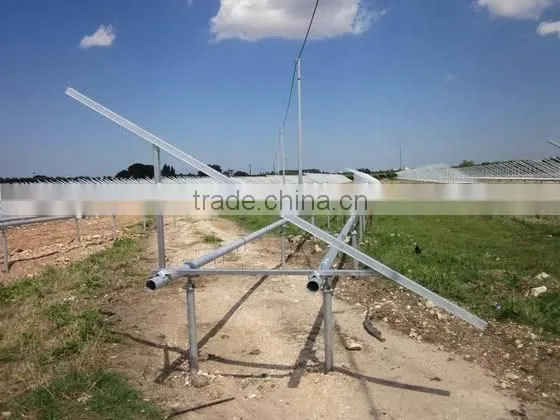

Ground Solar Mount Structure Galvanized Ground Screw for Solar Mounting Foundat

PVSolver solar mounting system is designed by professional engineer team.

Widely use for MW ground mounting solar system, fast installation and save labor cost.

Depends on the field conditions we come up different foundation design ,use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.

Only need simple tools, we can combine all mounting structure easily.

• Install site:Ground
• Tilt Angle:5-60deg
• System Height :<20m
• Max Wind Speed:<45m/s
• Snow Load:<1.2KN/m2
• Standard :Suit for AS/NZS 1170 and other international Standard
• Material: U-channel steel and aluminum alloy parts or SUS304 material
• Anticorrosive:Anodized aluminum & Hot galvanized U-channel steel
• Soil Condition: Anyway

Warranty:15 years warranty and 30 years service life

Features,

1, Easy & Fast Installation

2, Flexible post spacing withstands different wind & snow loads.

3, High quality material in HDG steel, Aluminium 6063-T5 and SUS 304.

4, Screws and nuts go with every components needed.

5, Mechanical calculation and reliability tested to ensure highest product quality.

6, 10 years system and structural guarantee

Package demand: Normal package seaworthy.

All the same type U-channels will be combined one pallet, and other small parts will be loaded into the carton packaging.

Designed accordng to customers' requirements, and provided all of mounting structure for customer to save cost.

When all material arrived at installation site, we'll provide tools and installation manual for free, ensure all workers can install mounting brackets easily.

We're the manufacturer of solar mounting system, specilizing in producing all parts by ourselves.

We have been doing solar mounting brackets for more than 3 years, complete more than 300 MW solar mounting brackets for solar plant and have many experiences on installing.

related  Certificate

factory

Reasons to choose PVSolver mounting system ,

• Design conformable to different project requirements
• Fast and cost effective installation, easy to be assembled on different area.
• Short in 7-25 days leading time according to acrtual quantities
• Wisely solutions for your solar PV projects

Which Datas need provide when inquiry,

Dear Buyer,

In order to help you get the right system, please offer the following necessary info.,

1. The dimension of the solar panel: _________(L*W*T)

2. Installation angle: __________

3. The overall size of the PV array:____________

4. The height of downside of PV module from ground: ____________

5. The order quantity for us to confirm delivery and shipping
