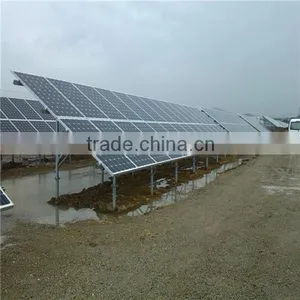

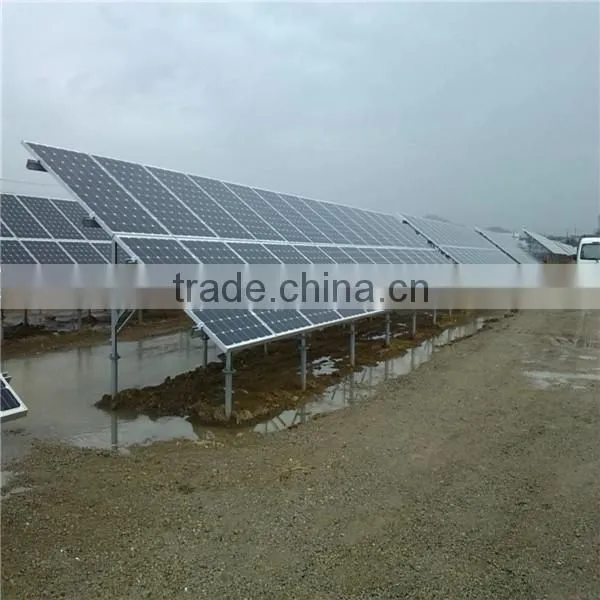

Help CenterPvsolver Ground Fixed Tilt Mounting Brackets
Related Products
-
Pvsolver Adjustable Solar Photovoltaic System Mounting Bracket Ground Solar Photovoltaic RackUS$ 0.17 - 0.19MOQ: 10 Sets -
Pvsolver Solar Panel Ground Mounting Bracket Concrete Ground pv MountingUS$ 0.07 - 0.08MOQ: 10 Sets
-
Aluminum Ground Solar Panel Mounting Bracket for Solar Panel Ground Solar Mounting StructureNegotiableMOQ: 10 Sets
-
Pvsolver Solar Panel Mounting Adjustable Angle Solar Panel on PoleUS$ 0.17 - 0.19MOQ: 10 Sets
-
Aluminium Frames of Photovoltaic Ground Modules Solar Mounting System for Solar PanelNegotiableMOQ: 10 Sets
PVSolver solar mounting system is designed by professional engineer team.
Widely use for MW ground mounting solar system, fast installation and save labor cost.
Depends on the field conditions we come up different foundation design ,use the suitable racking post to provide high strength and withstand wind and snow loads and save the labor cost.
Only need simple tools, we can combine all mounting structure easily.
- Install site:Ground/outdoor
- Tilt Angle:5-60deg
- System Height :<20m
- Max Wind Speed:<45m/s
- Snow Load:<1.2KN/m2
- Standard :Suit for AS/NZS 1170 and other international Standard
- Material: U-channel steel and aluminum alloy parts or SUS304 material
- Anticorrosive:Anodized aluminum & Hot galvanized U-channel steel
- Soil Condition: Anyway
Warranty:15 years warranty and 30 years service life

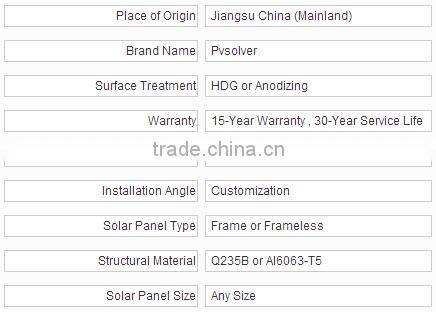

Specification:
Packaging & Delivery
Packaging Details: |
EPE film + Kraft Paper packing for more than 2.5meter, the cartons or plywood packing for less than 2.5meter, of course, the custom packing is available according to customer's requirement. |
Delivery Detail: |
7-25 days, according to customers' quantities , after received customer's deposits |
Adjustable Solar Ground Mounting Structure Detailed product description | |
Material |
aluminum alloy: 6063 T5/ Stainless Steel 304 |
Shape |
according to drawing and sample (square, angle, flat, T-profile, rotundity, oval, slot) |
Deep machining |
precise cutting, drilling, tapping, CNC milling, CNC lathe and so on. |
Surface treatment |
Sandblasting/anodized/HDG |
Specifications |
According to your design drawings and your samples |
Certification |
ISO9001-2008,CE |
Packaging Detail |
Export Standard Carton With Pallet,interleaving each profile to protect the surface |
Delivery Detail |
Delivery time :7--25 days after receive customer’s deposits |
|
Solar mounting profiles advantage in the field of photovoltaic applications |
|
Engineering specifications
Installation Site: Ground, Flat / Tilt roof, Tile roof, Vitreous tile, any suitable area
Installation Angle: Any degree
Snow Load: Up to 1.4 KN/m2 (40PSF)
Wind Load: Up to 36.9 m/s (150 km/h)
Wind Pressure: Up to 66.42 KG/m2
Features,
1, Easy & Fast Installation
2, Flexible post spacing withstands different wind & snow loads.
3, High quality material in HDG steel, Aluminium 6063-T5 and SUS 304.
4, Screws and nuts go with every components needed.
5, Mechanical calculation and reliability tested to ensure highest product quality.
6, 10 years system and structural guarantee
Designed accordng to customers' requirements, and provided all of mounting structure for customer to save cost.
When all material arrived at installation site, we'll provide tools and installation manual for free, ensure all workers can install mounting brackets easily.
About US
Our company is a manufacturer of solar mounting system with well-equipped testing facilities and strong technical force.
With best quality, cheapest price, prompt delivery and professional design, our products are extensively used in solar industry.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Reasons to choose PVSolver mounting system ,
- Design conformable to different project requirements
- Fast and cost effective installation, easy to be assembled on different area.
- Short in 7-25 days leading time according to acrtual quantities
- Wisely solutions for your solar PV projects
Which Datas need provide when inquiry,
Dear Buyer,
In order to help you get the right system, please offer the following necessary info.,
1. The dimension of the solar panel: _________(L*W*T)
2. Installation angle: __________
3. The overall size of the PV array:____________
4. The height of downside of PV module from ground: ____________
5. The order quantity for us to confirm delivery and shipping
We are specialized in solar mounting bracket for years.
My name is Frida,my contact information as follows:
Skype:fuchan2014
Whatsapp/WeChat:18262205206
QQ:2251839702
Tel:86+18262205206
Any questions,pls feel free to contact me.
Sample orders are acceptable,what are you waiting for???
Pls feel free to contact me,I'v been looking for you.
