CX-24 Vehicle Disinfection Channel

Name: CX-24 Vehicle Disinfection Channel
Brand: Longray
SKU: 112132449
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Longray

Model Number:

CX-24

American Longray Llc

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Longray

Model Number CX-24

Sprayer Type Knapsack

Material Plastic

Plastic Type PE

Usage Garden

Specifications

Direct from manufacturer. Full 2 year warranty. Truck-mounted ULV Aerosol generator

Feature

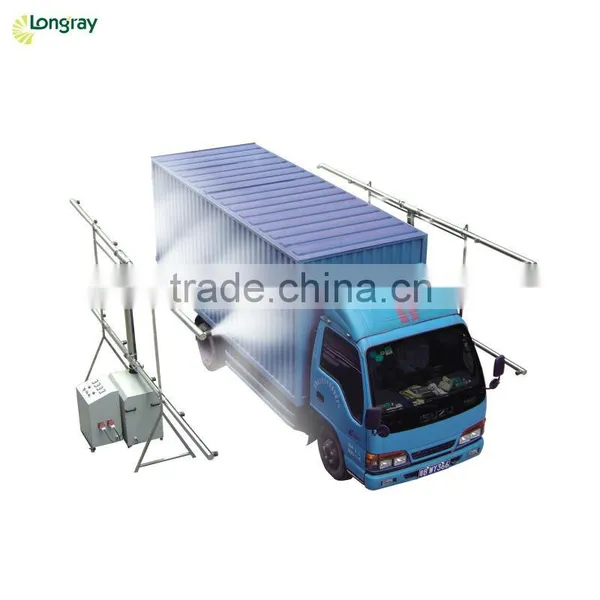

The CX-24 unit is designed to quickly, effectively disinfect transportation vehicle or people need go inside hygiene protection area, or go out from some contaminated area.
When the vehicle or people go through the channel, the infrared sensor will be activating, it will automatically start spraying for disinfection the target which go through the channel.
The units apply ULV spraying, it helps use less chemicals, shorten spraying time, save labor,
better and more effective disinfection.
The spraying angle, channel width are adjustable, can set the machine thoroughly spray all

angle, all area of the target.
Simple installation, when ship machine, we will supply the detail installation video, installation photo show customer in detail to install the machine, make sure no problem for customer, the machine will be packing into 4 packing carton for transport to customer.
We only choose the best production material, such as stainless to produce the stand, pipeline,control box.
We only choose best anti-corrosive material such as all seals, gaskets in contact with chemicals solution are made of Teflon and Viton.

Control mode: Can set manual or automatic control for set machine spraying,

Can set any required spraying time for disinfect the target.
The unit have been equipped with electric heating device, before use machine, the unit can

warm up the chemicals, ensure it do not frozen in very cold winter, such as use in Russia, after use, the machine will automatically discharge all residual chemicals inside the machine and all chemicals pipeline, make sure it does not freezing, so customer can convenient to use in next time.
The unit can be customized production according to customer requirement: Such as choose different motor AC voltage, motor power, nozzle No., spraying direction, flow rate, chemicals

tank capacity and other specification, etc.

More further requirement, please contact us discuss customize production for your requirement.

Application

Widely used in farm, pig house, cattle house, poultry house, customs border, transportation

center, airport…

Technical specification

Motor power 2.2 KW, AC 380V (220V, Optional)

Nozzle number 24

Flow rate 300 L/h

Standard Installation dimension 5600 × 5220 × 2782 mm (Optional)
