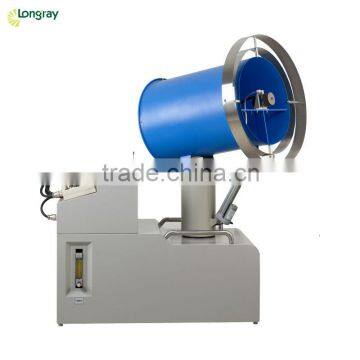

Truck-mounted ULV Cold Fogger

Specifications

Feature

• Battery powered motor, no shaking, low noise level, no pollution to environment.

• Produce excellent fine fog droplet, quick penetration and diffusion.

• Programmed spraying, simple operation, just need press down 1 button, machine automatically start spraying.

• Longer time battery electricity, can continuously spray more than 5 hours.

• Machine has been equipped with handcart, moving freely while spray, also can be mounted on truck, save labor, convenient spray.



Can automatically adjust fog head spraying direction

In horizontally: 0-180 degree

In vertically: 15-55 degree

• Save labor, avoiding work exposure to chemicals.

• Operation via control panel from driver cabin or carried by hand.

• Flow regulator controls solution output, can adjust get more precise flow rate and fog droplet.

• Capable of dispense all chemicals, even wettable formulations, no clogging.

Application

Used for public health protection, disinfection, vector control, pest control, crops protection,

Suit for spray both indoor and outdoor environment, such as theatre, stadium, shopping center,

transportation center, hospital, food processing plant, warehouse, livestock disinfection,

greenhouse, garden, etc.

Technical specification

Model:BWC-50

Electrical motor       600W, High-speed brushless motor

Power       Storage battery

Rating voltage of battery         24V

Rating current of battery         24A

Capacity of cell         80 AH, Optional

Control mode  Automatic control

Atomizing type         High pressure centrifugal fan

Spray droplet   90% of fog droplets <25 micron

Flow rate 0-50L/h, adjustable

Distance of spraying in horizontally         >29m

Air volume        >50 /minChemical tank   70L

Flush tank         4L

Adjustment of spraying angle 0-180 degrees in horizontal

15-55 degrees in vertical

Dimension (Lx W x H )      1110 x 900 x 1170 mm

Net weight       186 kg (Including battery)

Packing dimension   1380 x 860mm x 1560 mm

Packing weight         250 kg
