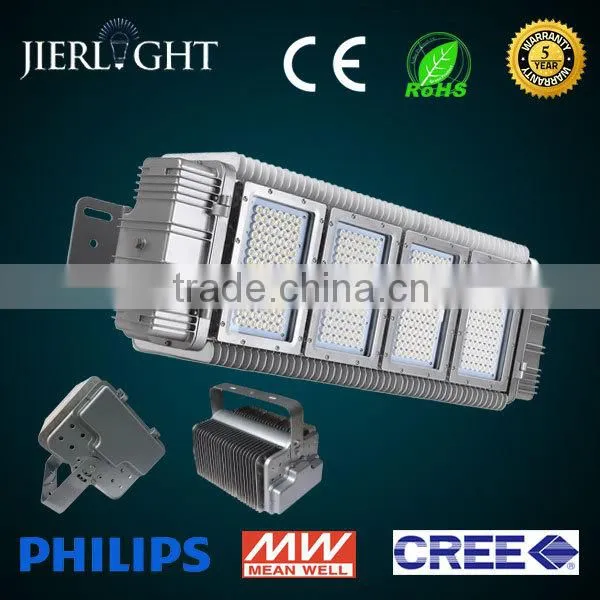

CE 800W for field hockey field lighting for outside project sex 800W for field hockey field lighting
1)Basi Info of 800W for field hockey field lighting
This series 800W for field hockey field lighting are designing for outdoor project using.
Advantage of led flood light as follow:
1. Using 120-130lm/W leds as the led source, in order to make best quality.
2. IP65 Meanwell driver inside install : PF>0.9, efficiency >0.9, 5 years warranty.
3. Special design alumninum housing IP65 for outdoor use.
4. Wide beam angle: 15/30/60/60*135 /85*135 ° as options for football lighting, golf field lighting,tennise lighting,basketball field lighting........
5. High lumens: >100lm/W
6. 5years warranty for project
Power |
800W led floodlight |
Voltage |
85-305V |
Size |
952*486*340mm |
Lumens |
78000lm |
CCT |
6000-6500k |
CRI |
>Ra70 |
Ip Grade |
IP65 |
Led Driver |
Meanwell |
Warranty |
5 years |
Dimensions of 800W for field hockey field lighting led:unit (mm)
Test report of 800W for field hockey field lighting
Flux out of 800W for field hockey field lighting
Beam angle of 800W for field hockey field lighting could options
Driver of 800W for field hockey field lighting
All outdoor 800w tunnel led use Taiwan Meanwell driver HLG series
1. high-performance
2.5years warranty
3.IP65
LED source of 800W for field hockey field lighting
1. outdoor 800w tunnel led 120-130lm/w use Philips-rebel es or CREE-XBD Leds
2.Many beam angle could operate :Lens:15/30/60/65*135/85*135°
3.Ra>70
Heat sink of 800W for field hockey field lighting
1.with many patents,new style fin heat sink make it lighter and the heat dissipation faster.
2.the two drivers are on the two sides of the heat sink. it's easy to replace the driver. don't need to take down the whole light. what's more, the drivers won't be affected by the hot air from the heat sink. So it is with longer lifespan.
3. IP65,you can use it outdoor as the projector light
Process about 800W for field hockey field lighting
Packing of 800W for field hockey field lighting
Installation of 800W for field hockey field lighting
1. installation instructions
2. Installation note
1>Do not forget to cut off the power and make sure that the installation board can bear the
weight of the light
2> Make sure the right way of installation in case of falling off
3>Do not use it in the place where the corrosive air exists
4>Do not cover anything on the light
5> Remember to connect the earth wire for safety
6>The 5 year warranty begins the date you buy it
7>If in the event of failure caused by disassembling, renovating or improper installation,it’s not
in the range of warranty.
2.Pls confirm where you install before you make your order.
DIALux of 800W for field hockey field lighting for stadium lighting
We have professional engineer to design the lighting case for you.
IES and DIALux design free
Application of 800W for field hockey field lighting
For outdoor 800W for field hockey field lighting, used to lighting architecture ,industrial area, factory, gym,
garden, sea ports and so on.
