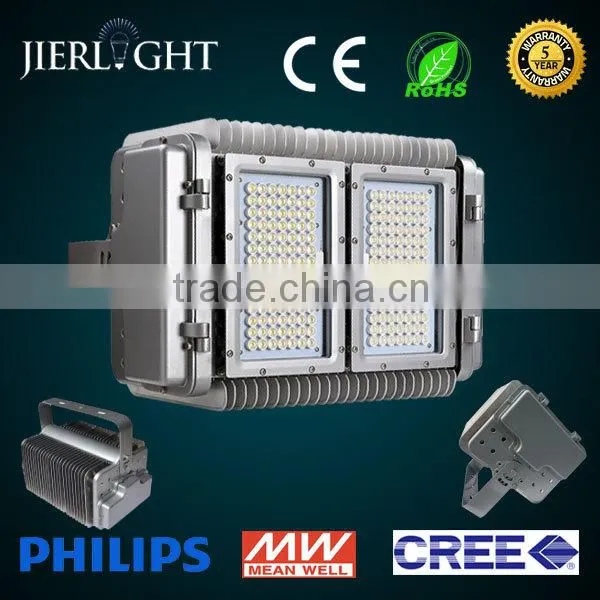

5Years luminous efficiency flood light, IP65 luminous efficiency flood light & Samsung luminous efficiency flood light
Specification of luminous efficiency flood light
| Power | 400 watt |
| Voltage | 90-305V |
| Size | 486*340*404mm |
| LED | 120 -130lm/w(CREE/PHILIPS/Samsung) |
| Lumens | 41000lm |
| CCT | 6000-6500k |
| CRI | >Ra70 |
| Ip Grade | IP65 |
| Led Driver | Meanwell |
| Warranty | 5 years |
| Weight | 16.5kg |
| Packing | 526*390*326mm |
Dimension of luminous efficiency flood light
Test report of luminous efficiency flood light
Beam angles could options of luminous efficiency flood light
Driver of luminous efficiency flood light
All outdoor 400 watt led flood light use Taiwan Meanwell driver HLG series
1. high-performance
2.5years warranty
3.IP65
4. Two 240W HLG meanwell drivers on the two sides of the heat sink. it's easy to replace the driver. don't need to take down the whole light. what's more, the drivers won't be affected by the hot air from the heat sink. So it is with longer lifespan.
LED source of luminous efficiency flood light
luminous efficiency flood light use 120-130lm/w Philips-rebel es,Samsung leds or CREE-XBD Leds
Heat sink of luminous efficiency flood light
1.luminous efficiency flood light with many patents,new style fin heat sink make it lighter and the heat dissipation faster .
2. luminous efficiency flood light use two 240W meanwell drivers on the two sides of the heat sink. it's easy to replace the driver. don't need to take down the whole light. what's more, the drivers won't be affected by the hot air from the heat sink. So it is with longer lifespan.
3.IP65,you can use it outdoor as the projector light
4.Use stainless steel project screws to fix the shell.
5. Oxidation resistance,anti-corrosion
Produce process about luminous efficiency flood light
Installation notice luminous efficiency flood light
1. Installation notice
1>Do not forget to cut off the power and make sure that the installation board can bear the
weight of the light
2> Make sure the right way of installation in case of falling off
3>Do not use it in the place where the corrosive air exists
4>Do not cover anything on the led flood light
5> Remember to connect the earth wire for safety
6>The 5 year warranty begins the date you buy it
7>If in the event of failure caused by disassembling, renovating or improper installation,it’s not
in the range of warranty.
8> dimensions of bracket and bolts for your reference.
2.Pls confirm where you install before you make your order.
Application of luminous efficiency flood light
For outdoor lighting, such as architecture ,industrial area, factory, gym, garden, sea
ports and so on.
Lamp testing at night of luminous efficiency flood light
Factory ageing of luminous efficiency flood light
Project effect of luminous efficiency flood light
Thanks for your time to read luminous efficiency flood light
We also could provide you more powerful led flood light if you need:400-1000W
