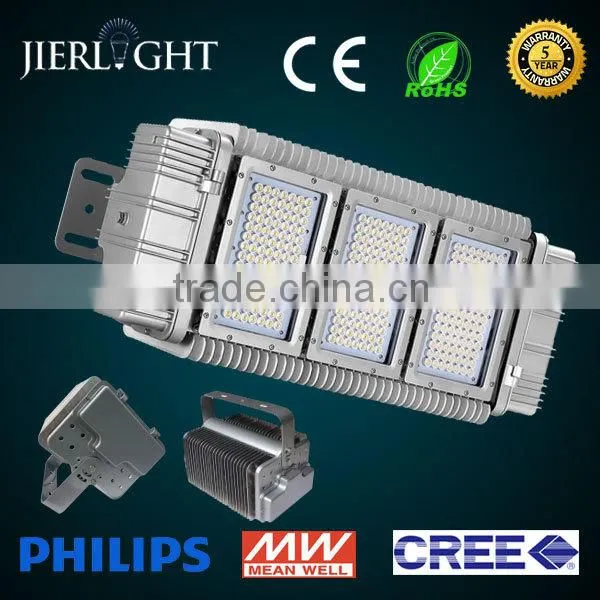

CE 600W flood lighting passed tuv sex 600W flood lighting
1)Basi Info of 600W flood lighting
This series 600W flood lightingare designing for outdoor project using.
Advantage of 600w led floodlight as follow:
1. Using 120-130lm/W leds as the led source, in order to make best quality.
2. IP65 Meanwell driver inside install : PF>0.9, efficiency >0.9, 5 years warranty.
3. Special design alumninum housing IP65 for outdoor use.
4. Wide beam angle: 15/30/60/60*135 /85*135 ° as options for football lighting, golf field lighting,tennise lighting,basketball field lighting........
5. High lumens: >100lm/W
6. 5years warranty for project
Power |
600W |
Voltage |
85-305V |
Size |
666*486*340mm |
Lumens |
60000lm |
CCT |
6000-6500k |
CRI |
>Ra70 |
Ip Grade |
IP65 |
Led Driver |
Meanwell |
Warranty |
5 years |
Dimensions of 600W flood lighting:unit (mm)
Test report of 600W flood lighting
Flux out of 600W flood lighting
Beam angle of 600W flood lighting could options
Driver of 600W flood lighting
All 600w led flood lights use Taiwan Meanwell driver HLG series
1. high-performance
2.5years warranty
3.IP65
LED source of 600W flood lighting
1. outdoor led floodlight 120-130lm/w Philips-rebel es or CREE-XBD Leds
2.Many beam angle could operate :Lens:15/30/60/65*135/85*135°
3.Ra>70
Heat sink of 600W flood lighting
1.with many patents,new style fin heat sink make it lighter and the heat dissipation faster.
2.the two drivers are on the two sides of the heat sink. it's easy to replace the driver. don't need to take down the whole light. what's more, the drivers won't be affected by the hot air from the heat sink. So it is with longer lifespan.
3. IP65,you can use it outdoor as the projector light
Process about 600W flood lighting
Packing of 600W flood lighting
Installation of 600W flood lighting
1. installation instructions
2. Installation note
1>Do not forget to cut off the power and make sure that the installation board can bear the
weight of the light
2> Make sure the right way of installation in case of falling off
3>Do not use it in the place where the corrosive air exists
4>Do not cover anything on the light
5> Remember to connect the earth wire for safety
6>The 5 year warranty begins the date you buy it
7>If in the event of failure caused by disassembling, renovating or improper installation,it’s not
in the range of warranty.
2.Pls confirm where you install before you make your order.
DIALux of 600w 600W flood lighting for stadium lighting
We have professional engineer to design the lighting case for you.
IES and DIALux design free
Application of 600W flood lighting
For outdoor 600w led flood lights, used to lighting architecture ,industrial area, factory, gym,
garden, sea ports and so on.
Please do not hesitate to contact me if you need more information about 600W flood lighting
