Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > GDOU8010 3in1 Multi-function Optical Node

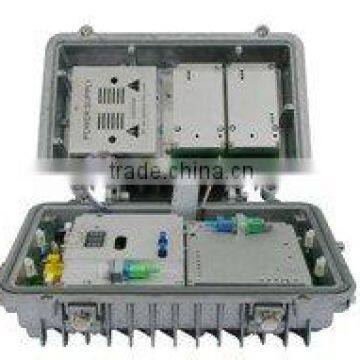

GDOU8010 3in1 Multi-function Optical Node

Name: GDOU8010 3in1 Multi-function Optical Node
Brand: Lootom
SKU: 112121881
Availability: InStock

GDOU8010 3in1 Multi-function Optical Node thumbnail-1

GDOU8010 3in1 Multi-function Optical Node photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

GDOU8010

Contact Supplier Request Quote Chat Now

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number GDOU8010

Specifications

available module: 1 ONU module, 2 EOC module,1 receiver module,1 power module
2 RF outputs
60V or 220V available
112dBuV out

Item	unit	description	remark
Bandwidth	MHz	2~860	Upgrade to 1G
Return Loss	dB	>18
RF Isolation	dB	>65
RF Test Point	dB	-20±0.5
RF Connector		“F” connector	Two RF Connectors
Work Voltage	Vac	60 or 220
Power Consumption	W	30	Bi-directional
Operation Temperature	°C	-40~+65
Operation Humidity		10%~95%
Dimension	mm	470×250×180
Weight	Kg	3

Forward Optical receiving Unit

Item		Unit	Description	Remark
Optical	Wavelength	nm	1290~1560
	Connector Type		FC/APC or SC/APC
	Received Power Range	dBm	-6~+2
	Received Power Voltage	mW/V	1.0±10%
RF	Frequency Range	MHz	47~860
	Response Flatness	dB	±0.75
	RF Port		1~2	Splitter/distribution optional
	Output Level	dBuV	112	High level, single output port
	Output Impedance	Ω	75
	Gain Adjustment Range	dB	0~20	1dB step or continuously
	Slope Adjustment Range	dB	0~18	3 dB step
	Output Return Loss	dB	>16dB	@860MHz
	C/N	dB	>46	Received power -6dBm, single output 108dBuV, 9dB equilibrium
	CTB	dB	>67
	CSO	dB	>62
	Power Voltage	Vac	220 or 60
	Work Temperature	°C	-25~+55
	Storage Temperature	°C	-25~+65

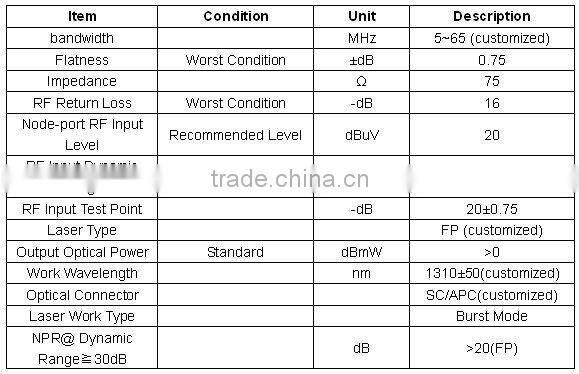

GDOU8010-B Burst Reverse Transmitter

GDOU8010-B Burst Reverse Transmitter can be installed on the GDOU8020,8010 series multi-function Node, apply to advanced high-speed data services in HFC network. “Burst” mode, use time-division multiplexing technology (TDM) which is same as CMTS to control the Node`s “burst”, achieve at any time, only allows one Node maintain communication with CMTS head-end, greatly improve the intrusive noise.

Features
